Pc Pp Pe Hollow Grid Sheet Production Line plastic Extrusion Machine Hollow Grid Sheet Making Machine

Introducing, the PC PP PE Hollow Grid Sheet Production Line plastic Extrusion Machine, the ultimate solution for creating durable and lightweight hollow grid sheets for all your packaging and construction needs. This state-of-the-art Hollow Grid Sheet Making Machine is designed and manufactured by SEVENSTARS MACHINERY, a leading name in the field of plastic extrusion technology.

The PC PP PE Hollow Grid Sheet Production Line is perfect for producing a range of hollow grid sheets made from different materials including polycarbonate (PC), polypropylene (PP), and polyethylene (PE). These sheets are strong, resilient, and have excellent chemical resistance properties, making them ideal for a range of applications.

Using the latest extrusion technology, this machine is specifically designed to create hollow grid sheets with a variety of thicknesses and sizes. The production line includes several key components that work cohesively to produce high-quality hollow grid sheets including an extruder, a screen changer, a die head, a vacuum calibration table, and a cutting machine.

The extruder is the heart of this production line and is responsible for melting the raw materials into a molten state before extruding them through a die to form the hollow grid sheets. The screen changer is responsible for filtering any impurities in the raw materials, ensuring that only the highest quality materials are used during the production process.

The die head is responsible for shaping the molten material into the desired hollow grid sheet size and thickness. This crucial component ensures that the final product is accurate and meets the strict quality control standards of SEVENSTARS MACHINERY.

Once the hollow grid sheets are formed, they move onto the vacuum calibration table. This component is responsible for cooling the sheets and ensuring that they maintain their shape and structural integrity. Finally, the sheets move onto the cutting machine, which cuts the sheets to the desired size and length.

The PC PP PE Hollow Grid Sheet Production Line plastic Extrusion Machine delivers unmatched versatility and flexibility, allowing users to create custom hollow grid sheets suited to their unique needs. Whether you're looking to create sheets for packaging, greenhouses, or construction, this machine has you covered.

So, why settle for anything less when you can choose the industry leading PC PP PE Hollow Grid Sheet Production Line plastic Extrusion Machine from SEVENSTARS MACHINERY? Invest in this high-quality, reliable and efficient machine today and take your production capabilities to the next level

Product Description

Detailed photo

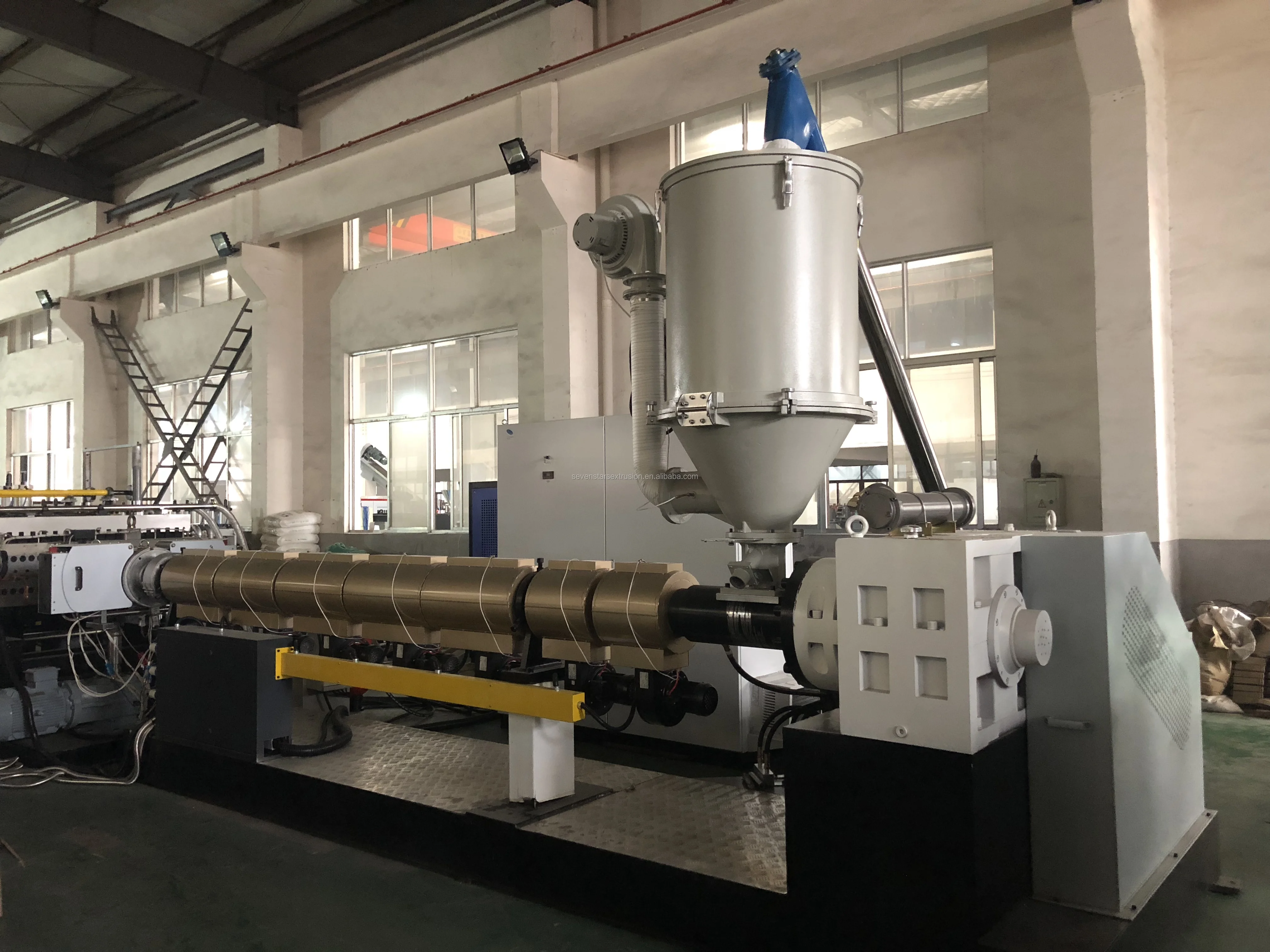

Single screw extruder machine

Filter changer for recycling material

Melt pump for balancing material pressure in the mold

High speed extrusion mold

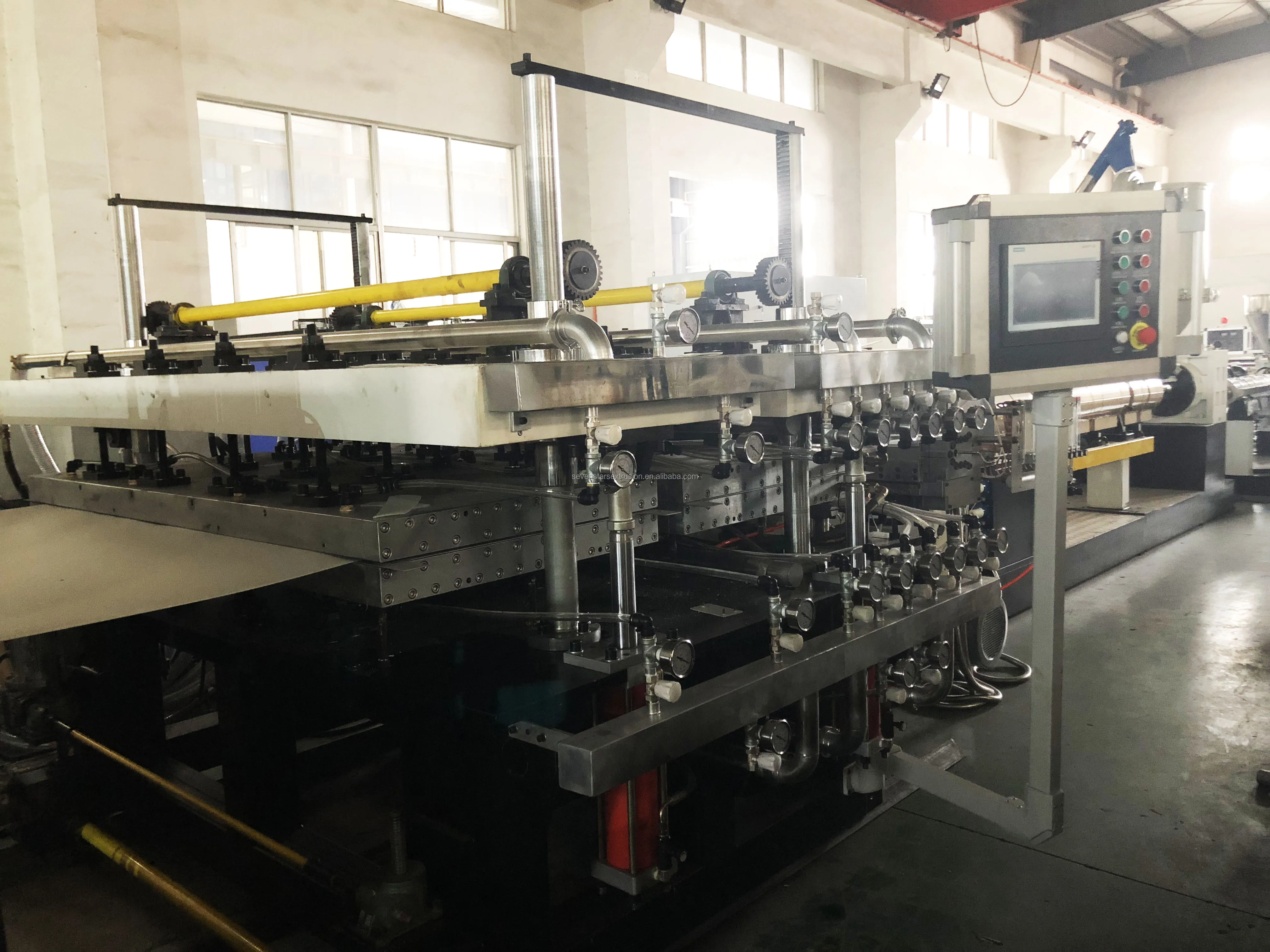

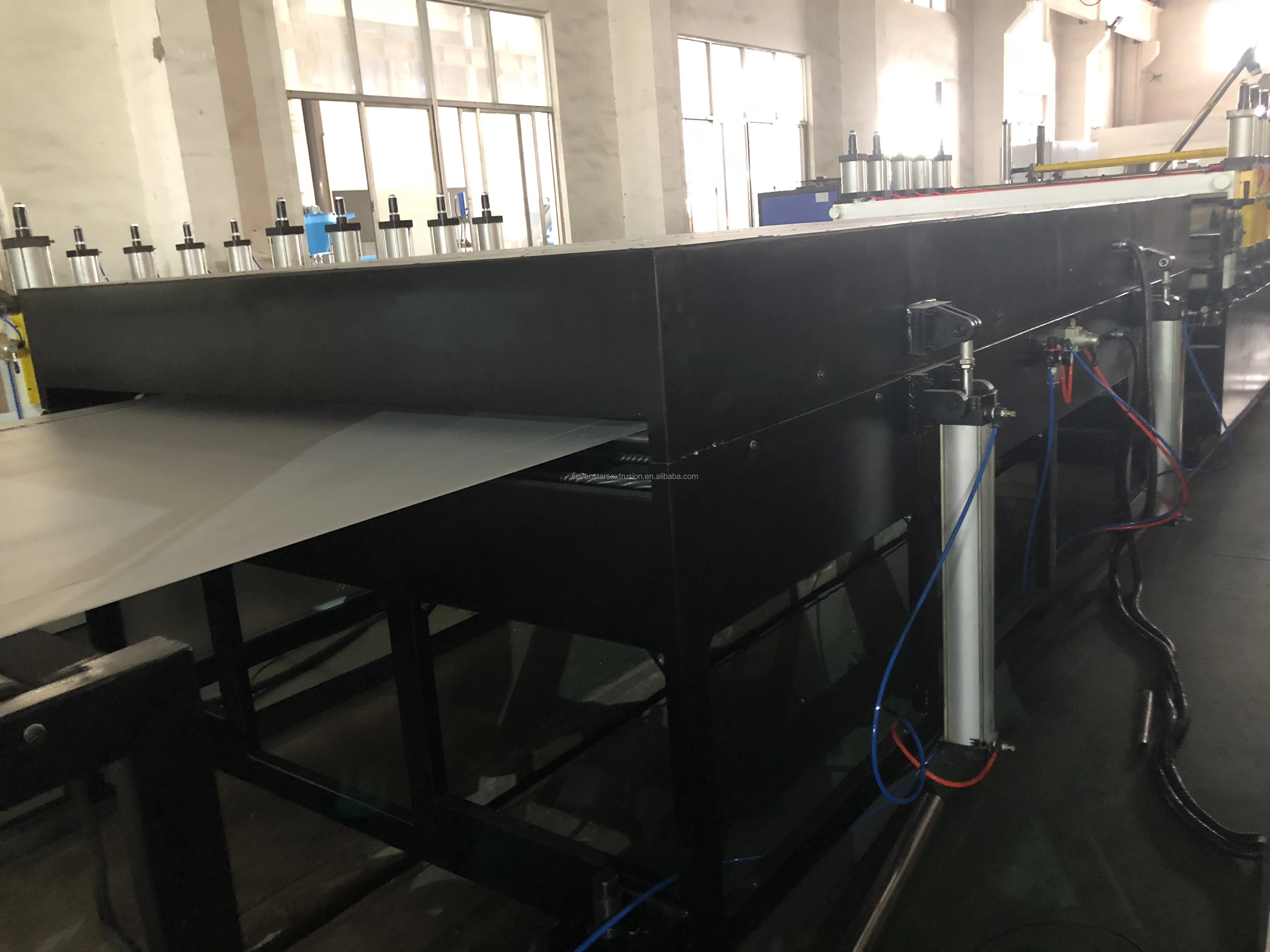

Calibration plate for forming sheet

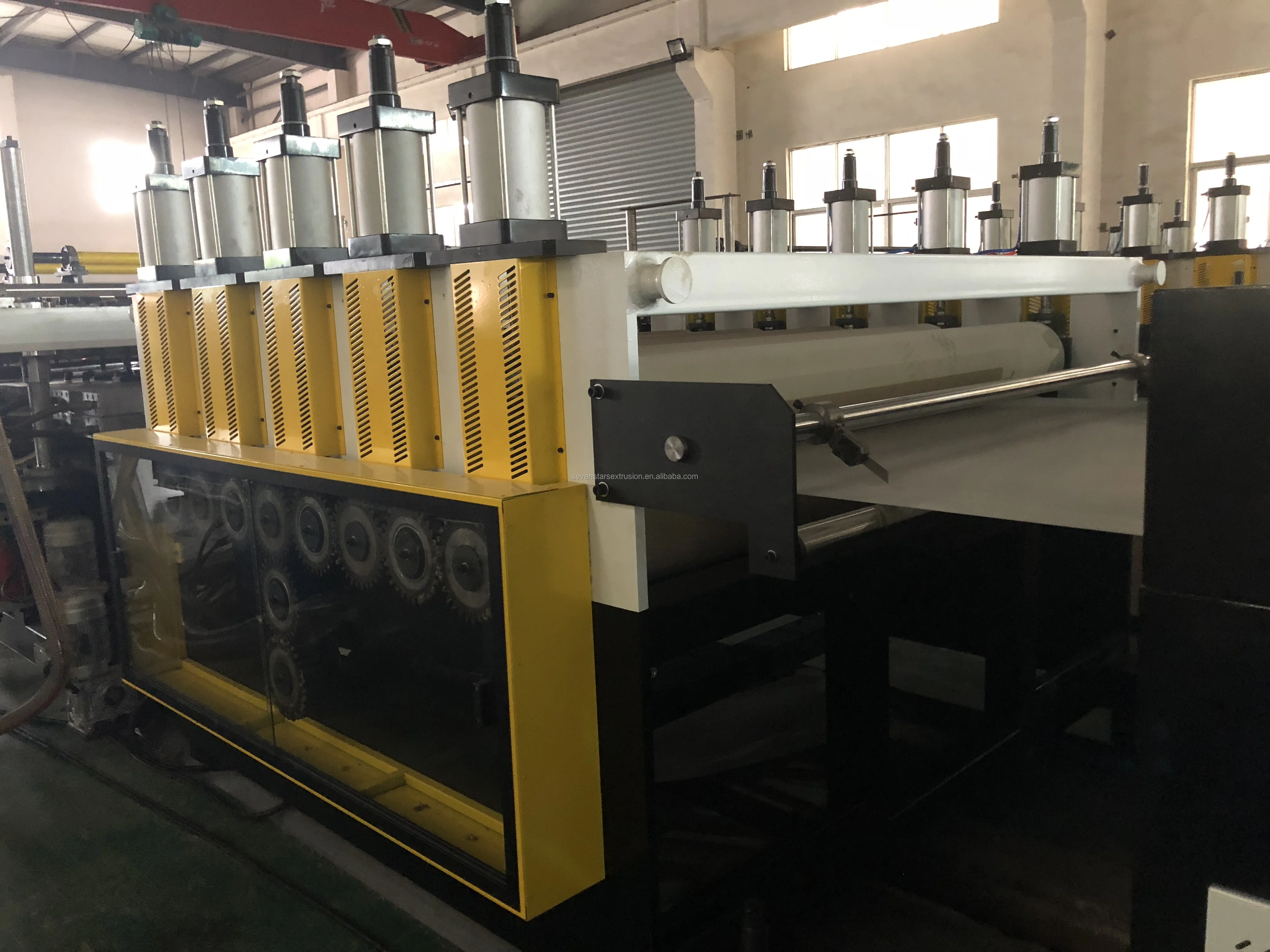

First haul off machine

Cooling table and corona device

Second haul off machine

Cutting machine

Conveying platform

Products Description

A. Process flow for PP PC hollow sheet extrusion production line

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder (depend on instrusion of the sheet)→Hydraulic screen change(optional) →melt pump → T-die →Vacuum calibrator forming machine →First Hause off unit →Anneal oven →Cooling bracket →Double side Corona treatment device(optional)→Second haul off unit →Cross cutter and transmission unit→Collect table

B. Characteristics

* Capacity: single screw extruder, suitable to process PP PC resin with high capacity, max 800kg/h. width: from 1220 to 2500mm
* Adopts reasonable design, absorbing safe producing technology, acquiring CE certificate

C. Description

   The PC hollow sheet production line/PE hollow sheet production line /PP hollow sheet production line is applicable to produce PC, PP, PE hollow profile board. The products is used widely for building, decorating, advertisement laying, road noise isolation, roofing and packing. PP hollow profile board can instead of carton which have feature like light weight, high strengthen, moisture-proof, antisepsis. Machine part detailed introduction of PC hollow sheet production line/PE hollow sheet production line /PP hollow sheet production line

1. The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled.

2. High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; output capacity is 25% higher than other brand extrusion lines. because of special design of forming plates.

3. Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate.

4. Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines.

5. The softness of pull rolls could be customized on request to extend its stretch.

6. The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines.

7. Unique T-Die made by JC Times is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape.

8. Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement. High percentage of recycled flakes could be mixed with the virgin materials

Specification

Extruder	SJ100	SJ120	SJ150
Max Sheet Width	1220mm	2100mm	2800mm
Sheet thickness	2-10mm	2-25mm	2-25mm
Max output	200kg/h	350kg/h	600kg
Extruder motor power	75KW	132KW	185KW

Product packaging
