Multi-Layer SPC Flooring Making Machine/LVT Vinyl Plank Floor Production Line

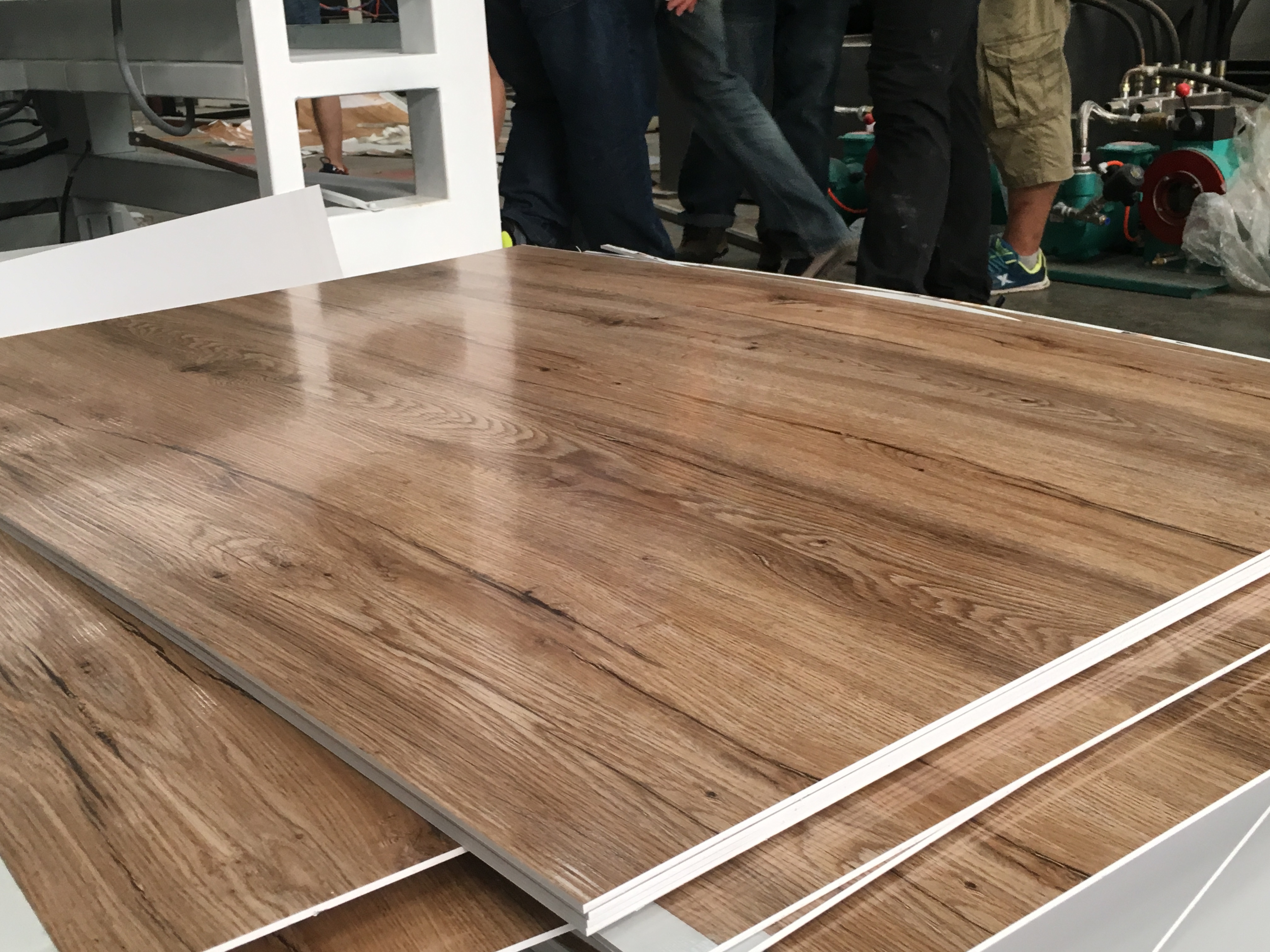

SPC Flooring Features

SPC stone plastic flooring have feature on zero formal-dehyde, mildew proof, moisture proof, fire resistance, moth proof and easy installation and so on. With excellent stability and durability, SPC flooring have solved the problem of nature wood flooring deformation problems, but also solve the formal-dehyde problem of other decorative materials, it has many colors and patterns to choose, which suitable for indoor flooring decoration in hotel and hospital shopping malls and other public places. And compared with WPC flooring, SPC stone flooring' production process is simple and cheap cost

SPC Flooring Machines Features

1. Patent Design on base of over 10 years' sheet extrusion and lamination production experience, SPC Flooring production line will be energy saving, high efficient and stable.

2. The embossing roller replacement be easier.

3. Easy operation and maintenance and QC checking, and working with high safety

4. Compare with other companies' machine, our online lamination system make the wearing layer have better plasticization and more peel strength on product surface.

5. Pattern film and wearing film can connect, which make no waste during change winders.

6. Suitable for special SPC flooring formulation, with good performance on shrinkage and bending.

7. Equipped with embossing tracking system to make sure depth of embossing be even all the time.

8. Make special design for SPC flooring production and offer turnkey project

Specification

Item	SJSZ 65/132	SJSZ 80/156	SJSZ 92/188
Screw Diameters(mm)	65mm/132mm	80mm/156mm	92mm/188mm
L/D Ratio	22:1/25:1	22:1/25:1	22:1/25:1
Output(Kg/h)	160-200	250-350	400-500
Main Driving Power(kw)	37	55	110
Heating Powder(Kw)	4 zones, 20Kw	5 zones, 38Kw	6 zones, 54Kw
Compressed air consumption(m3/h)	0.5	0.6	0.8

Extrusion Part

No	Machine Name			Quantity
1	Mixing Machine For PVC and Calcium powder			1set
2	Feeding Machine For Mixing Machine			1set
3	Automatic Feeding Machine For Extruder			1set
4	SJSZ 92/188 Conical Twin Screw Extruder			1set

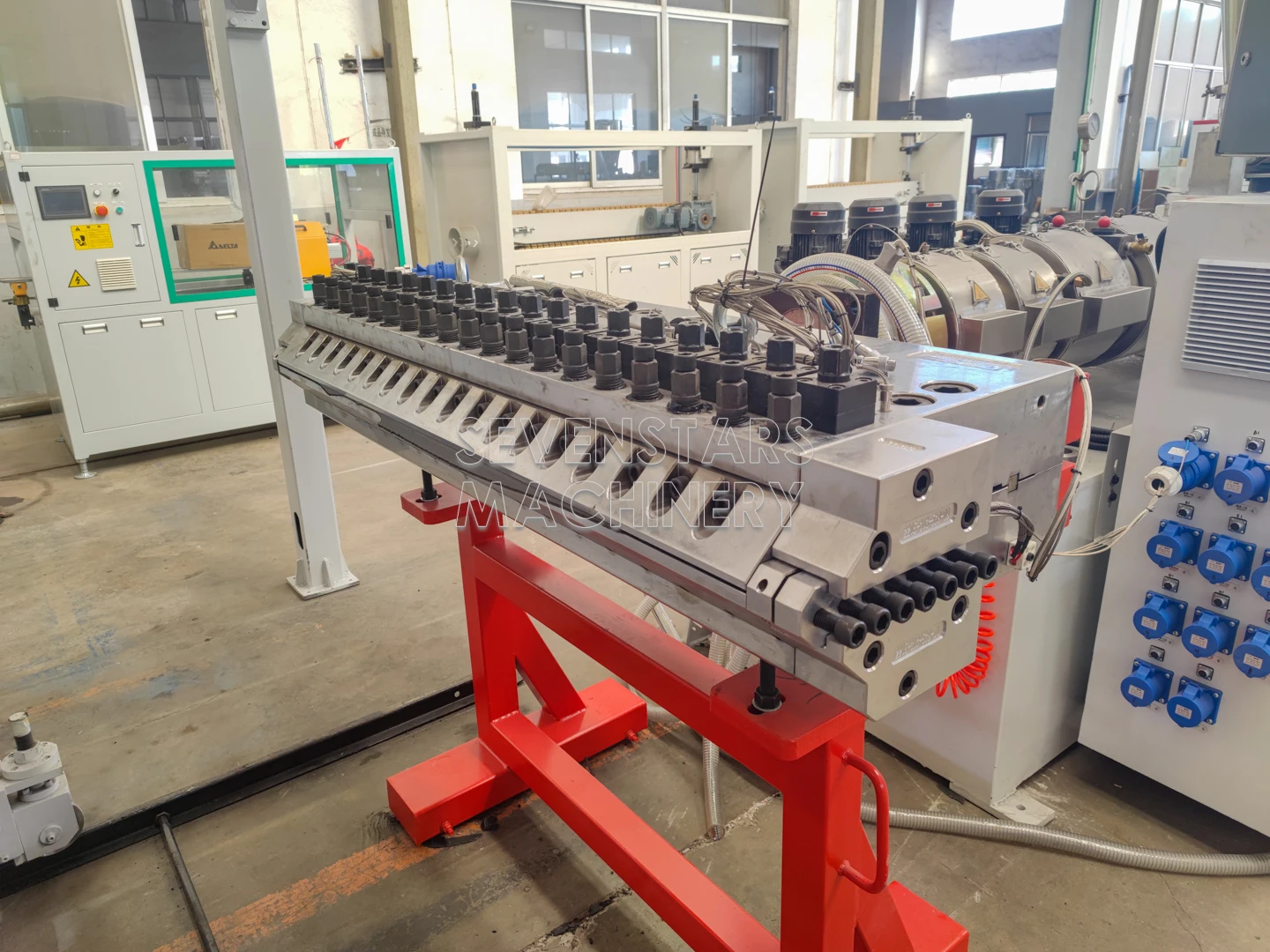

5	T-shaped Mould and Die			1set

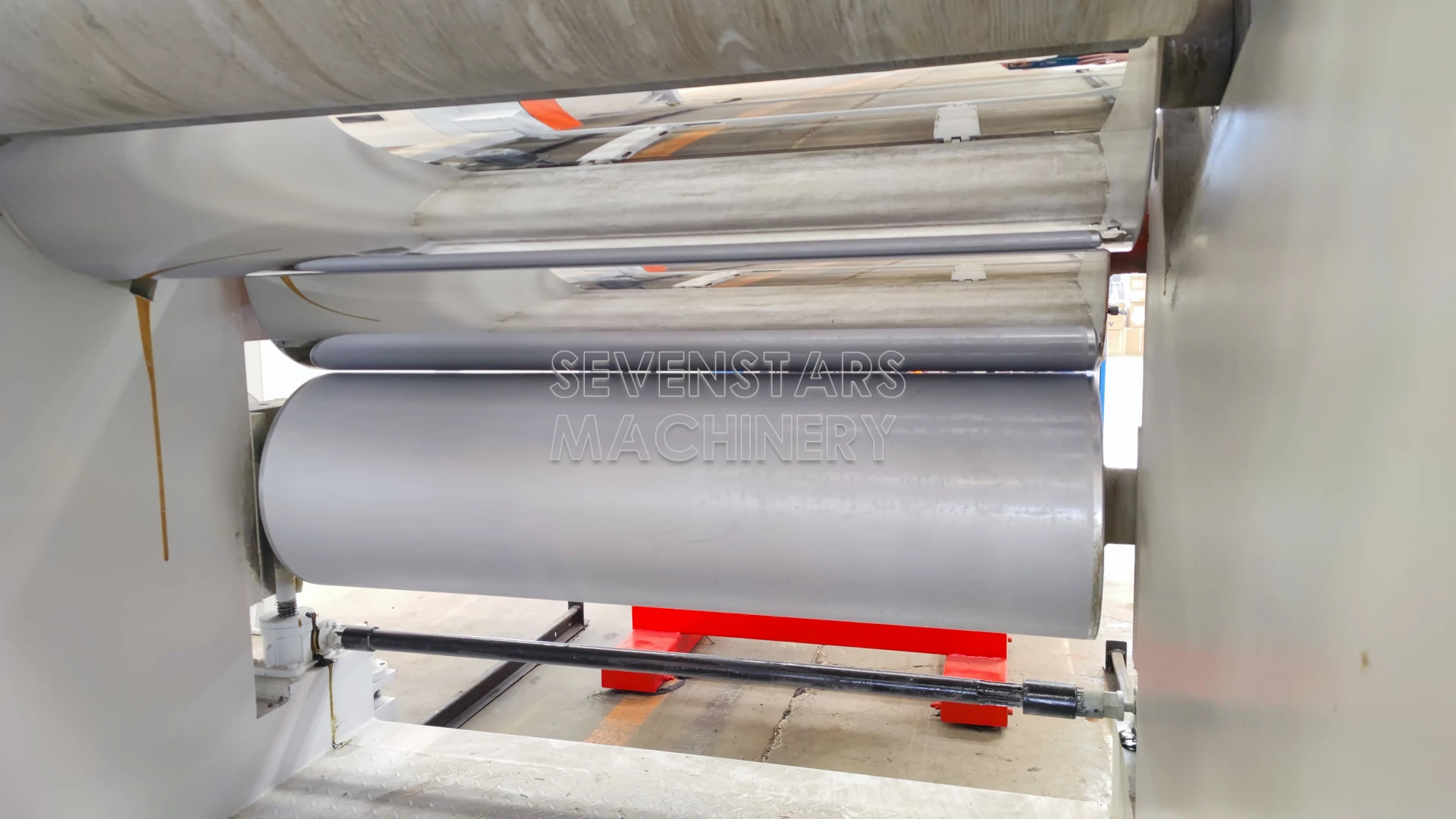

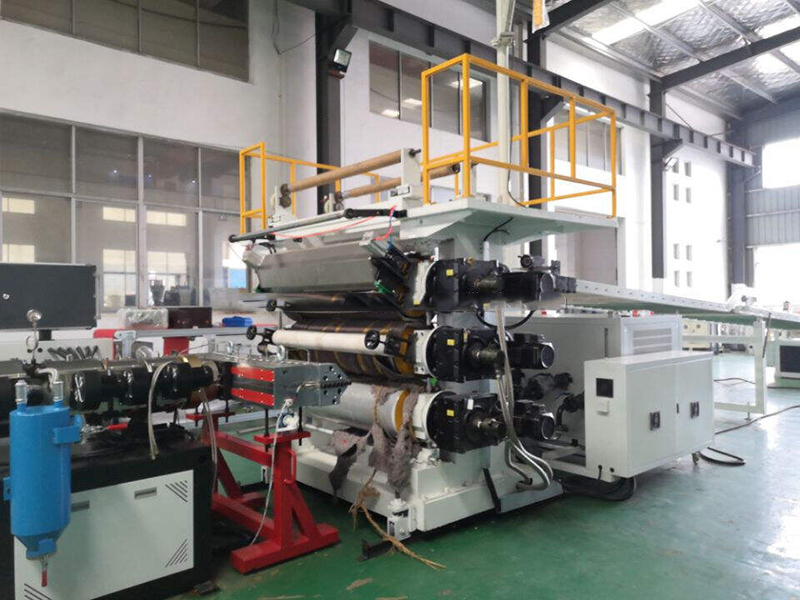

6	Four-roll Calender			1set
7	Cooling Frame			1set
8	Trimming Set			1set
9	Hauling Device			1set
10	Automatic Cutting Machine			1set

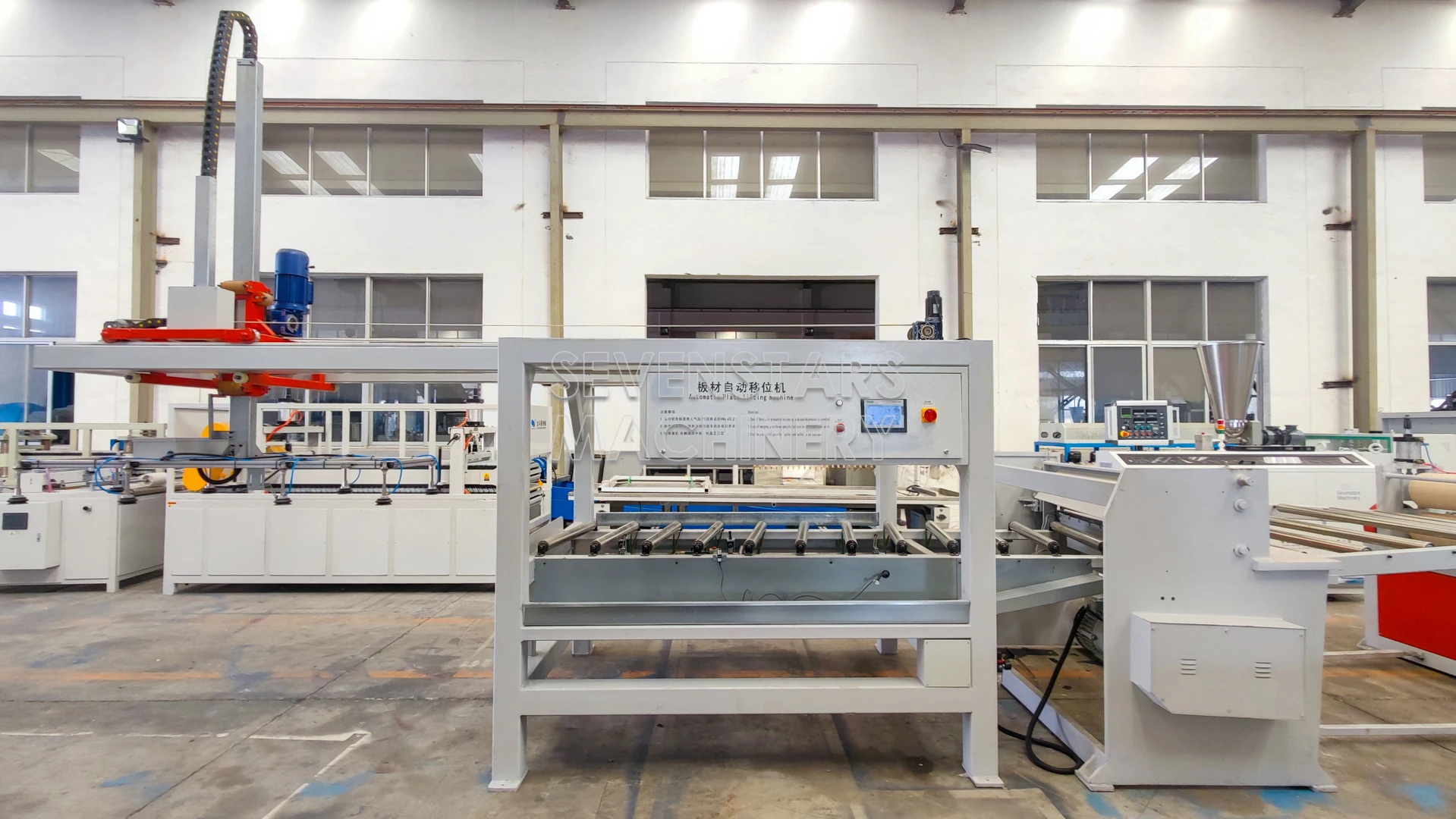

11	Stacking Section			1set

Detailed Images
