Corrugated Anti-Aging PVC Plastic wave roof tile sheet extrusion Machine line

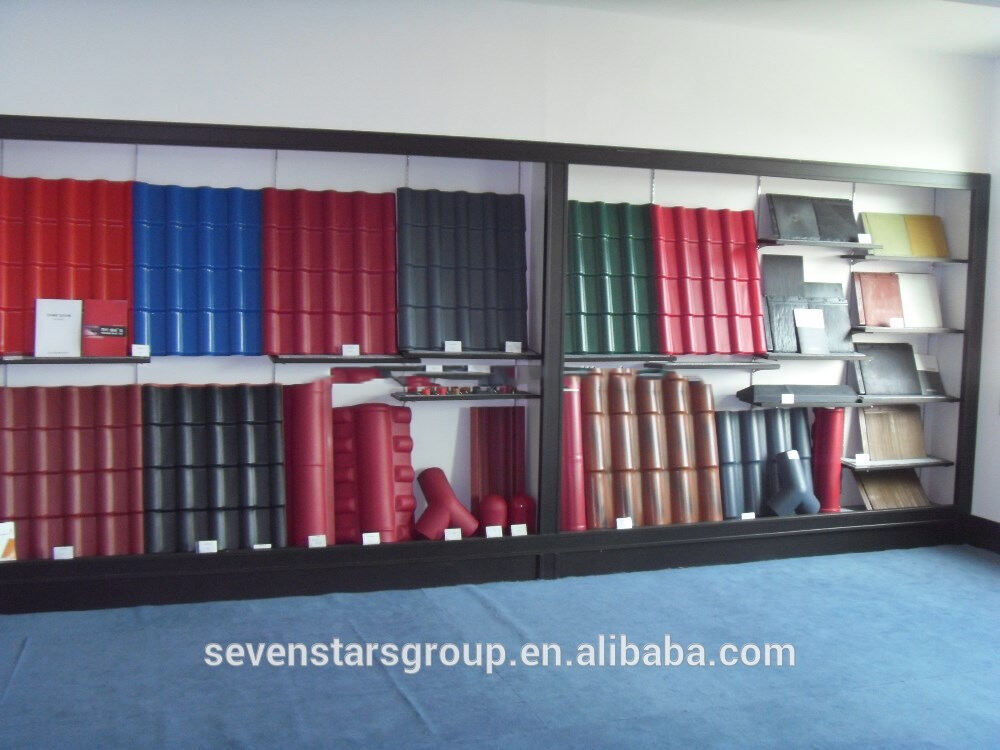

Introduction of glazed roof tile

PVC wave roof tile sheet is polyvinyl chloride resin (abbreviated PVC) as the main raw material, supplemented by UV anti-UV agents and other chemical raw materials, the ratio of science, made with advanced technology. PVC tile, also known as plastic - steel tile is steel tile replacement products. Adopt Multi-layer co-extruded composite technology, the product surface covered by layers of anti-aging, improved weather resistance and color durability. Has good fire resistance, corrosion resistance, weather resistance, does not contain asbestos ingredients, bright colors, environmental health. Is widely used in large-span gantry structure plant roof and wall, both to meet the needs of the corrosion of mild steel plant, but also save steel, lower costs
Introduction of plastic glazed roof tile producing plant :

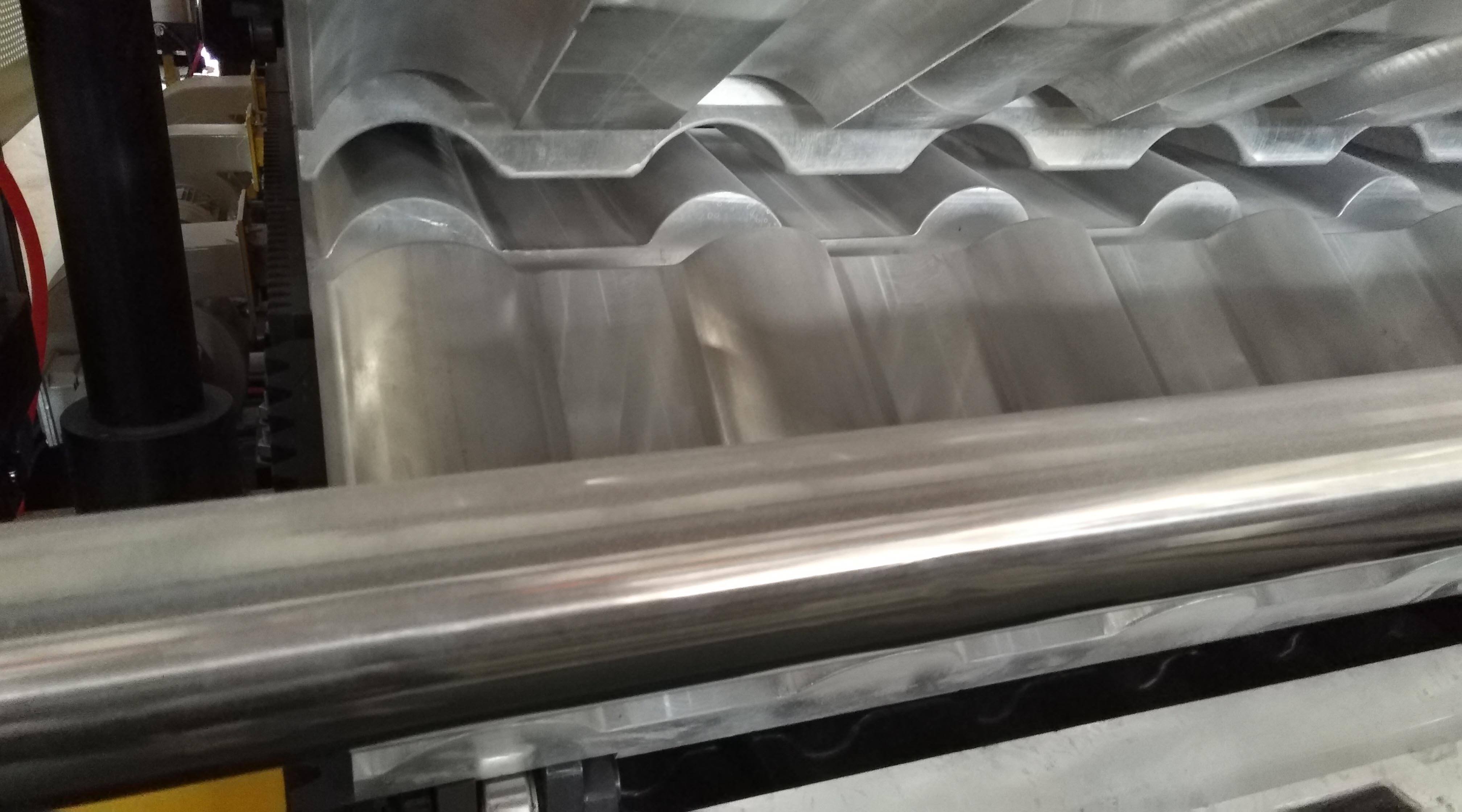

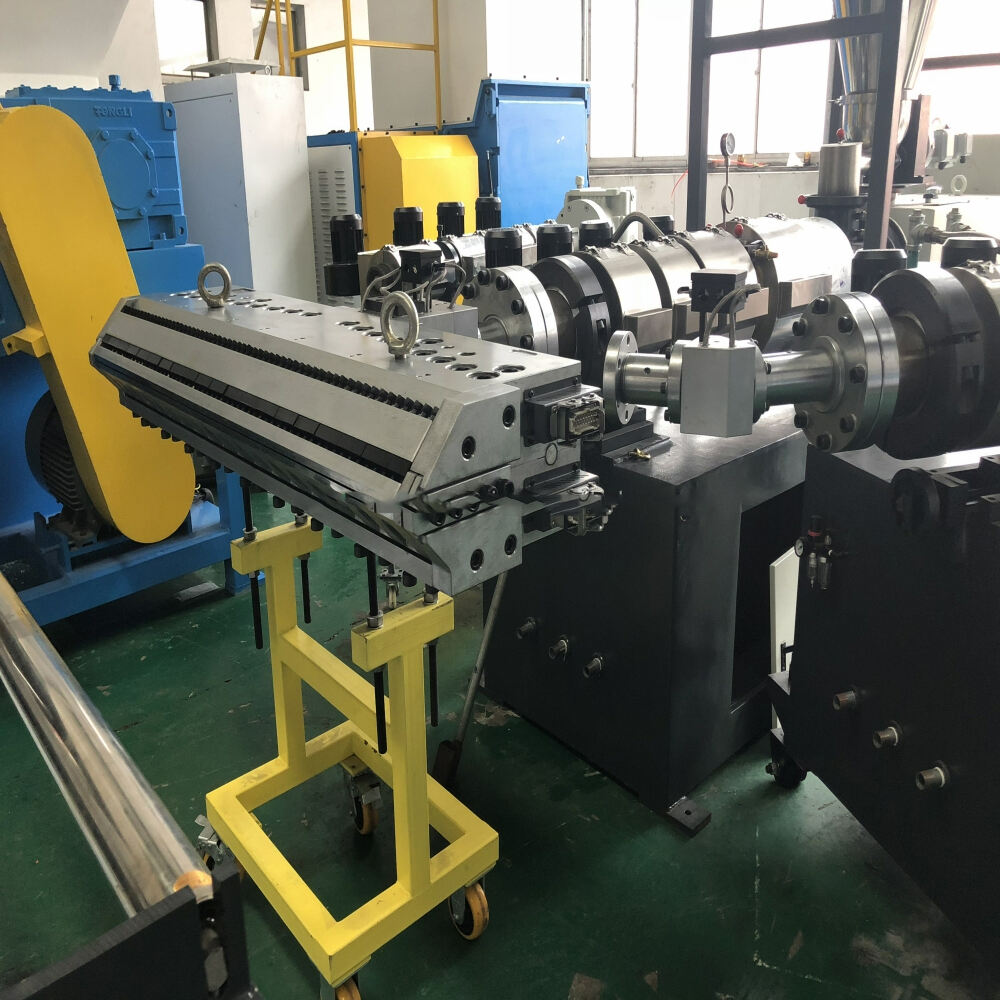

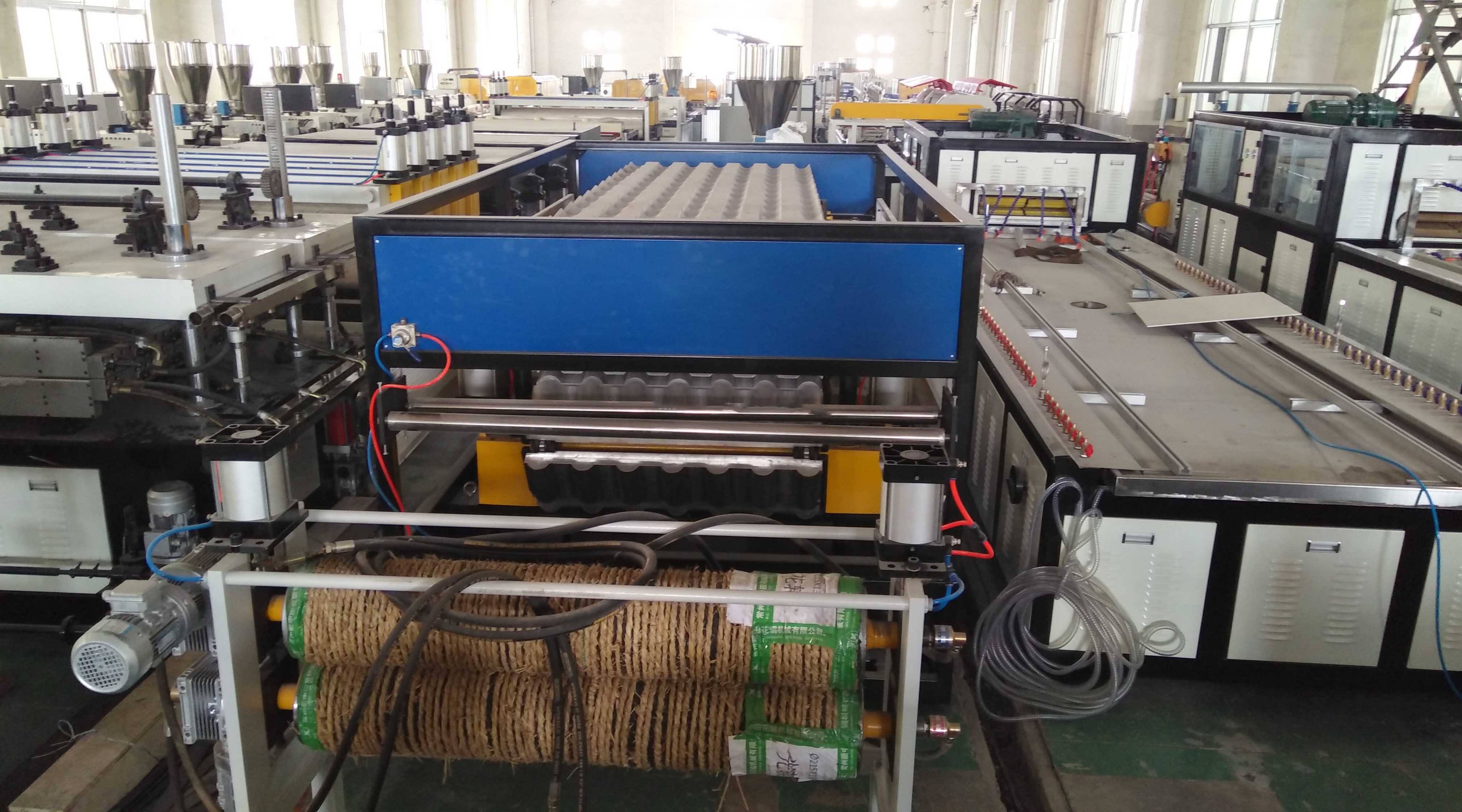

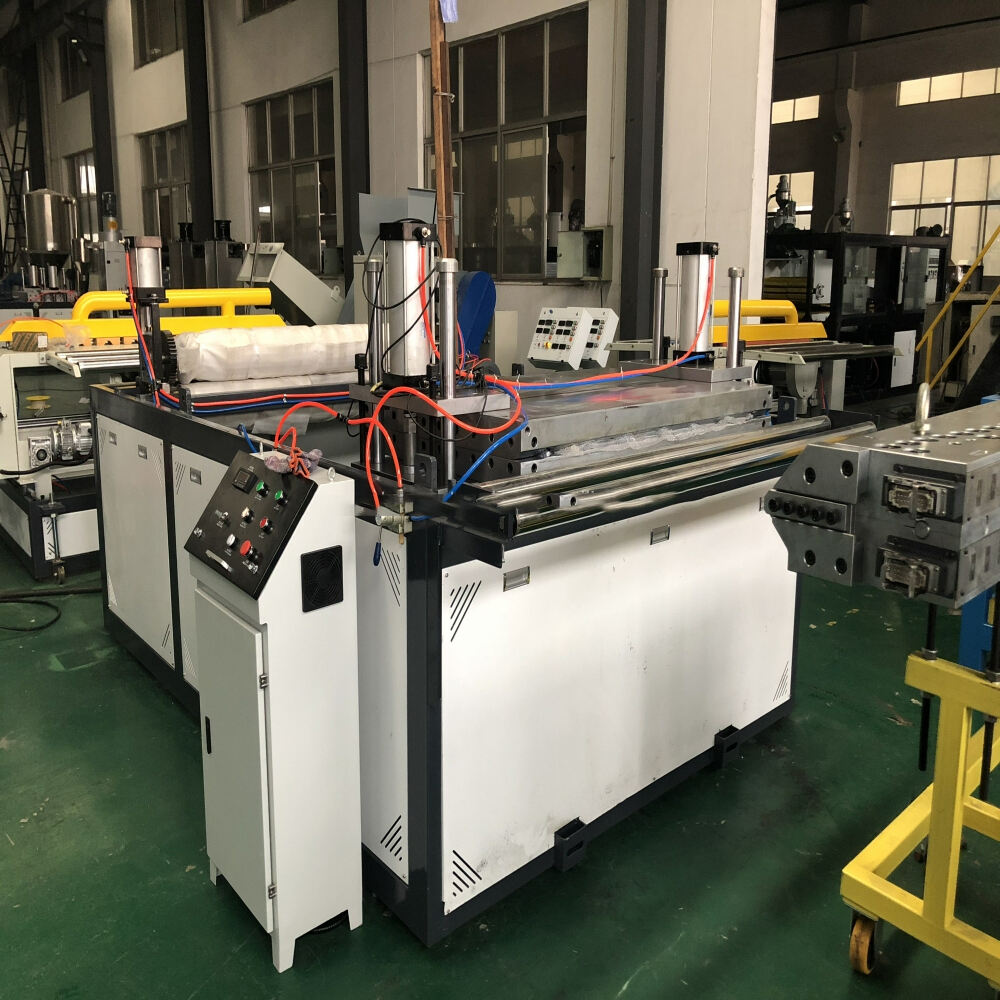

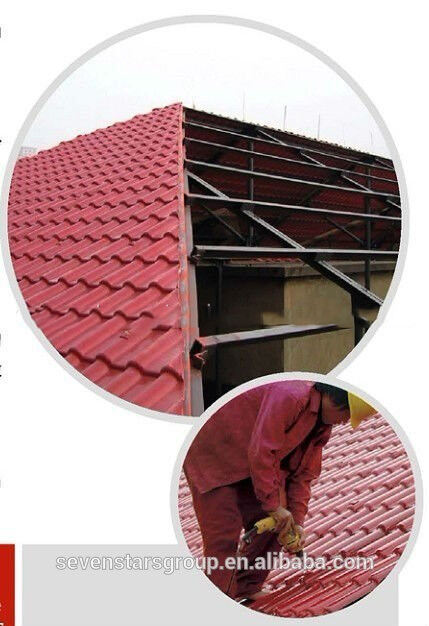

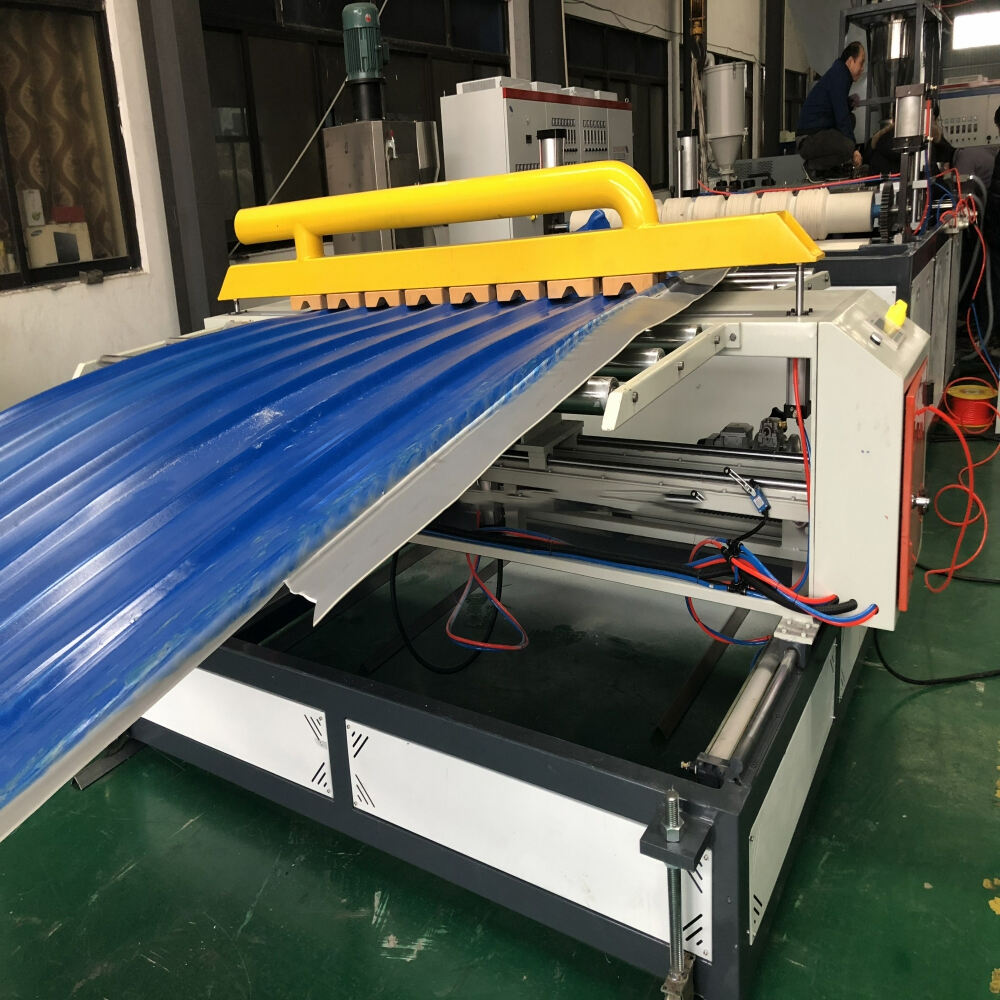

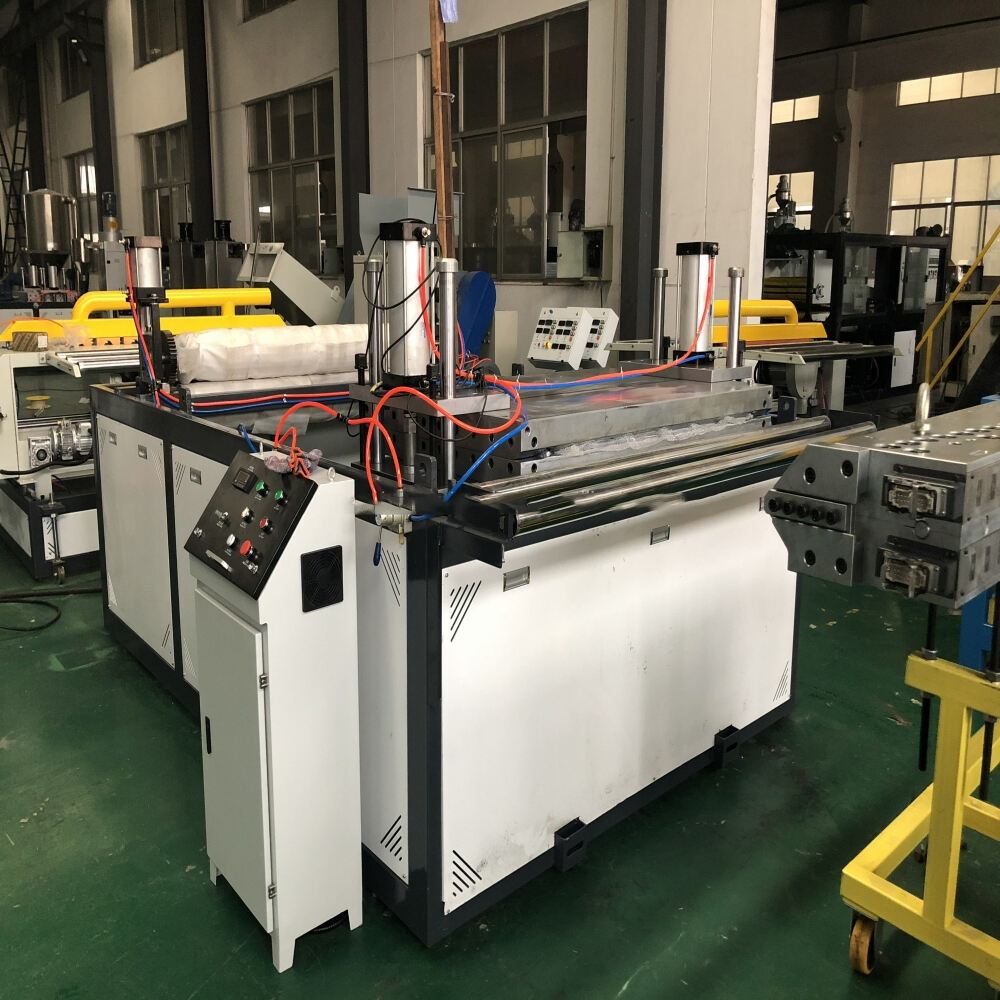

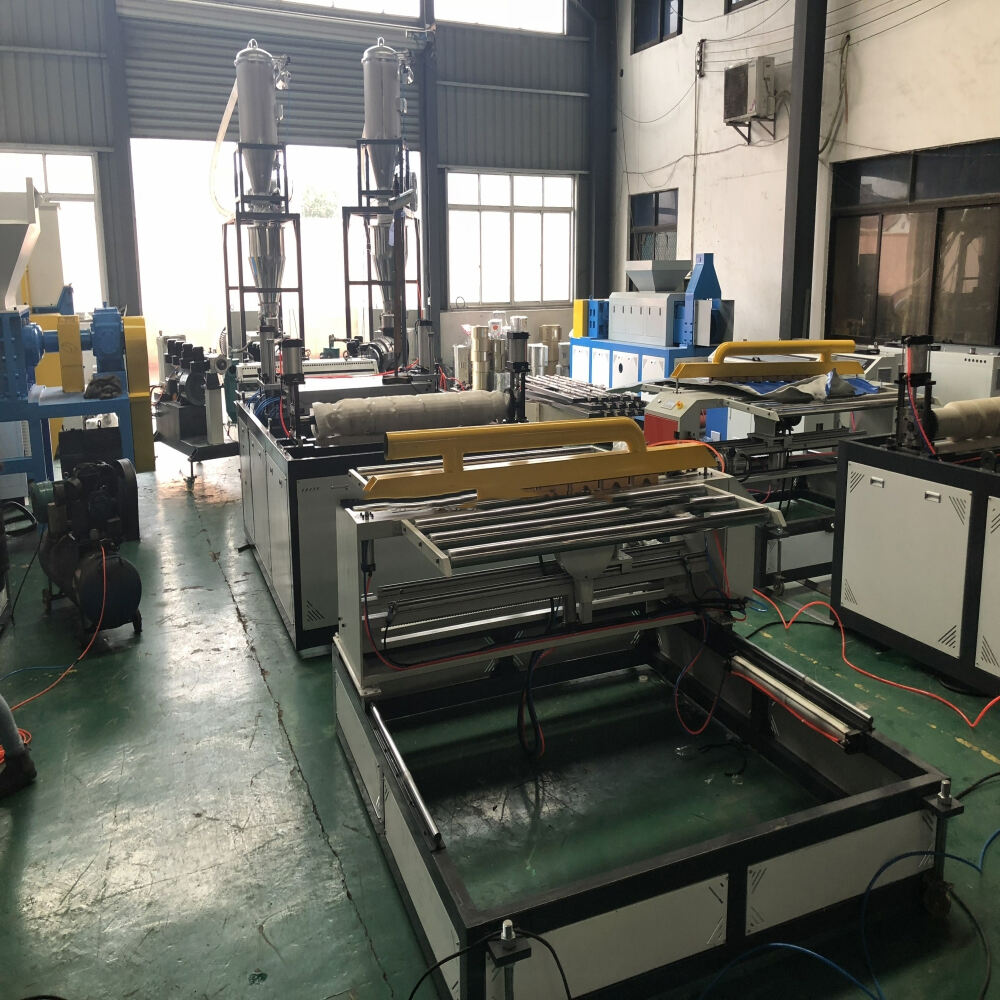

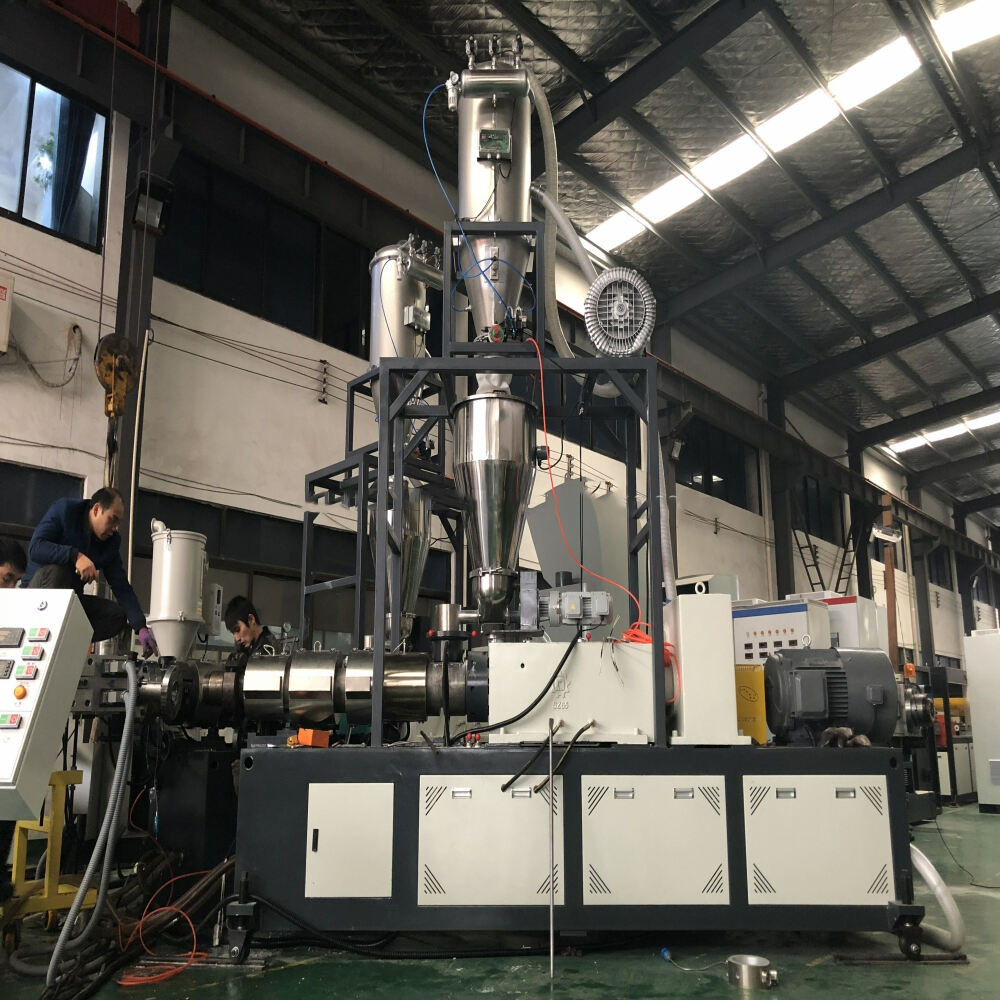

This tile extrusion line is consist of conical twin screw extruder/ die head/Calibration unit/ Chilling unit/Hauling unit/Cutting unit/Stacker. PVC roof tile can be widely used in the old and new roofing, old and new factory, warehouse, stores, farmers markets, civil bungalow, the residential quarters to flat slope, the new rural construction, villa roofing, pile of loading bays, farms, vegetable shed, rain booming, awning and sights and raising antique buildings board, removable houses, balcony column board, frame structure wall etc building water proof insulation. Advantages with light weight, intensity big, wear pressure deformation

Features of plastic glazed roof tile producing plant :

1. Adopt PLC control and simple operation
2. Adopt Electric-magnetic heater which can save 40% -60% electric power for customer
3. All Electric Part (breaker/motor/relay /Inverter and so on) is Siemens/Schneider/Omron
4. Adopt Gravity Feeding System
5. Material of screw and barrel: 38CrMoAlA, nitrogen quenched which the thickness layer 0.4-0.7mm; Hardness of screw barrel: >940 HV;
6. Unique grooved structure feed bush with force cooling system that is specially designed by Friend co. which can increase output at 15-20%.
7. Variable screw-pitch and double-separate structure screw is specially designed for PE. Comprehensive plasticizing element, ensure the plasticizing effects of materials
8. The water cooling tank has two vacuum chambers which can improve cooling effect

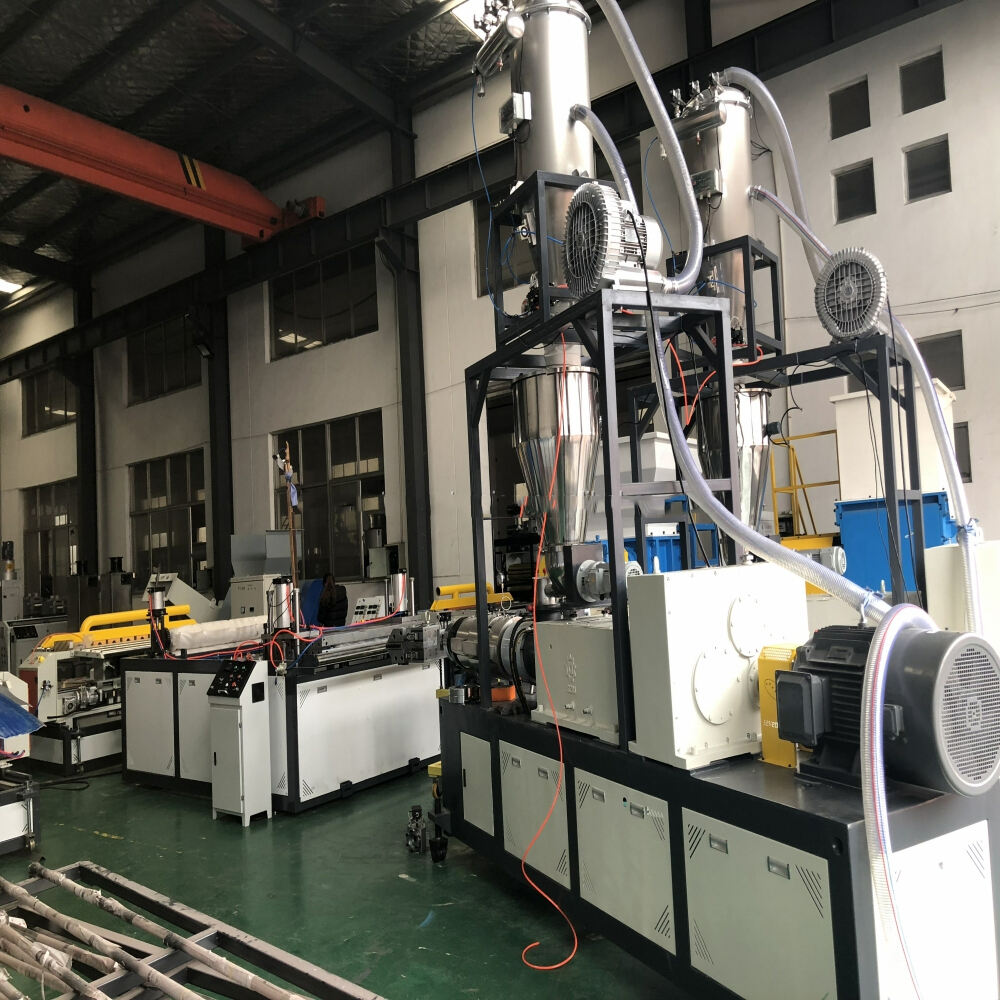

9. This line includes automatic forced feeding system/conical extruder/die head and mold/calibration unit/chilling unit/hauling unit/cutting unit/stacker

Specification

Product	Product thickness	Extruder	Max. output	Total Length
880mm	2-4mm	SJSZ-80/156 SJ-45/28	390kg/h	customizing
1050mm	2-4mm	SJSZ-80/156 SJ-50/30	420kg/h	customizing
