Process flow
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder (depend on instrusion of the sheet)→Hydraulic screen change(optional) →melt pump → T-die →Vacuum calibrator forming machine →First hause off unit →Anneal oven →Cooling bracket →Double side Corona treatment device(optional)→Second haul off unit →Cross cutter and transmission unit→Collect table
Main Features
1. The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled.
2. High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; output capacity is 25% higher than other brand extrusion lines. because of special design of forming plates.
3. Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate.
4. Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines.
5. The softness of pull rolls could be customized on request to extend its stretch.
6. The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines.
7. Unique T-Die made by JC Times is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape.
8. Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement.High percentage of recycled flakes could be mixed with the virgin materials.
Specification
| Extruder model |
φ100 |
φ120 |
| Product width |
1300/1500mm |
2100mm |
| Product thickness |
2-12mm |
2-12mm |
| Motor power |
110kw |
132kw |
| Capacity |
250-300kg/h |
400-450kg/h |
Detailed Images

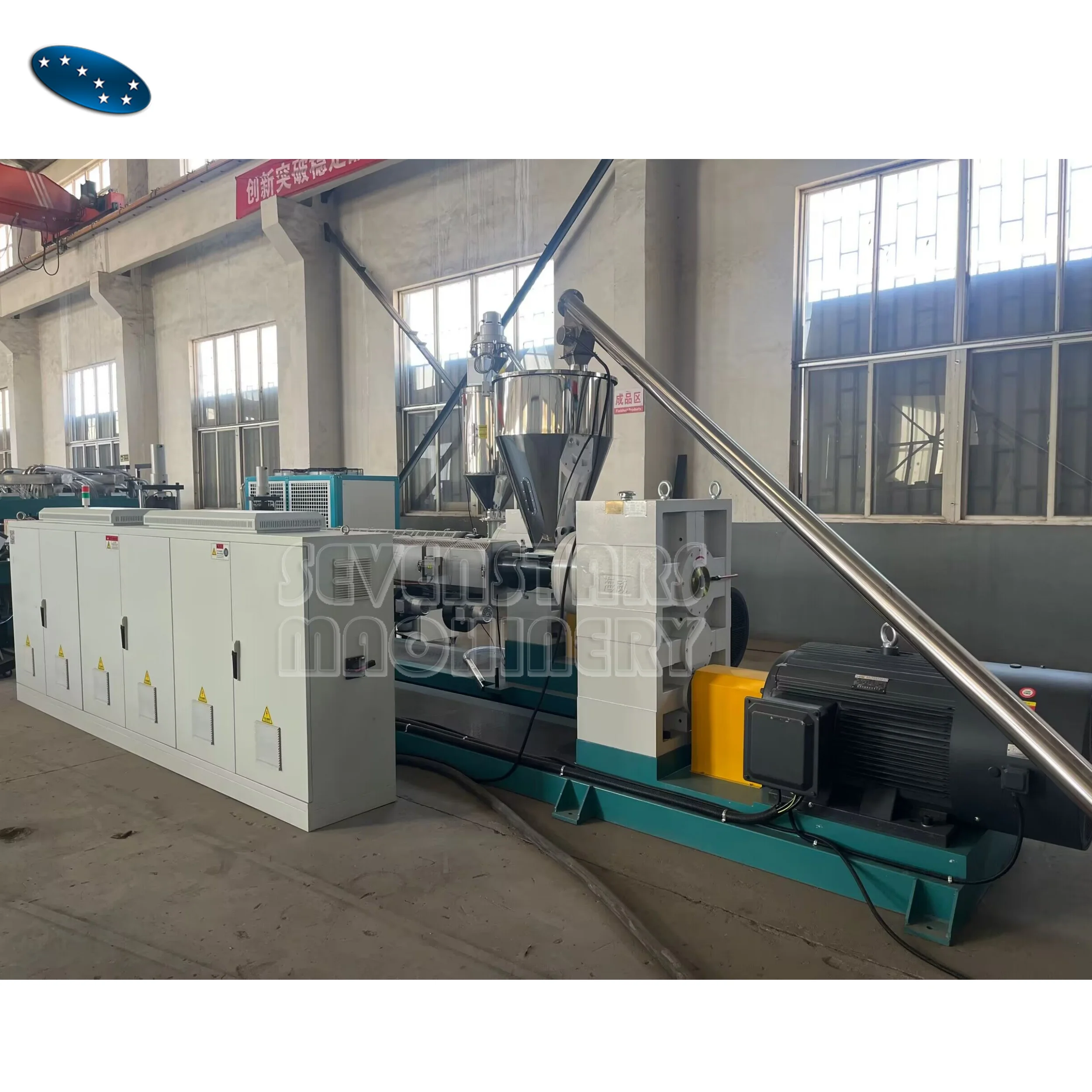

1. Extruder

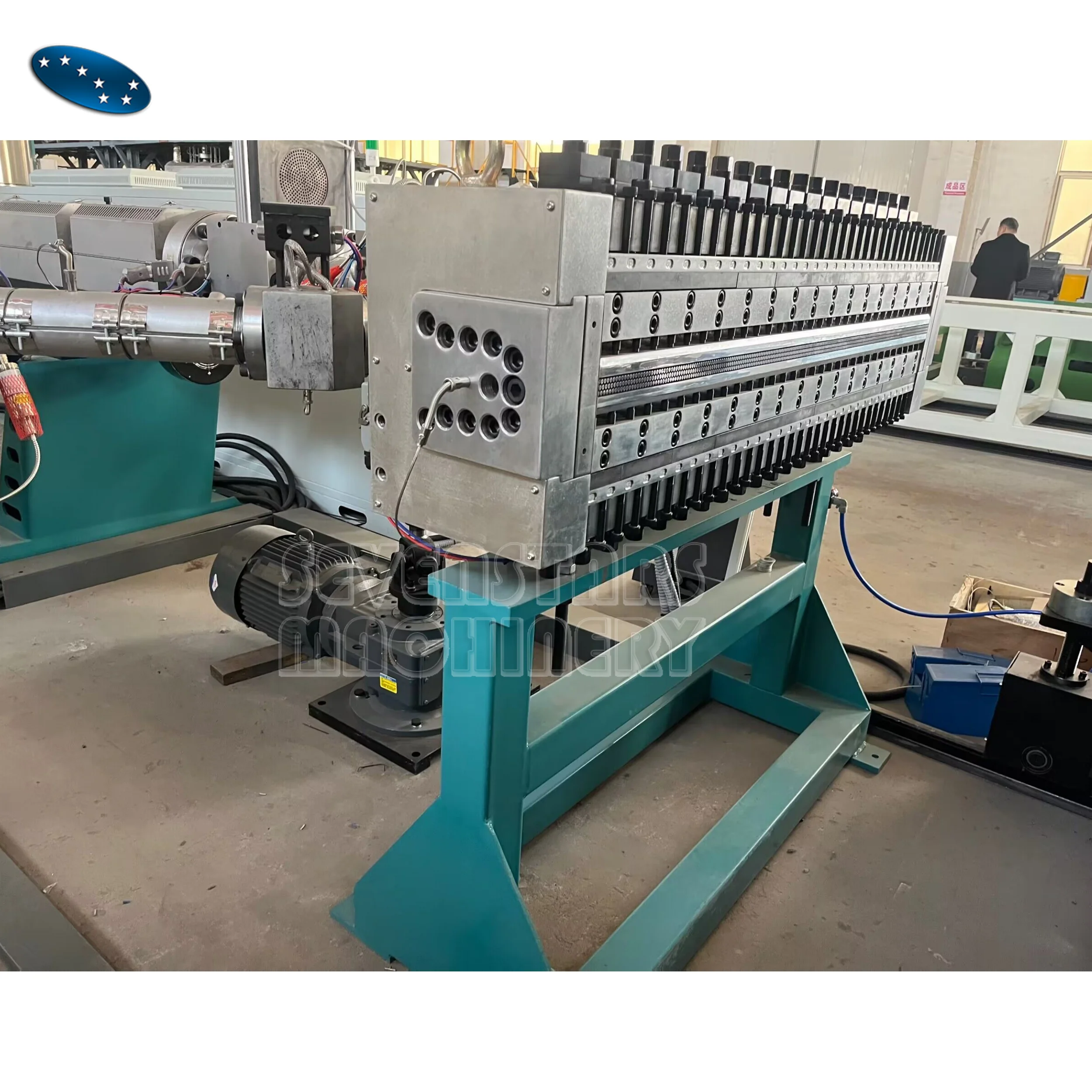

2. Extrusion mold
3. Hydrualic filter screen

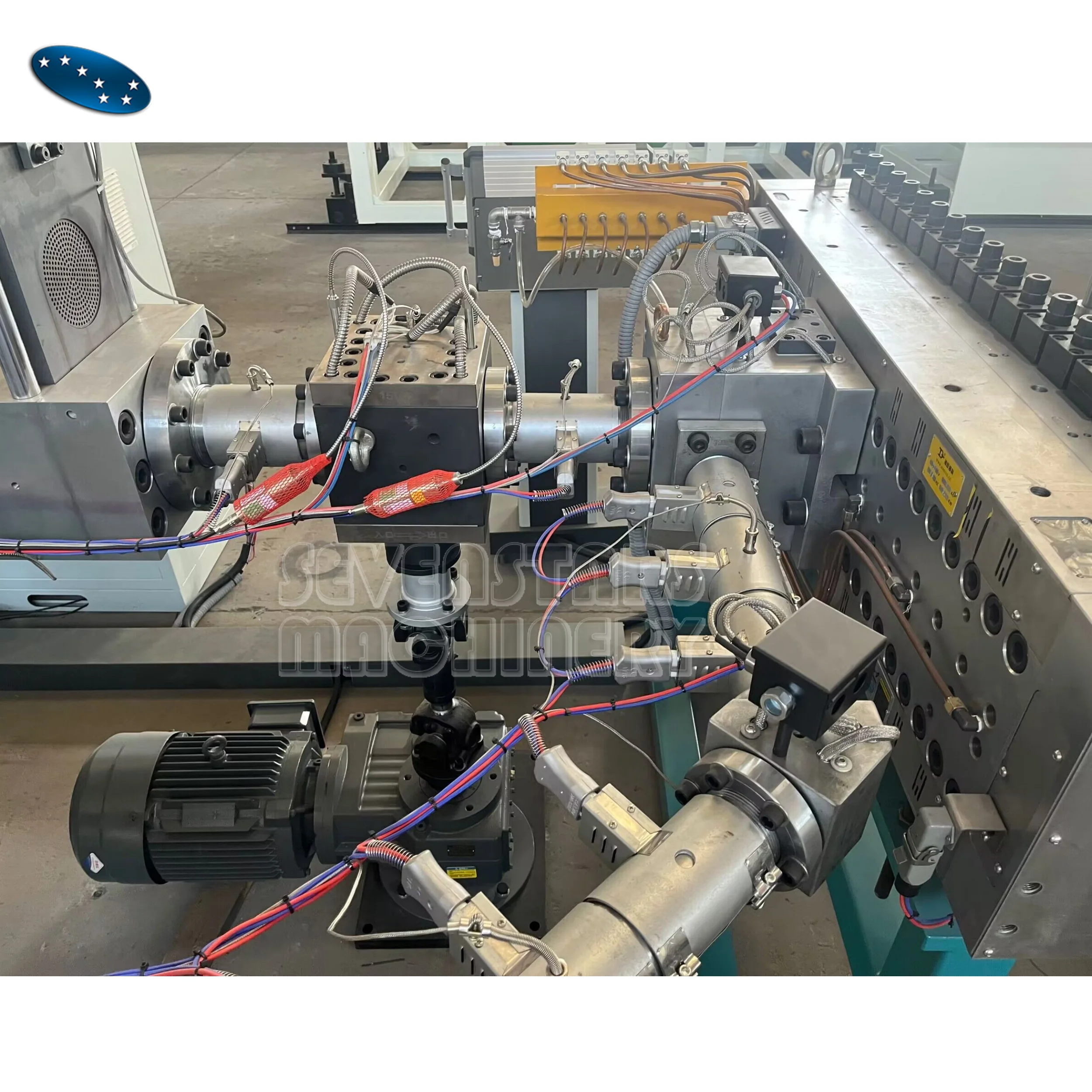

4. Melt pump

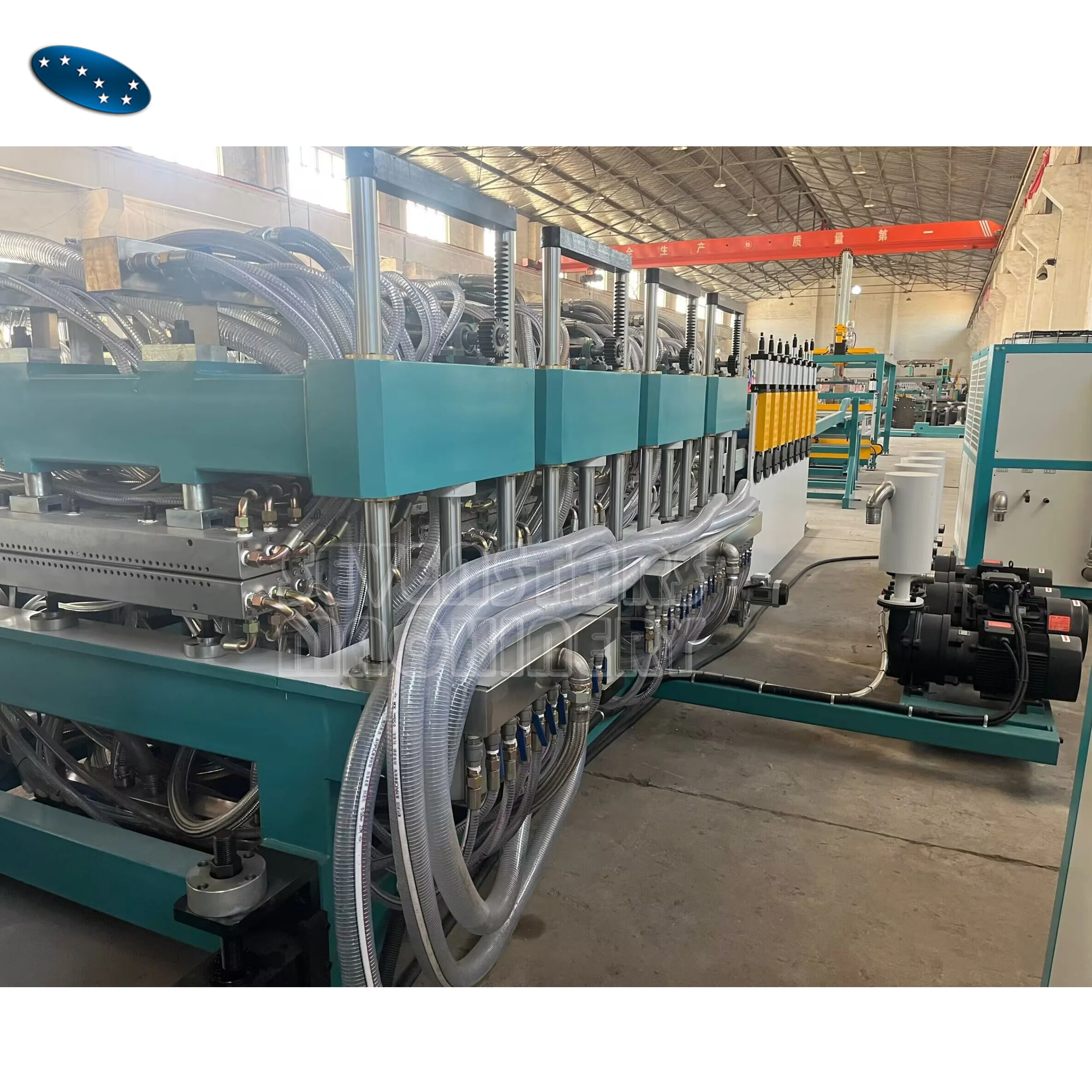

5. Forming machine

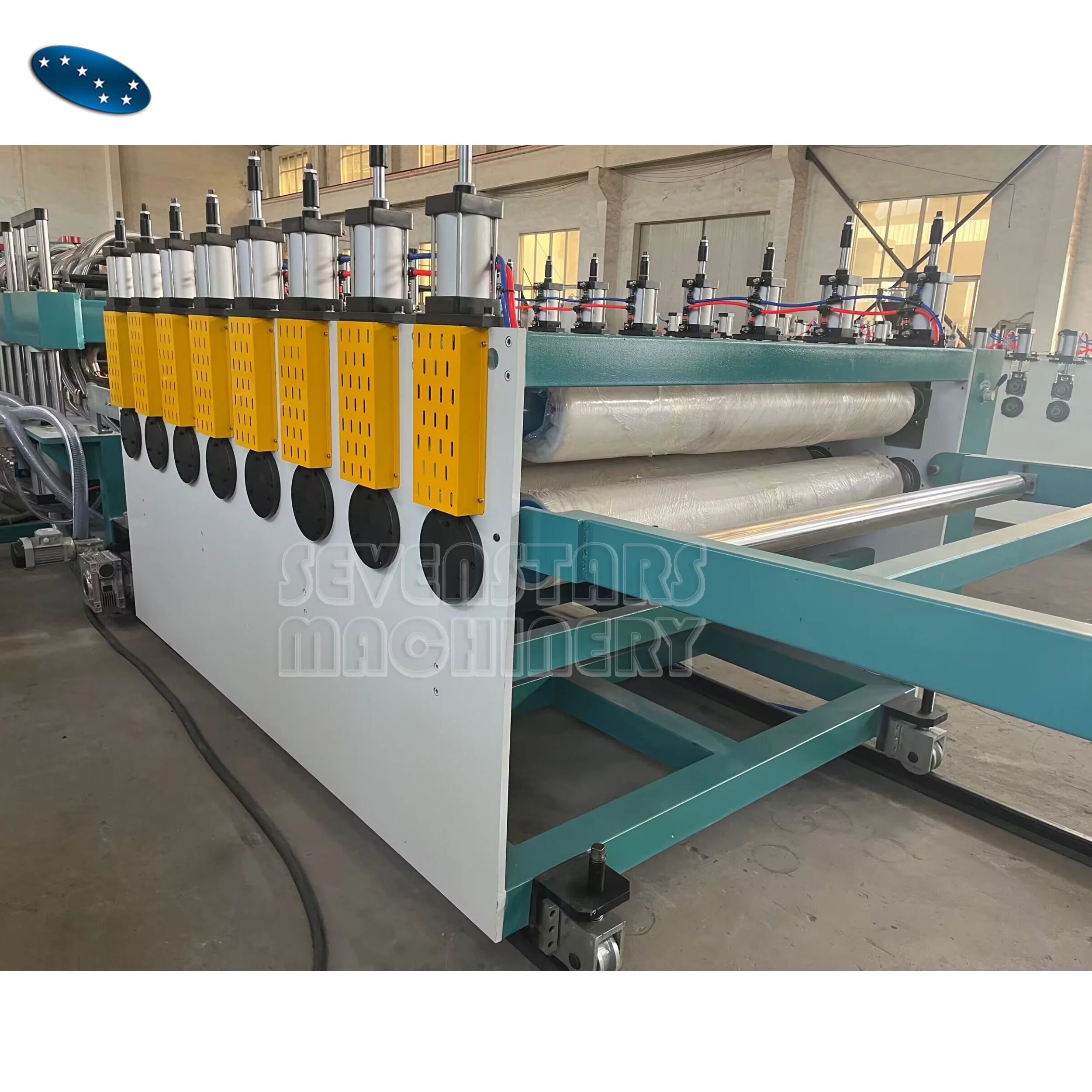

6. Haul off Machine
7. Cross cutter and transmission unit
8. Automatic Robert Hand
Advantages of PP Hollow Sheet:
1. It is easy to support and remove. The operation is simple and fast, automatically removed, no need to be cleaned.
2. Good flame retardant, good toughness, fastening nail holding force, super high load bearing force.
3. Can be 100% recycled, reduce waste pollution to the environment
