PVC Window & Door Extrusion Line

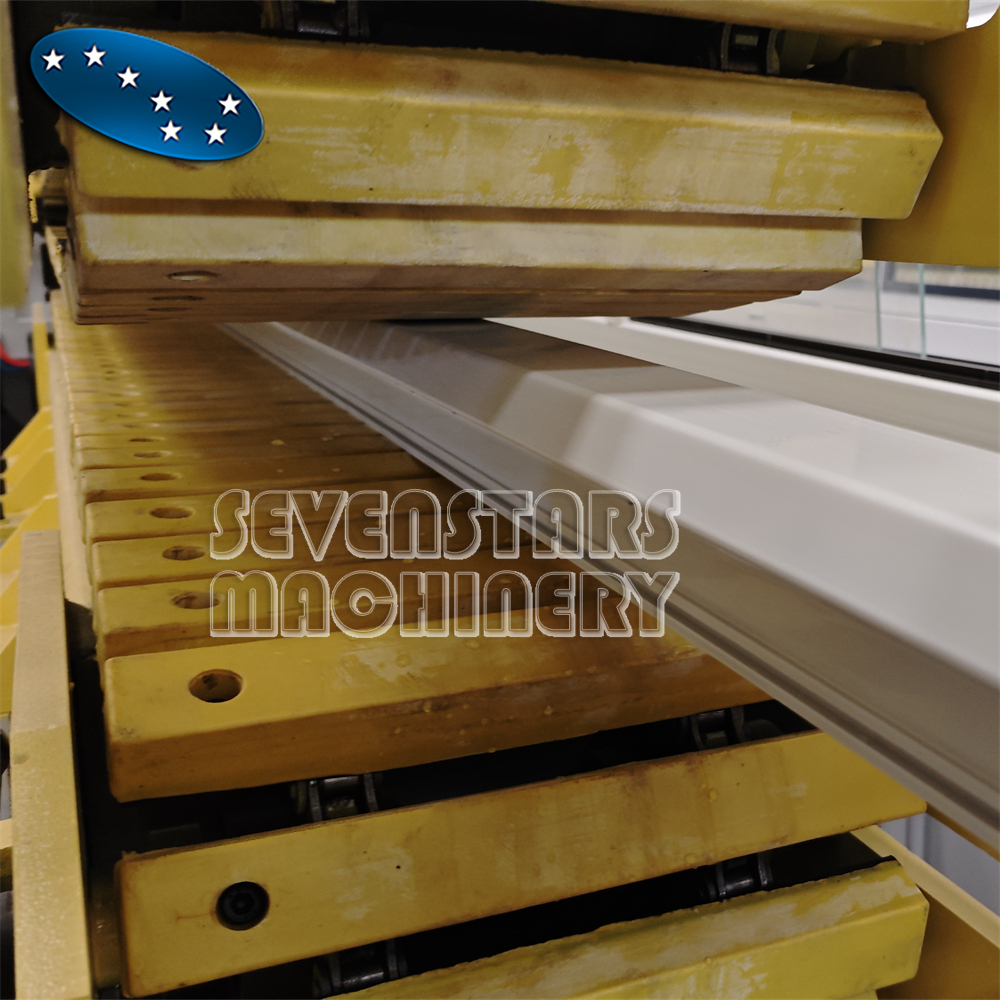

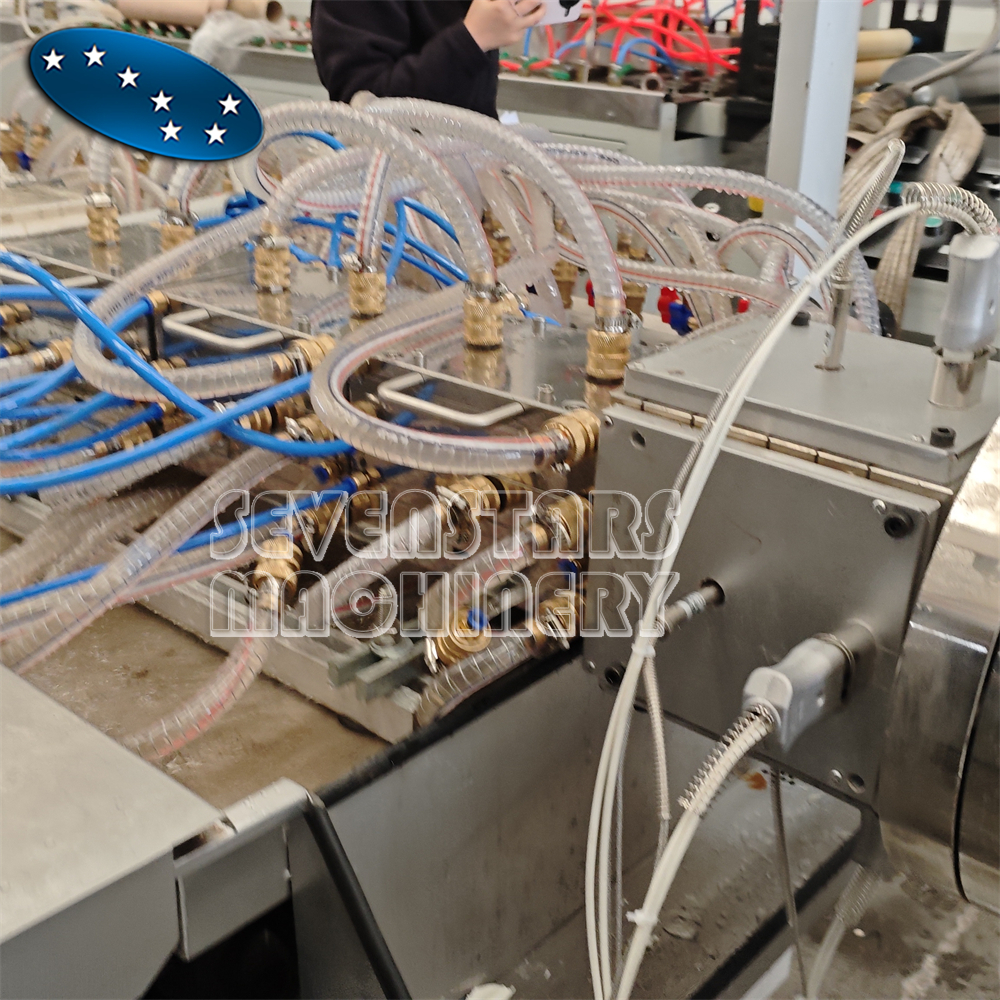

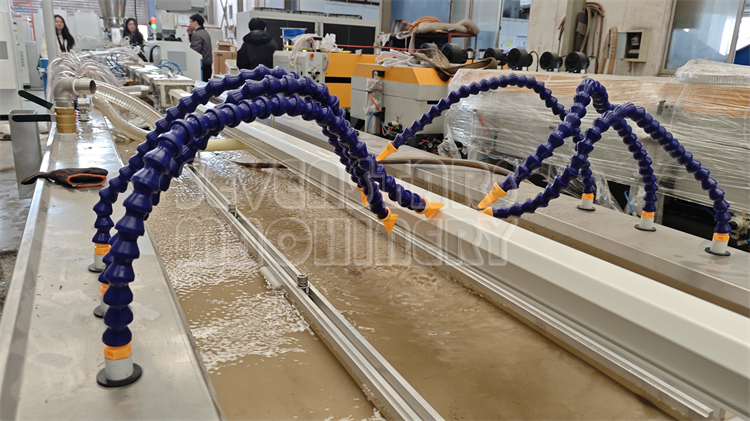

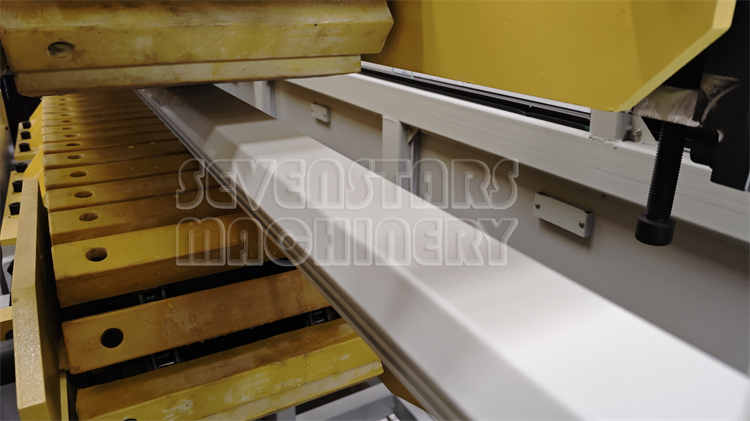

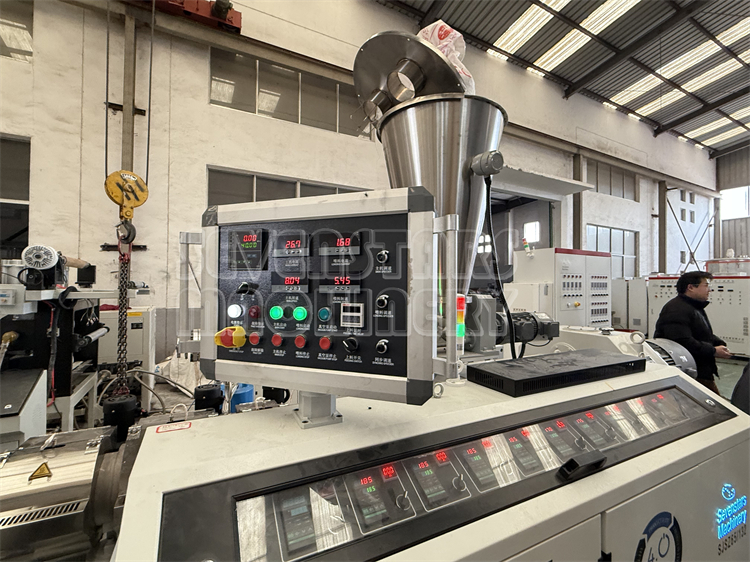

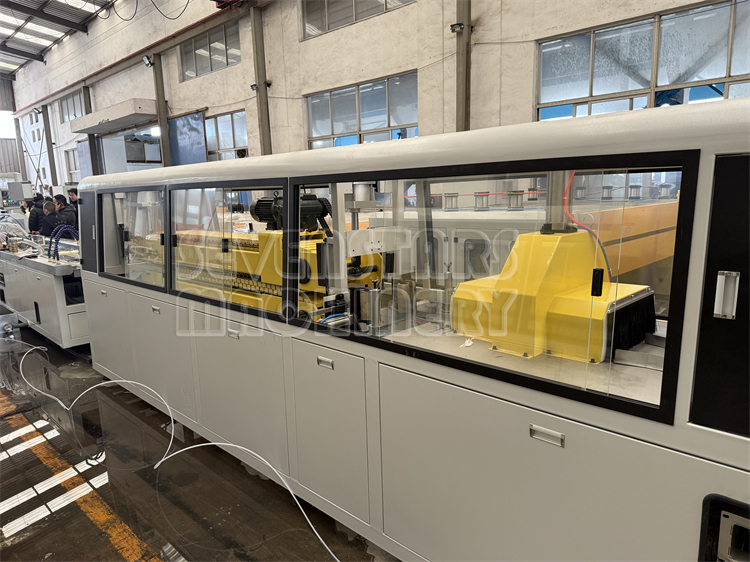

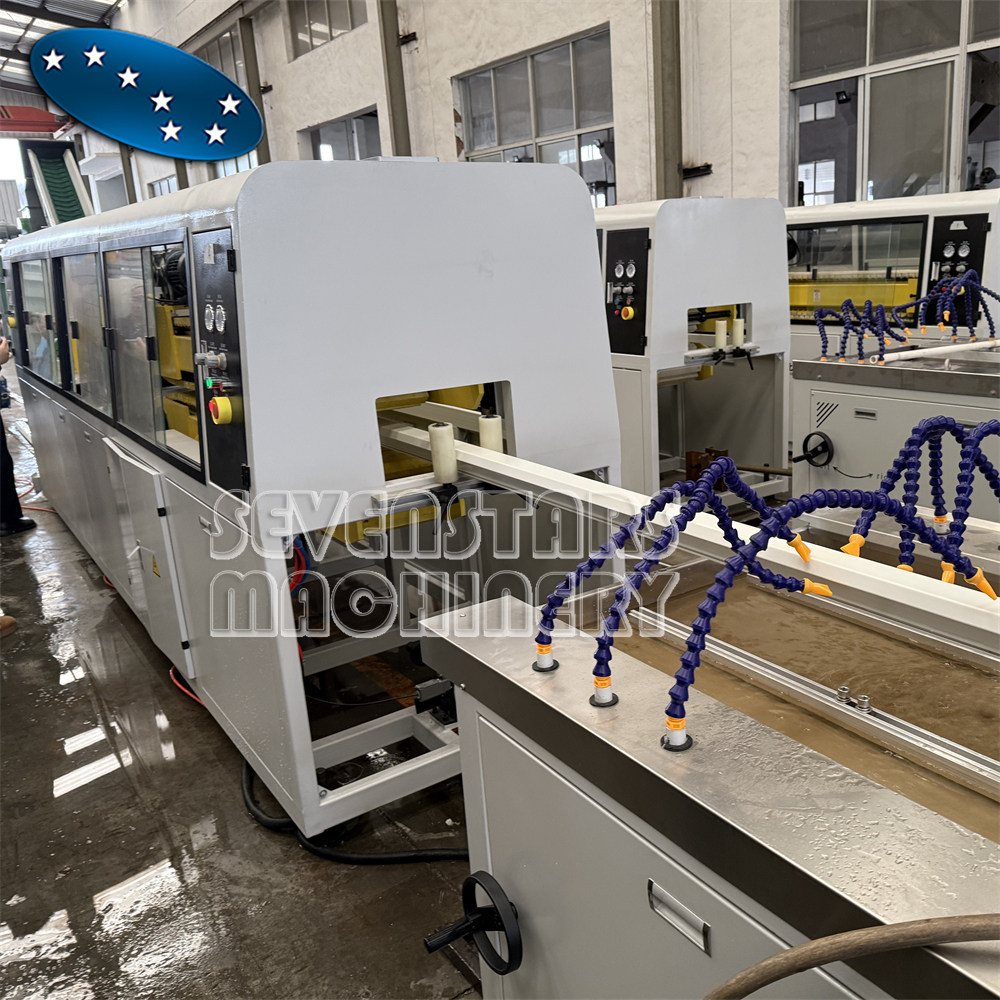

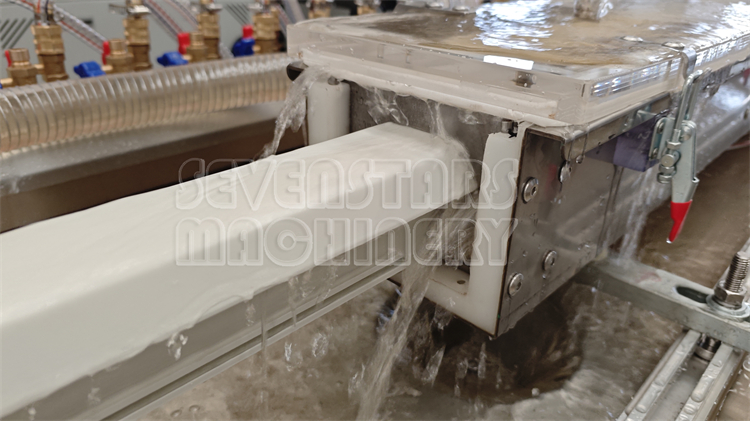

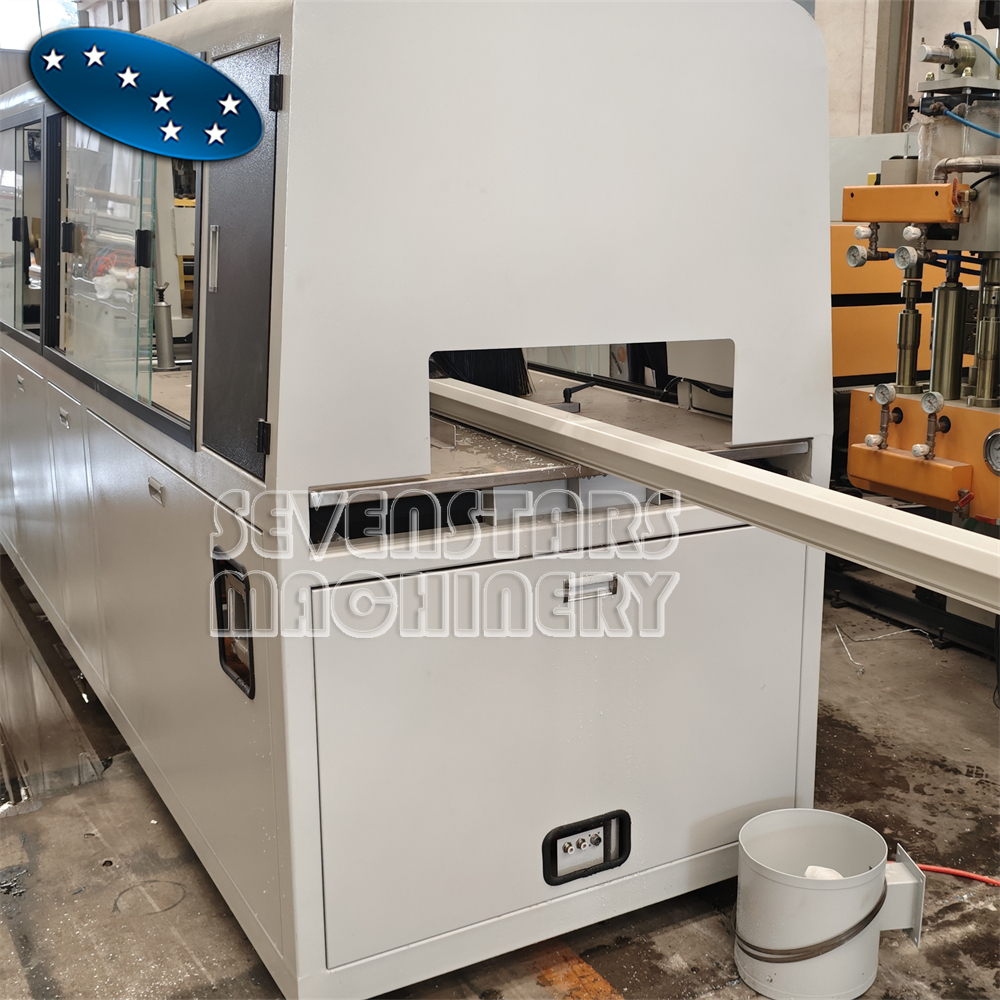

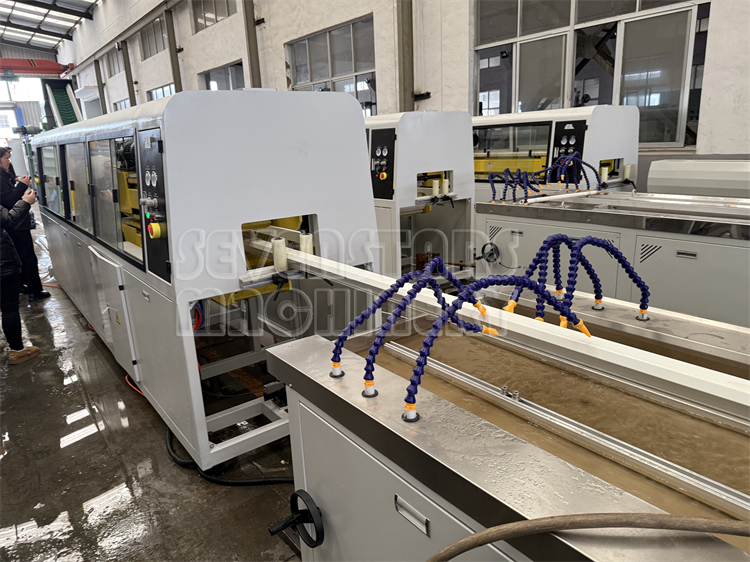

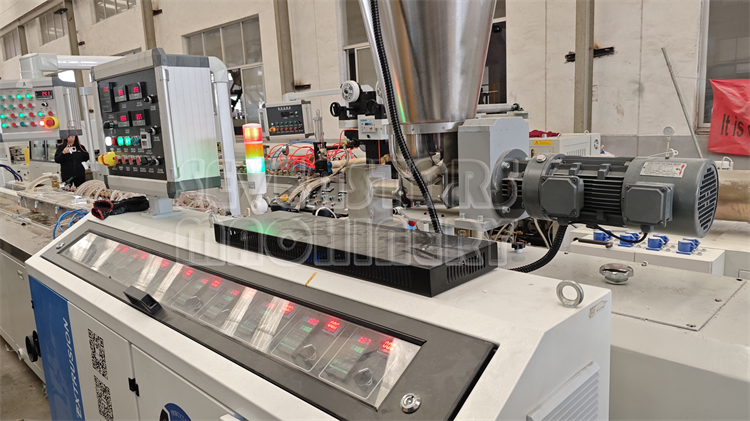

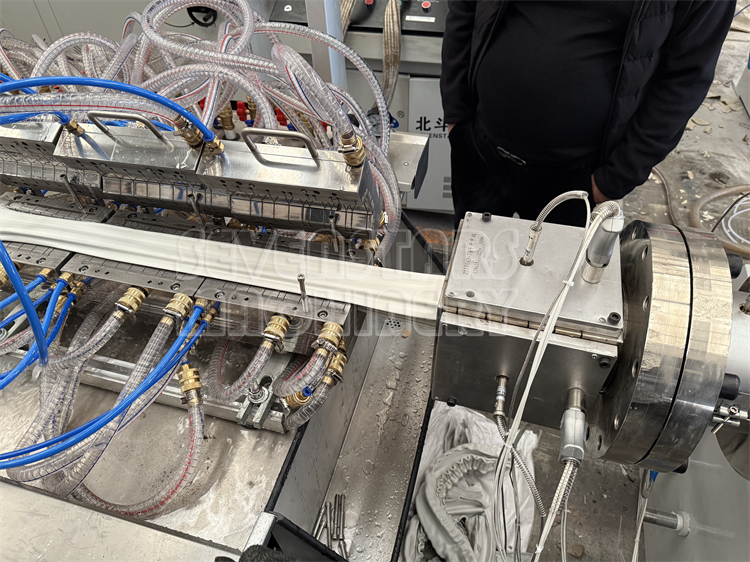

Sevenstars Machinery PVC window profile extrusion line is a complete production system specially designed for manufacturing high-quality PVC door and window profiles. The line integrates a conical twin screw extruder, profile die, vacuum calibration table, haul-off unit, automatic cutting machine and stacker into one synchronized production process, delivering stable output of 150–450 kg/h depending on the model.

Working Process

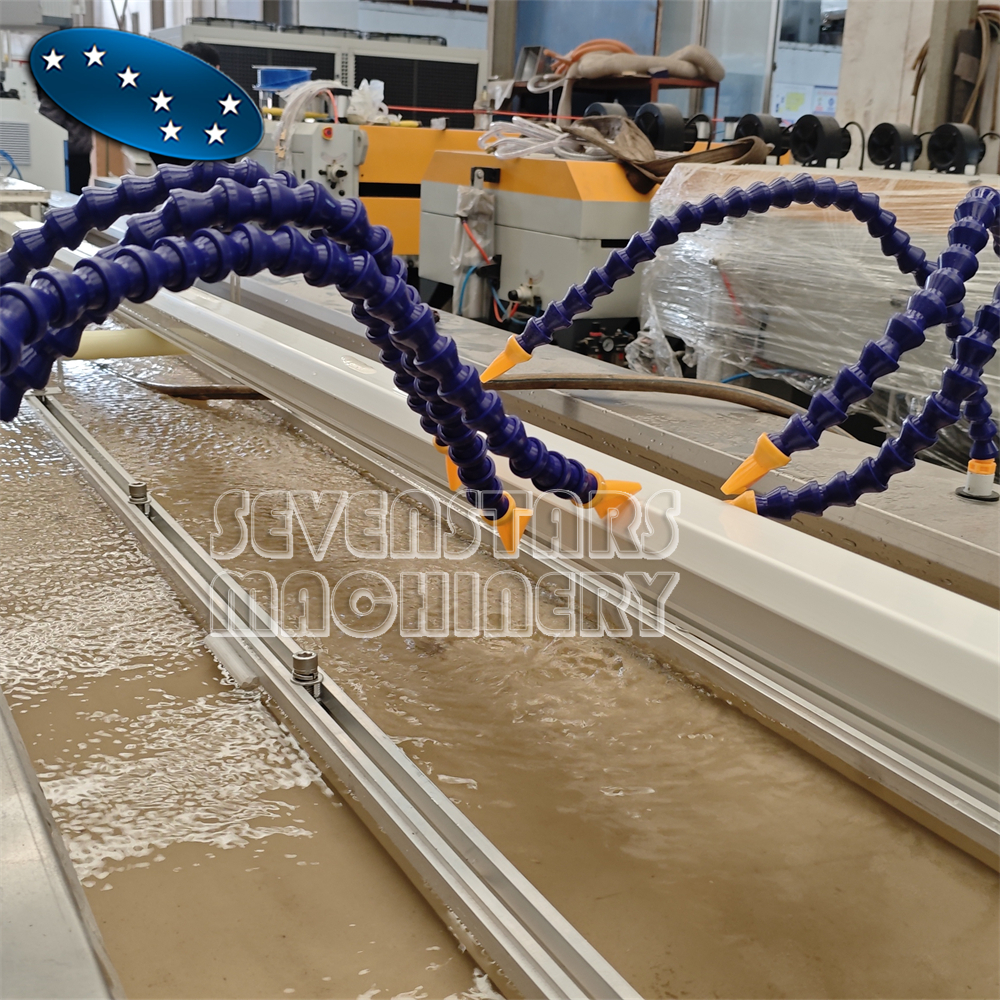

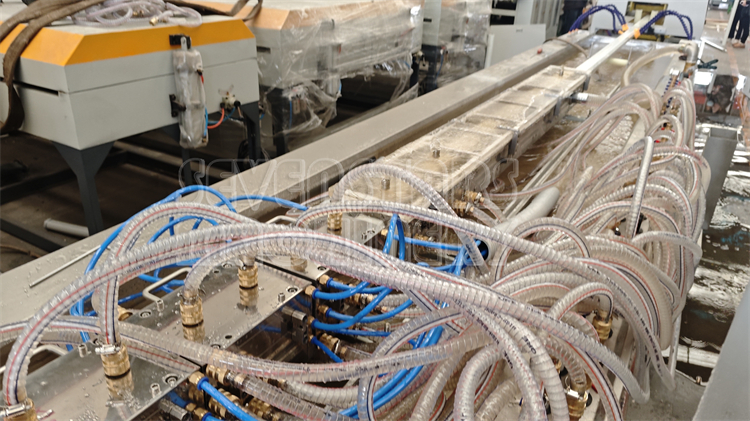

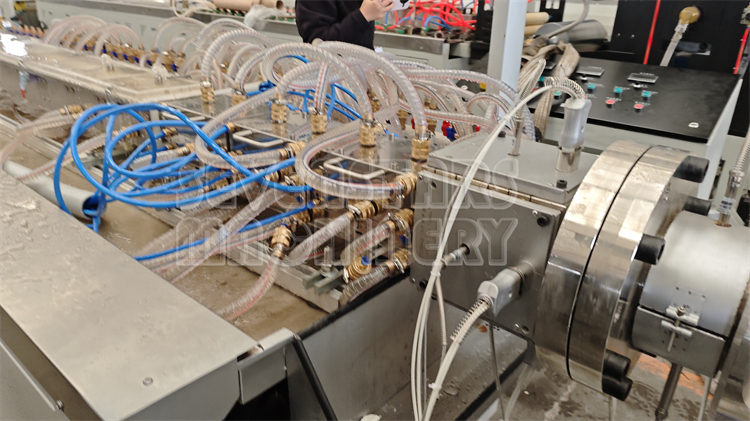

PVC resin compound → feeding → plasticizing & extrusion → vacuum calibration & cooling → haul-off → automatic cutting → stacking → inspection & packaging.

Features

1.Conical twin screw design provides excellent plasticizing effect and stable extrusion pressure for PVC/UPVC materials.

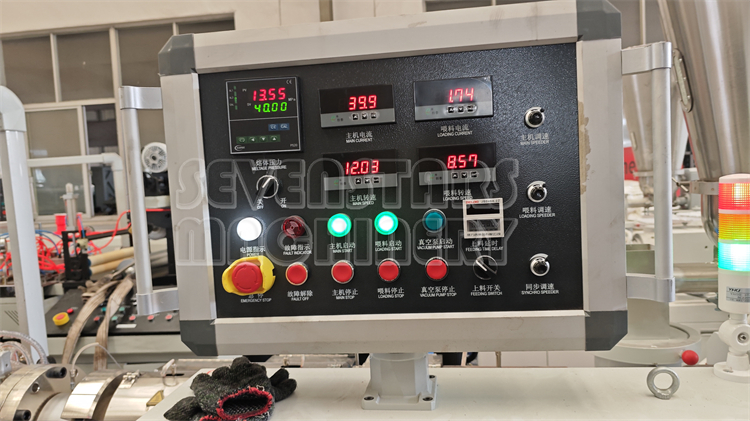

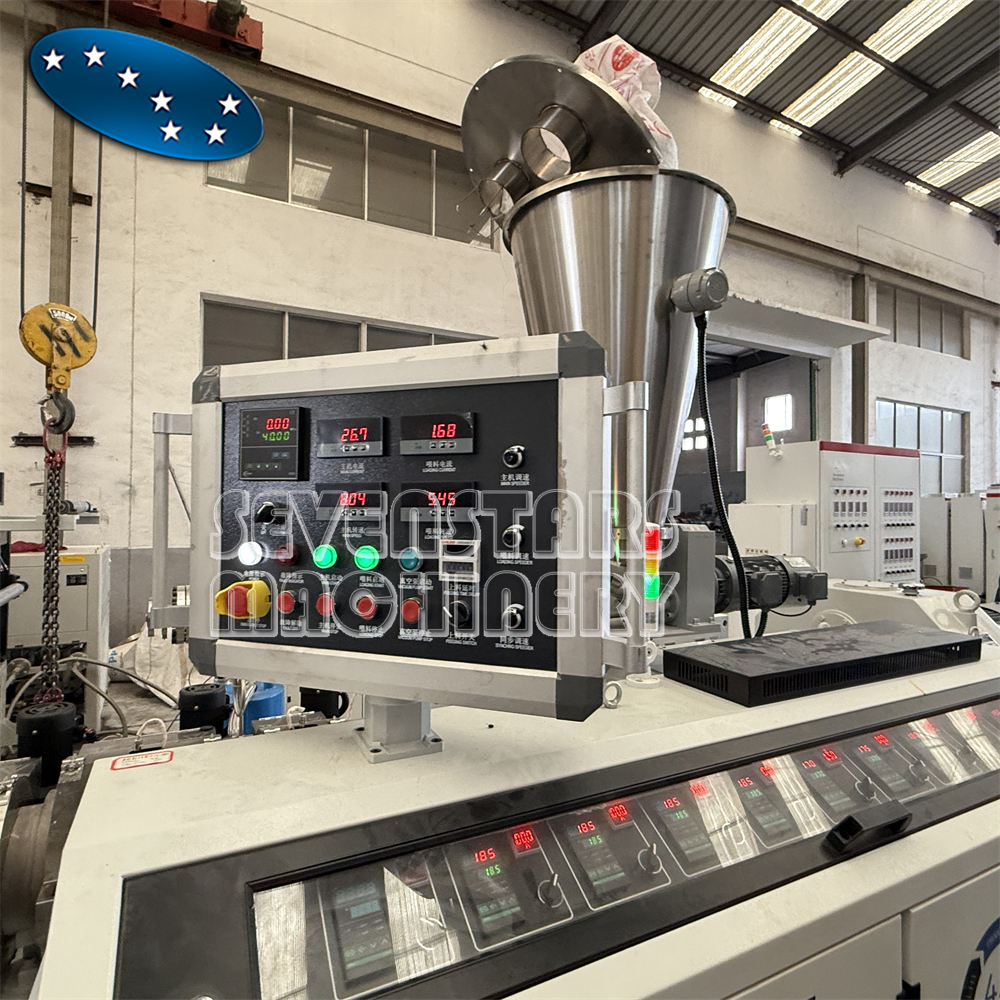

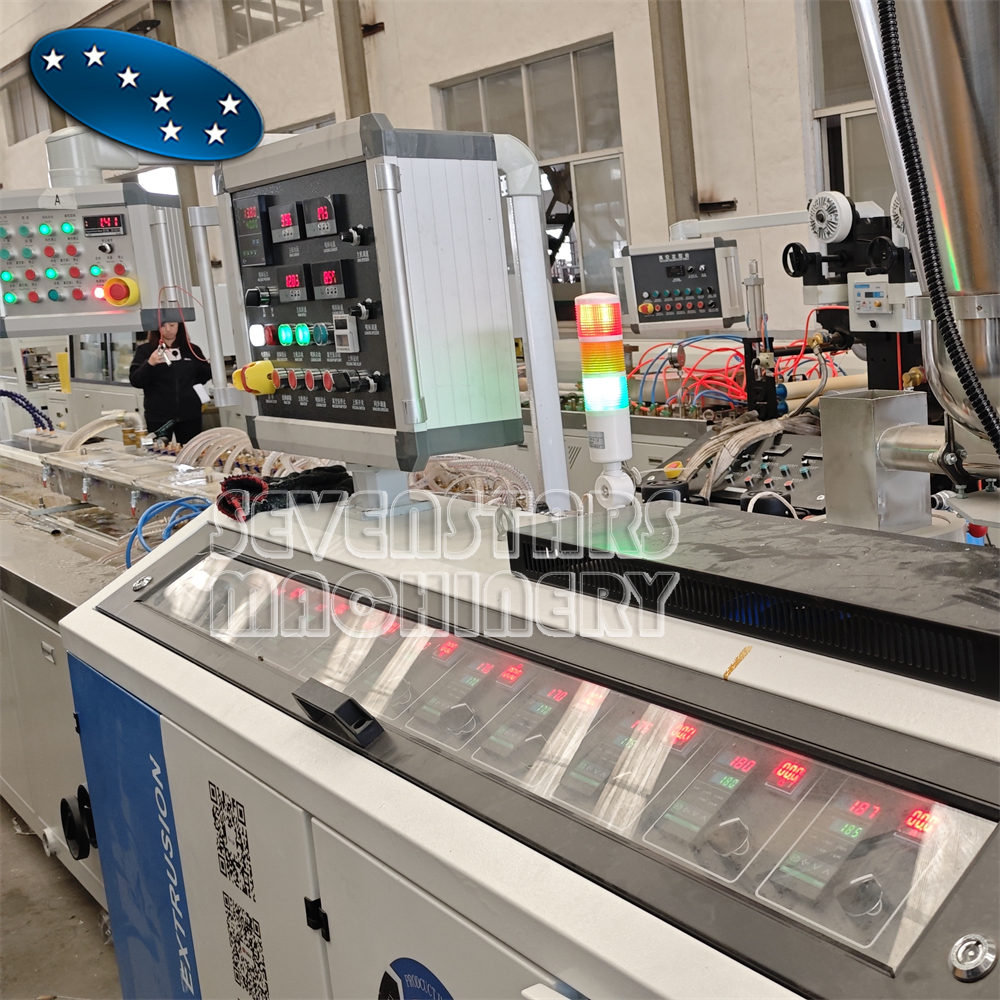

2.PLC + touch screen control with multi-zone temperature control (±1°C accuracy) ensures consistent profile quality.

3.Energy-saving drive system reduces power consumption and operating cost.

4.Quick die change design shortens downtime between profile changeovers.

5.CE certified electrical system with safety interlocks for operator protection.

Customization

We offer custom die design according to your profile drawings or samples. Whether you need standard window series (60/65/70/80/88/95 mm system) or special profiles, our engineering team will build the die and adjust the line parameters accordingly.
