PP/PE Hollow Sheet Extrusion Line

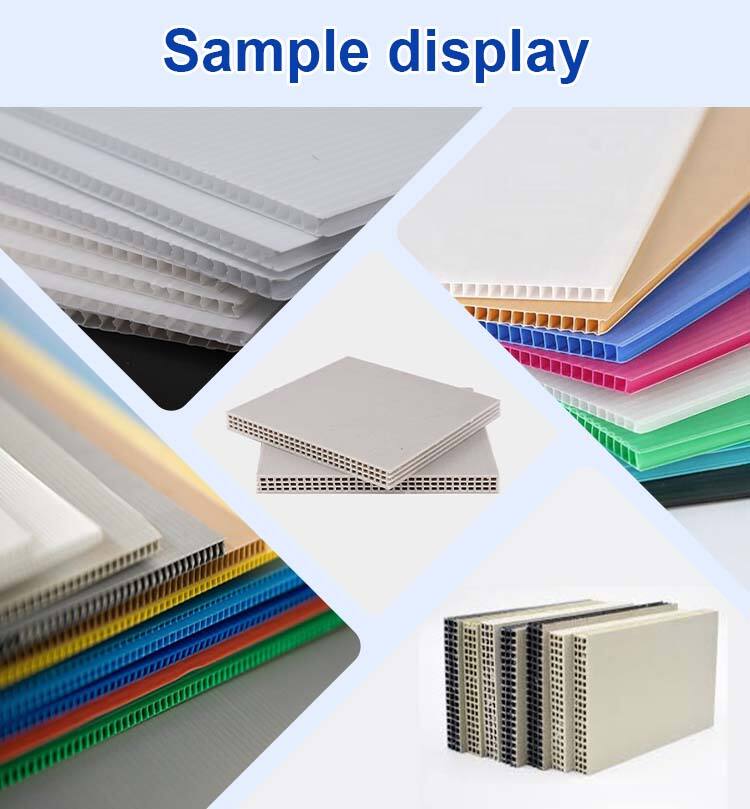

-The equipment is applicable to produce pc, pp, pe hollow profile board.
-The Products is used wideliy for building, decorating, advertisement laying, road noise isolation and packing.

-PP holloe profile board can instead of carton which have feature like light weight, high strengthen, moisture-proof, antisepsis.

-Width of board is 1220-2450mm

Process flow

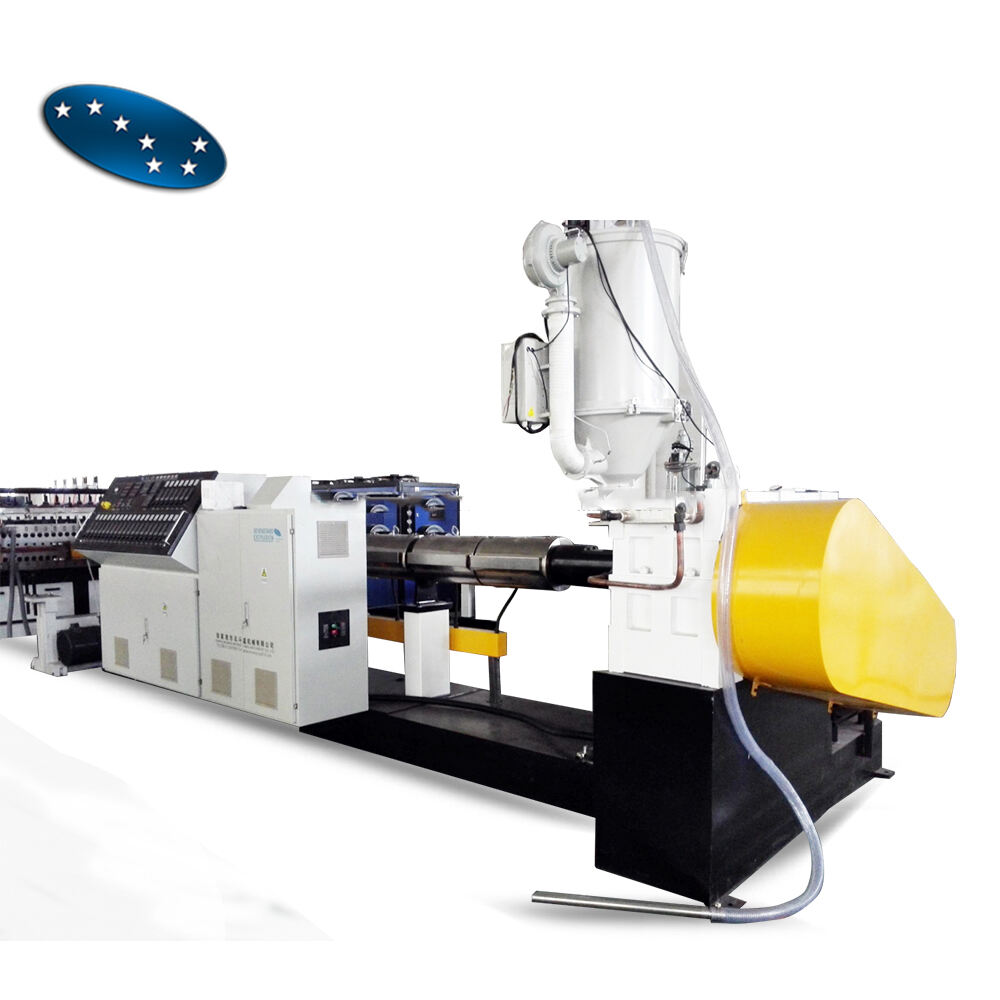

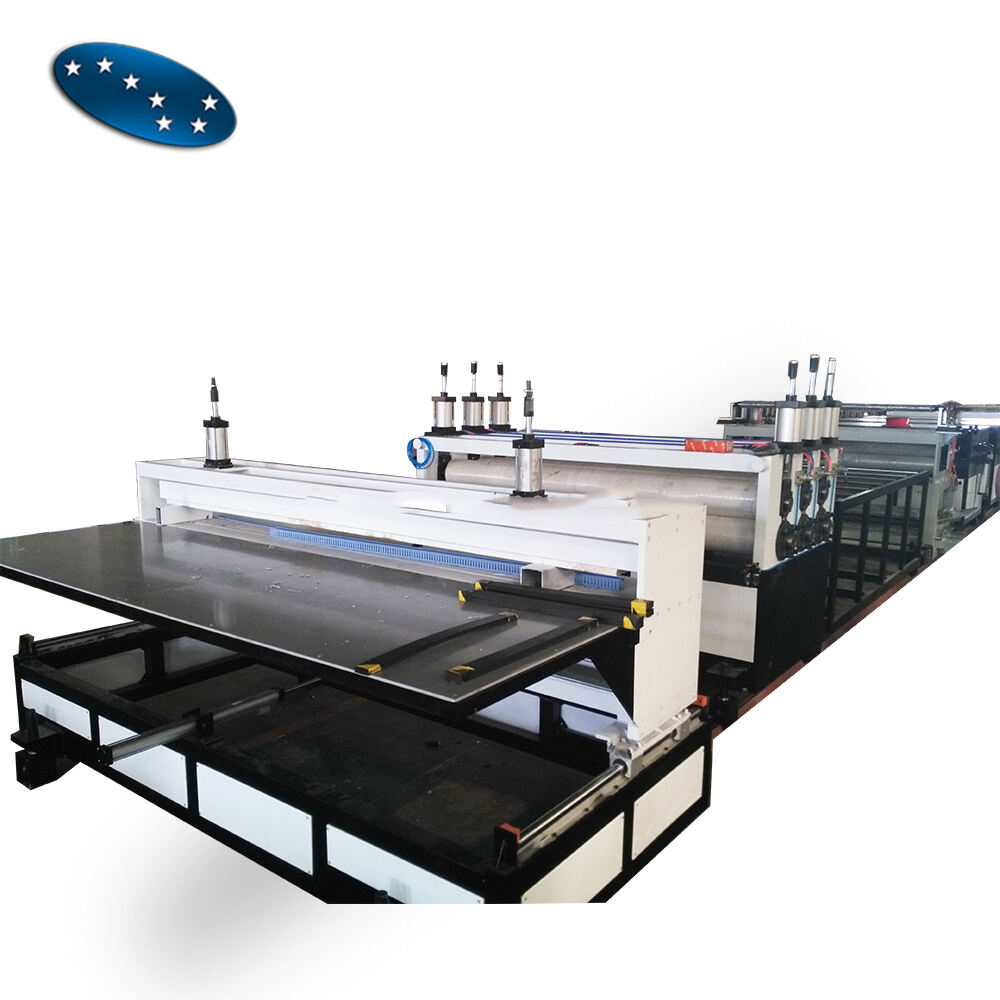

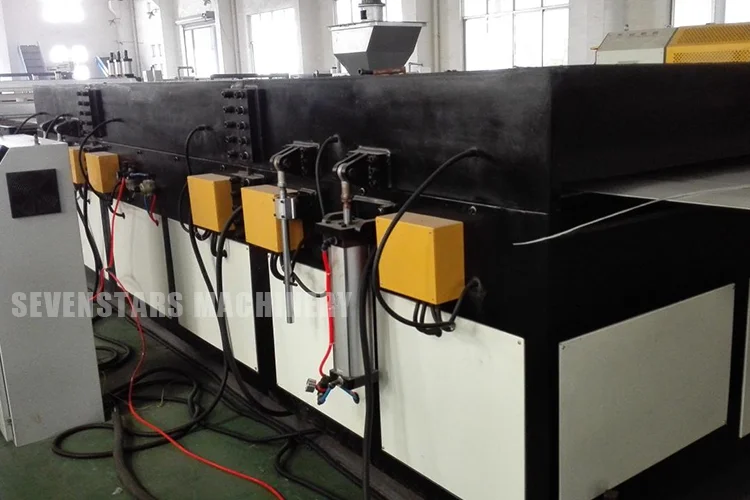

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder (depend on instrusion of the sheet)→Hydraulic screen change(optional) →melt pump → T-die →Vacuum calibrator forming machine →First hause off unit →Anneal oven →Cooling bracket →Double side Corona treatment device(optional)→Second haul off unit →Cross cutter and transmission unit→Collect table

Main Features

1. The vacuum calibrator featured with wear-resistance, dirty free and the lifting, falling and leveling for the forming plates is much easier to be controlled. 2. High speed screw, low energy consumption with high rotation speed to match gear pump and stable pressure; output capacity is 25% higher than other brand extrusion lines. because of special design of forming plates. 3. Special designed cooling system for all section of forming plates, and unique designed vacuum system for each section of forming plate. 4. Special designed temperature control oven with cross heat shrink forming, which is much easier to be controlled than other brand extrusion lines. 5. The softness of pull rolls could be customized on request to extend its stretch. 6. The air capacity of hollow sheet and low pressure could be adjusted and controlled slightly, which is easily to be controlled than any other brand extrusion lines. 7. Unique T-Die made by JC Times is specially designed for PP hollow sheet. The thickness of hollow sheet could be from 2mm to 10 mm with twin-wall. The ribbed between walls could be rectangular and diagonal shape. 8. Anti-UV co-extrusion layer could be one sided or two sided, outer surfaces could be sandy or glossy according to configuration requirement. High percentage of recycled flakes could be mixed with the virgin materials

1200mm PP/PE Hollow Sheet Board Advertisement board Extruder Machine manufacture

Specification

Extruder	SJ100	SJ120	SJ150
Max Sheet Width	1220mm	2100mm	2800mm
Sheet thickness	2-10mm	2-25mm	2-25mm
Max output	200kg/h	350kg/h	600kg
Extruder motor power	75KW	132KW	185KW
