PVC edge banding making machine

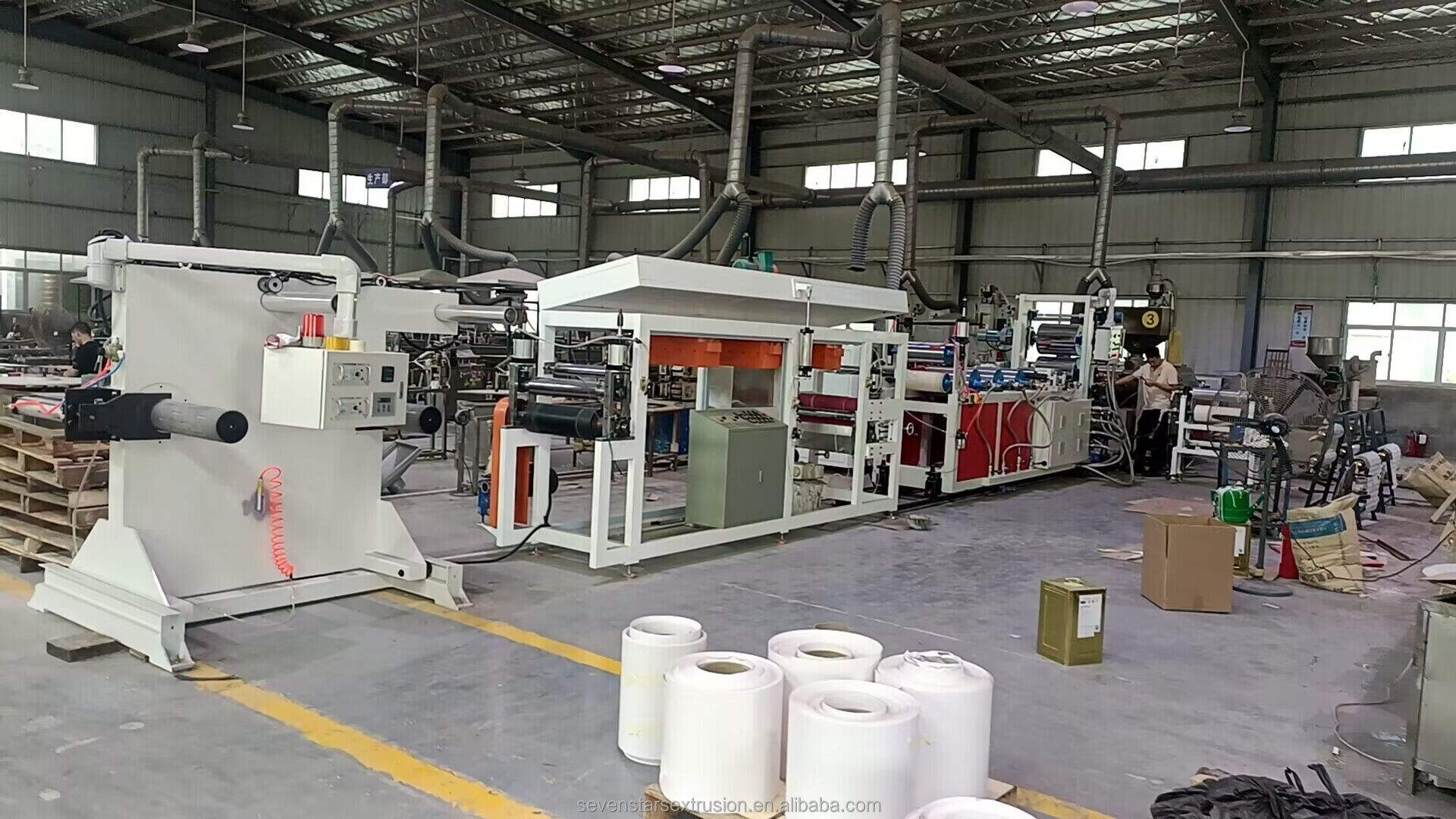

Compared to ordinary edge banding production lines, the sheet edge banding production line has higher output and better production quality. We provide a complete production line solution, including PVC raw material mixing, sheet extrusion, subsequent printing, and slitting, making it your best choice

Specification

Model	SJSZ48(50)	SJSZ55	SJSZ65	SJSZ80
Main power(kw)	15	22	37	55
Product width(mm)	200-300	200-600	250-600	400-800
Total Power(kw)	37	47	66	90
Output capacity(kg/h)	110-160	120-190	150-210	180-400
Length of line	18.5	20	21.5	24
Air compression(mpa/m3)	0.5	0.6	0.6	0.6

Detailed Images

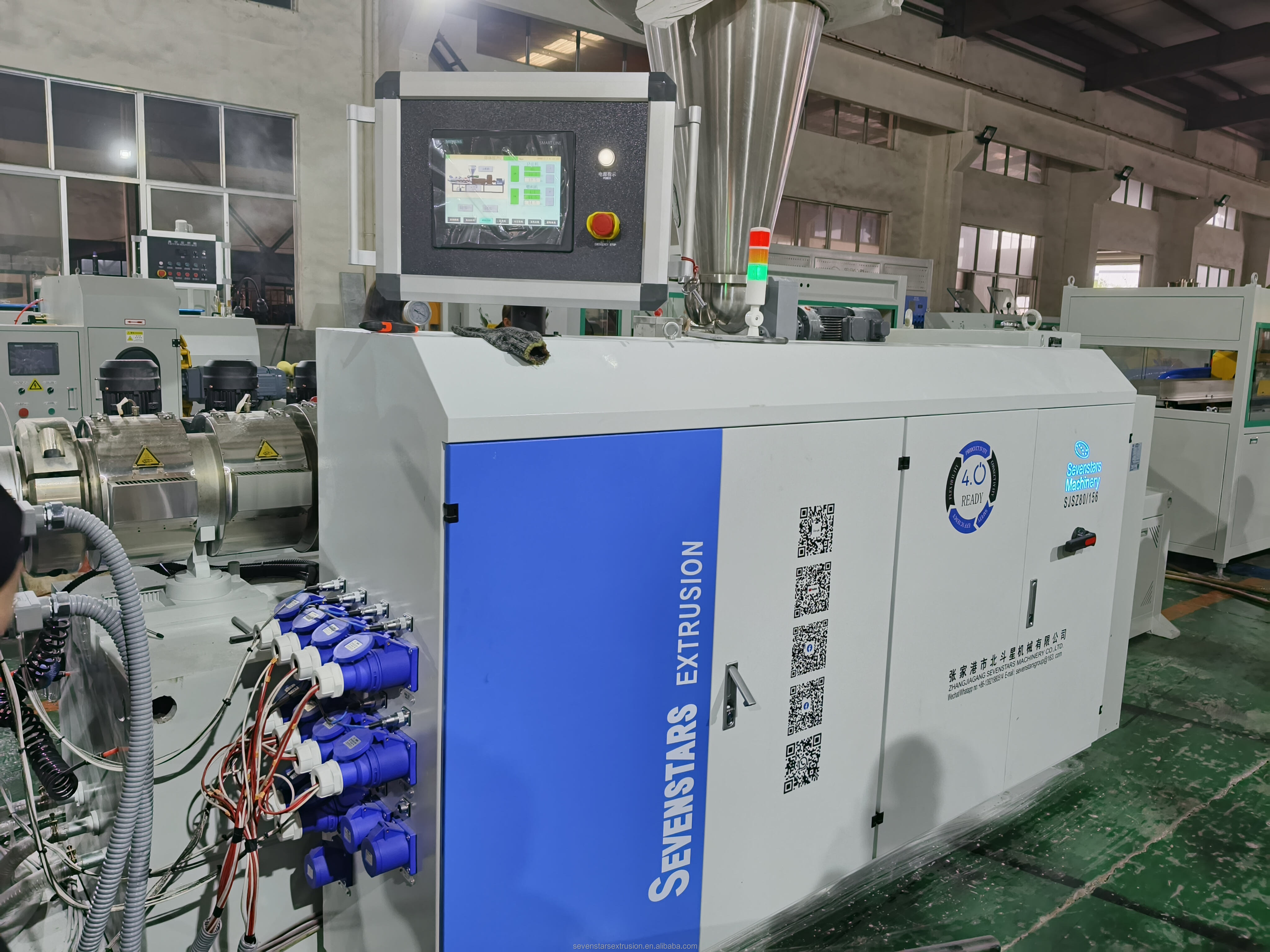

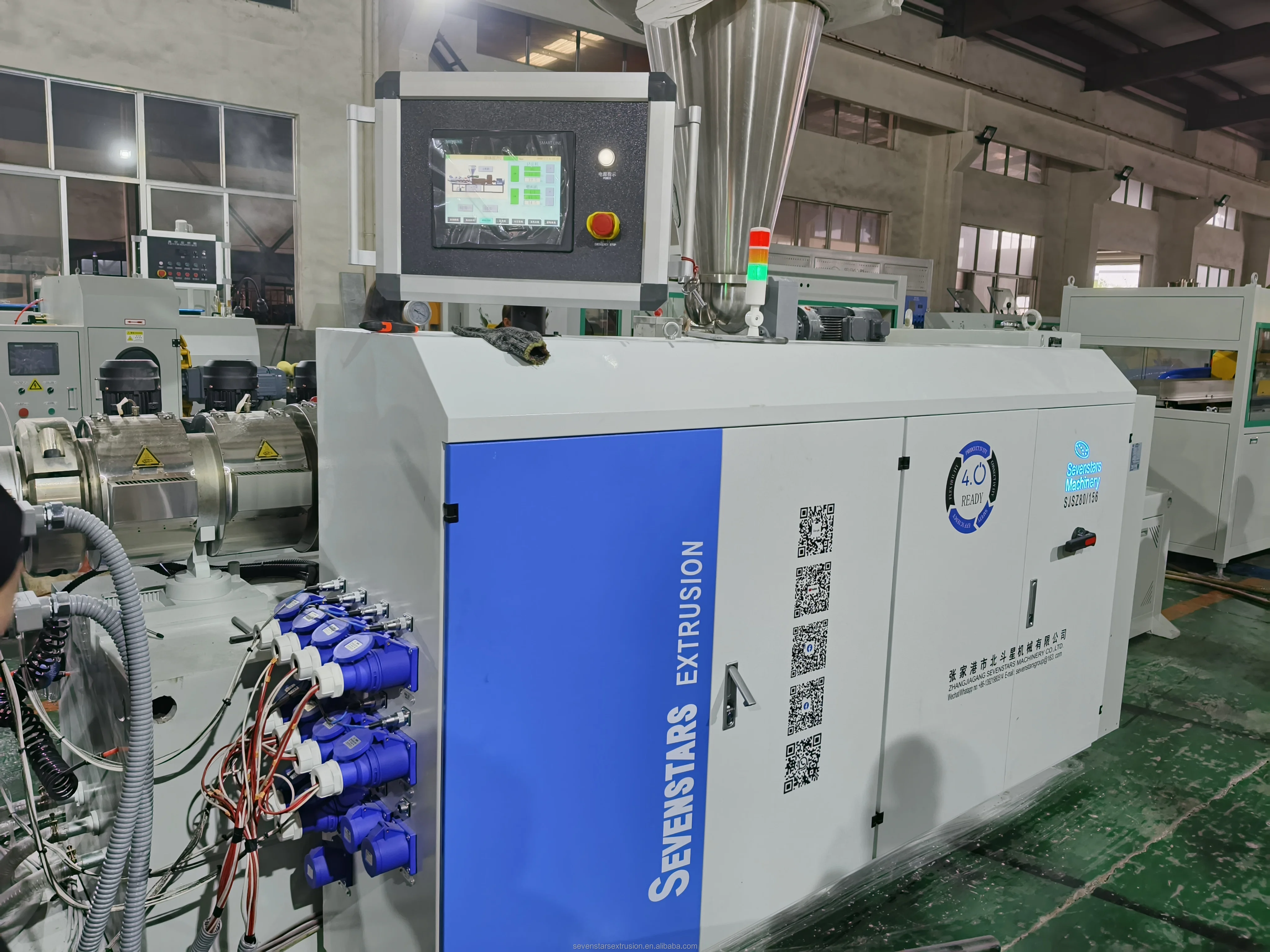

Extruder - Using wear-resistant screws to increase lifespan without reducing production

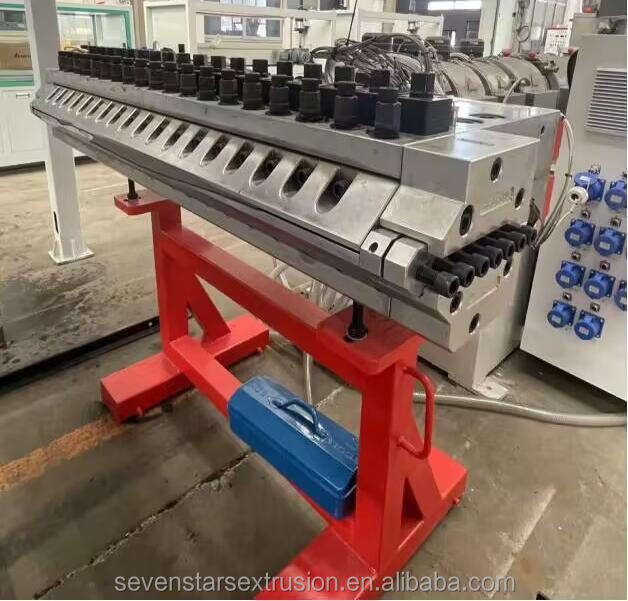

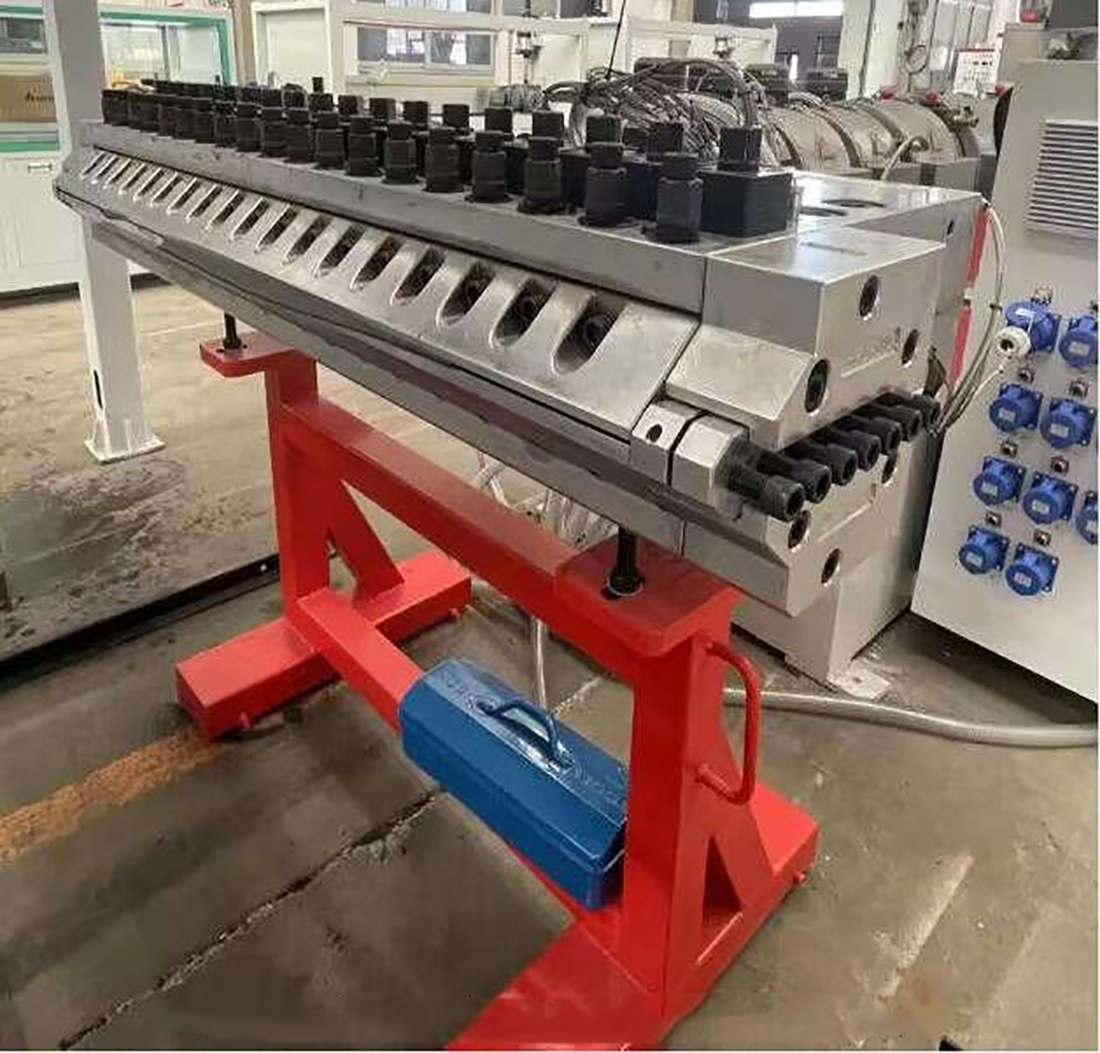

Sheet extrusion mold - Precision machining molds improve the quality of edge banding from the source, with smaller tolerances

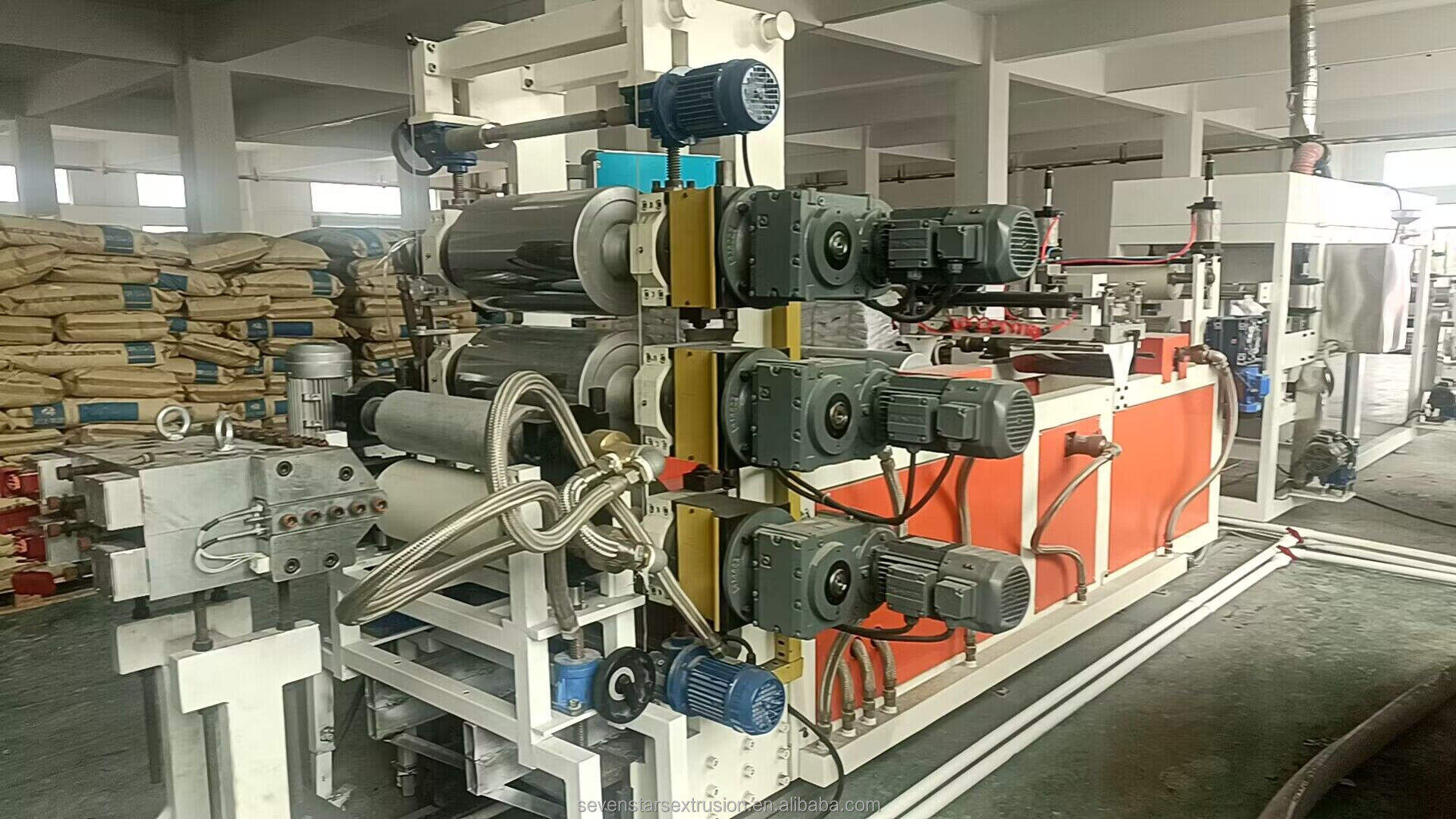

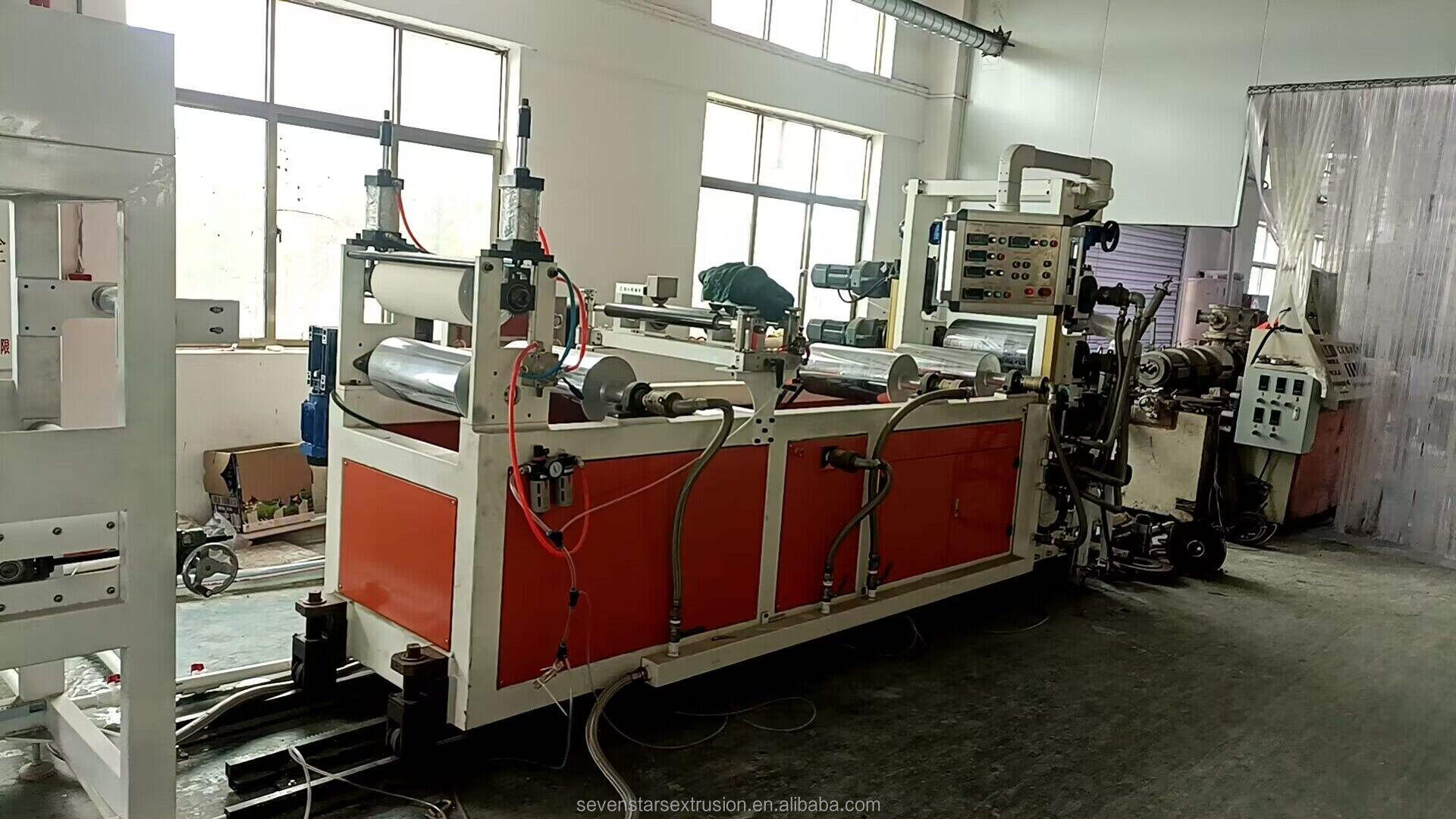

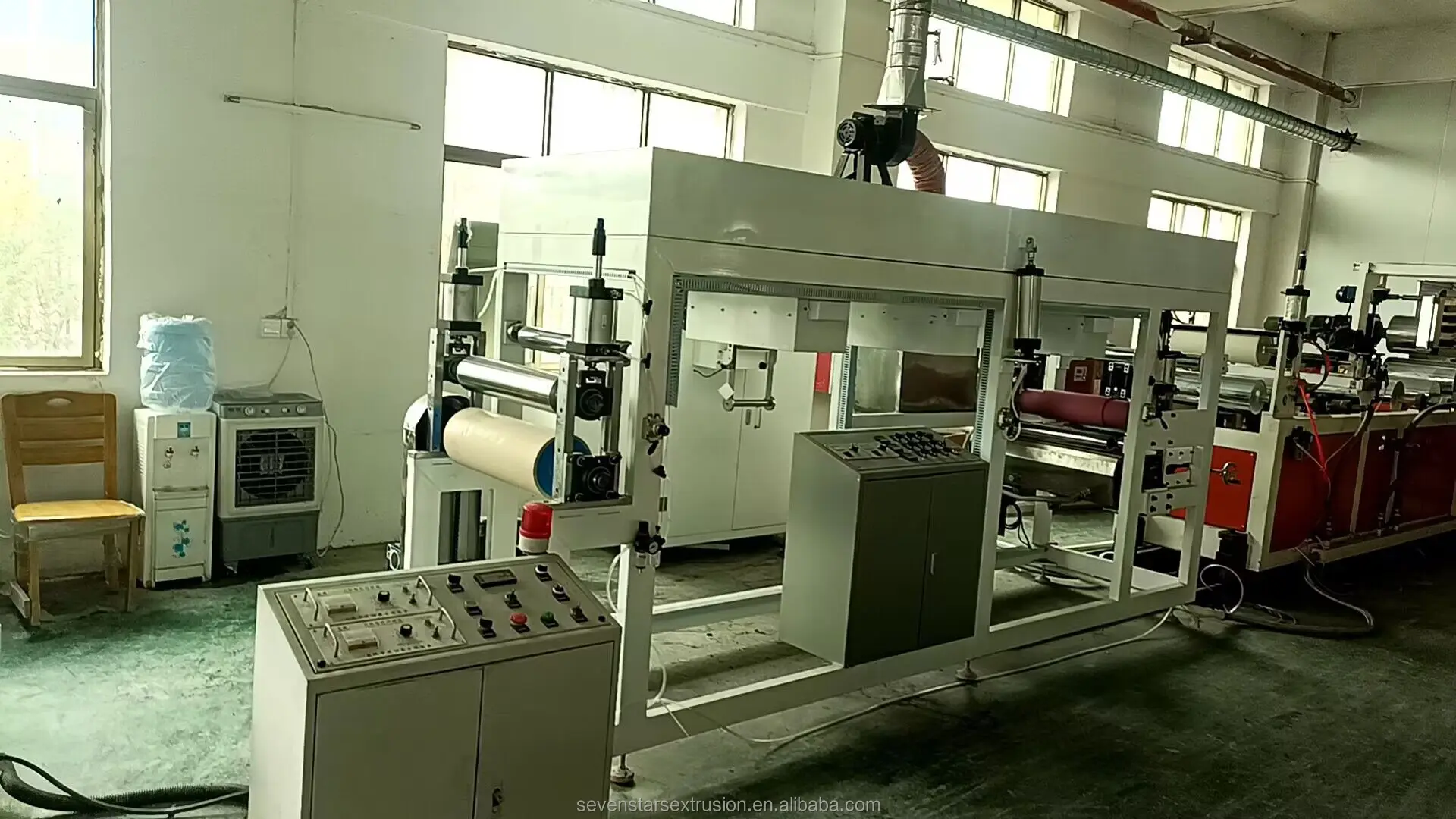

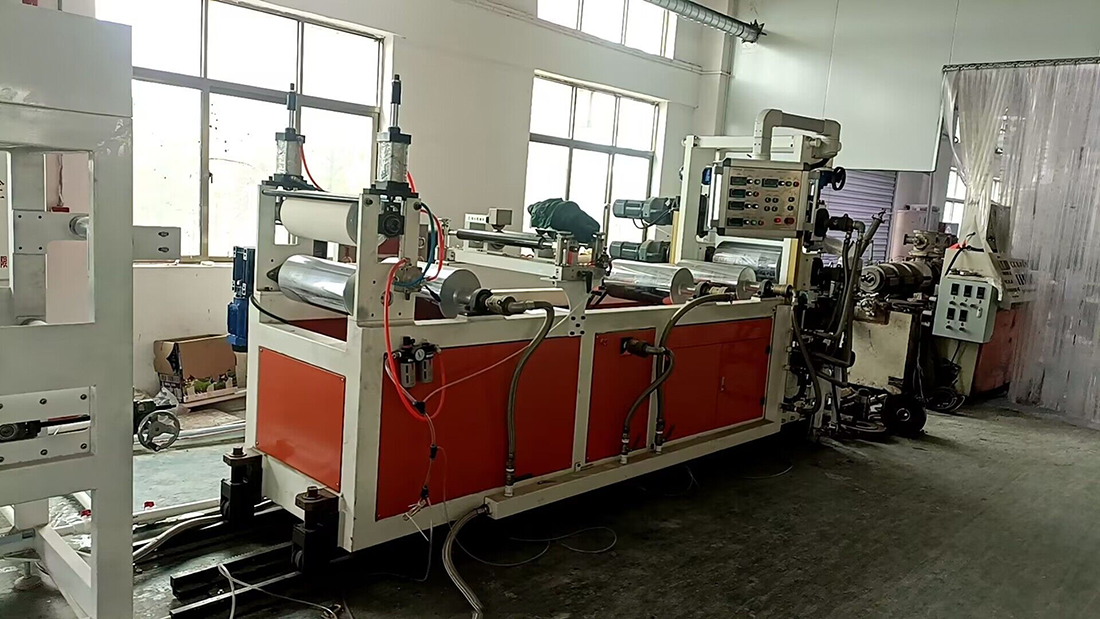

two-roller embossing machine and three-roller calender

The two stick machine can process various embossing patterns, making the edge banding more diverse. The three roll machine makes the sheet more stretchable

Cooling bracket - Using coolant cooling, rapid cooling

Rubber roller traction machine - Soft rubber rollers are used on top, which provide strong traction and will not damage the edge banding

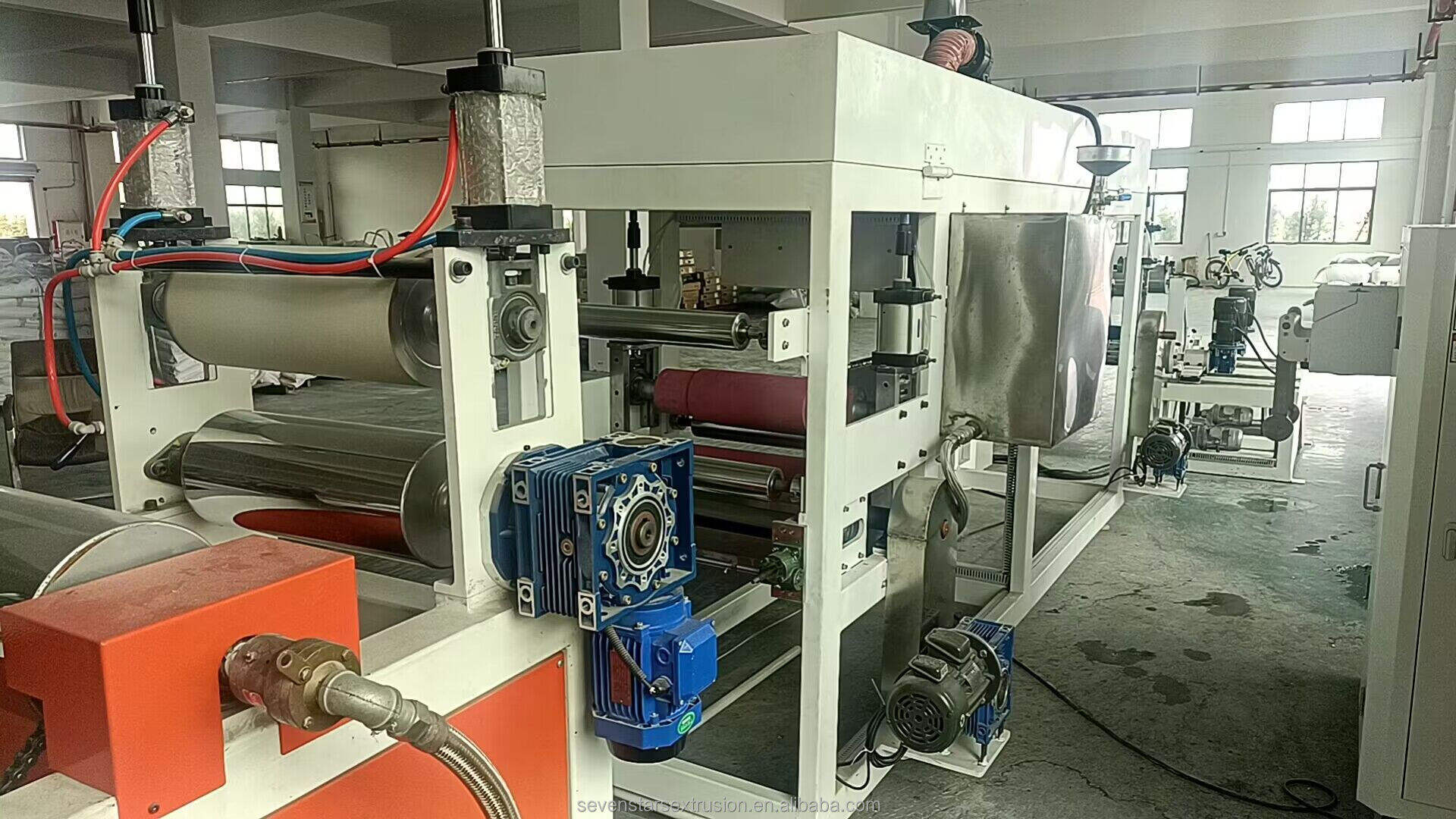

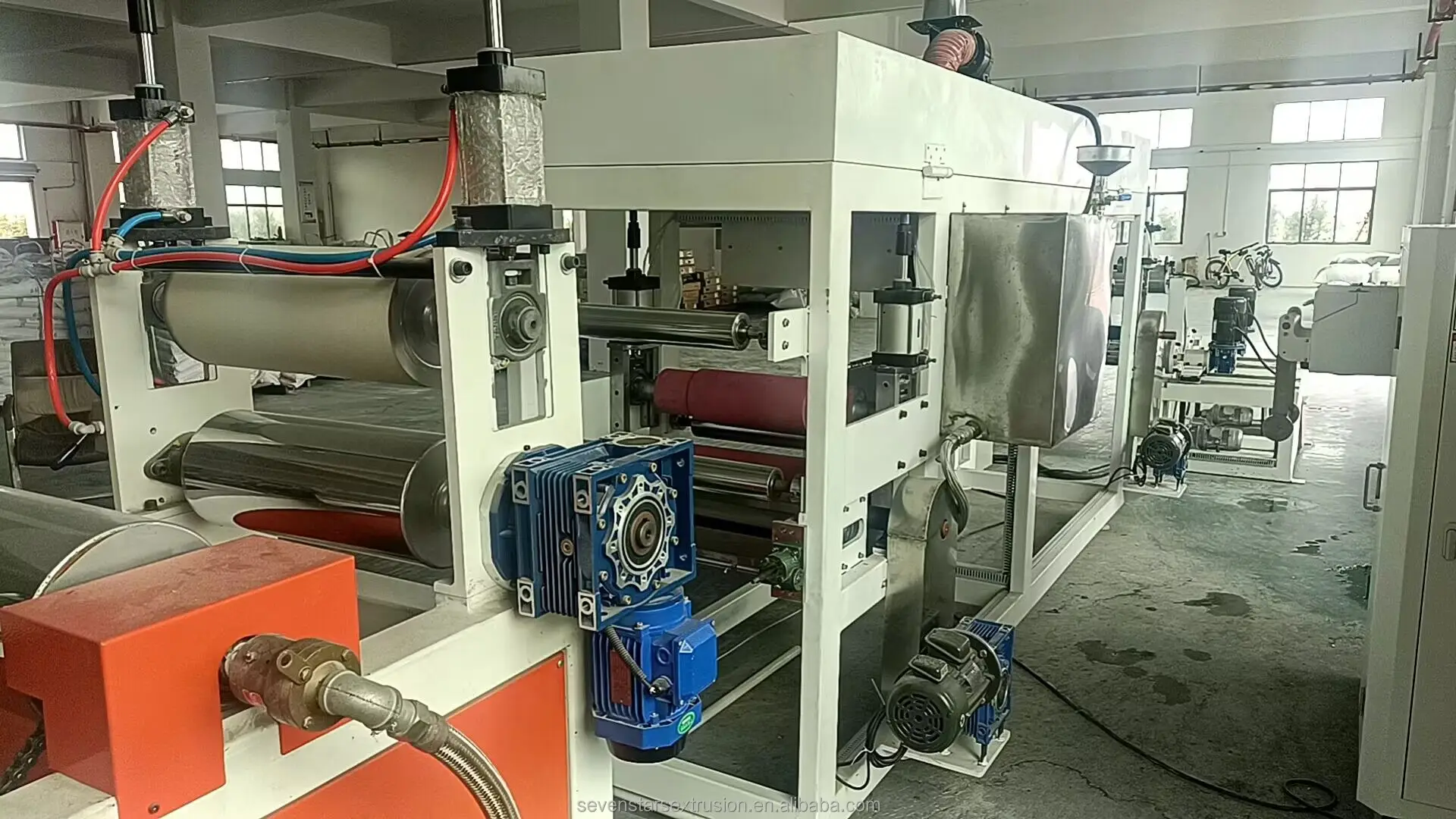

Online glue coating machine - Online processing of adhesive backing does not affect production efficiency

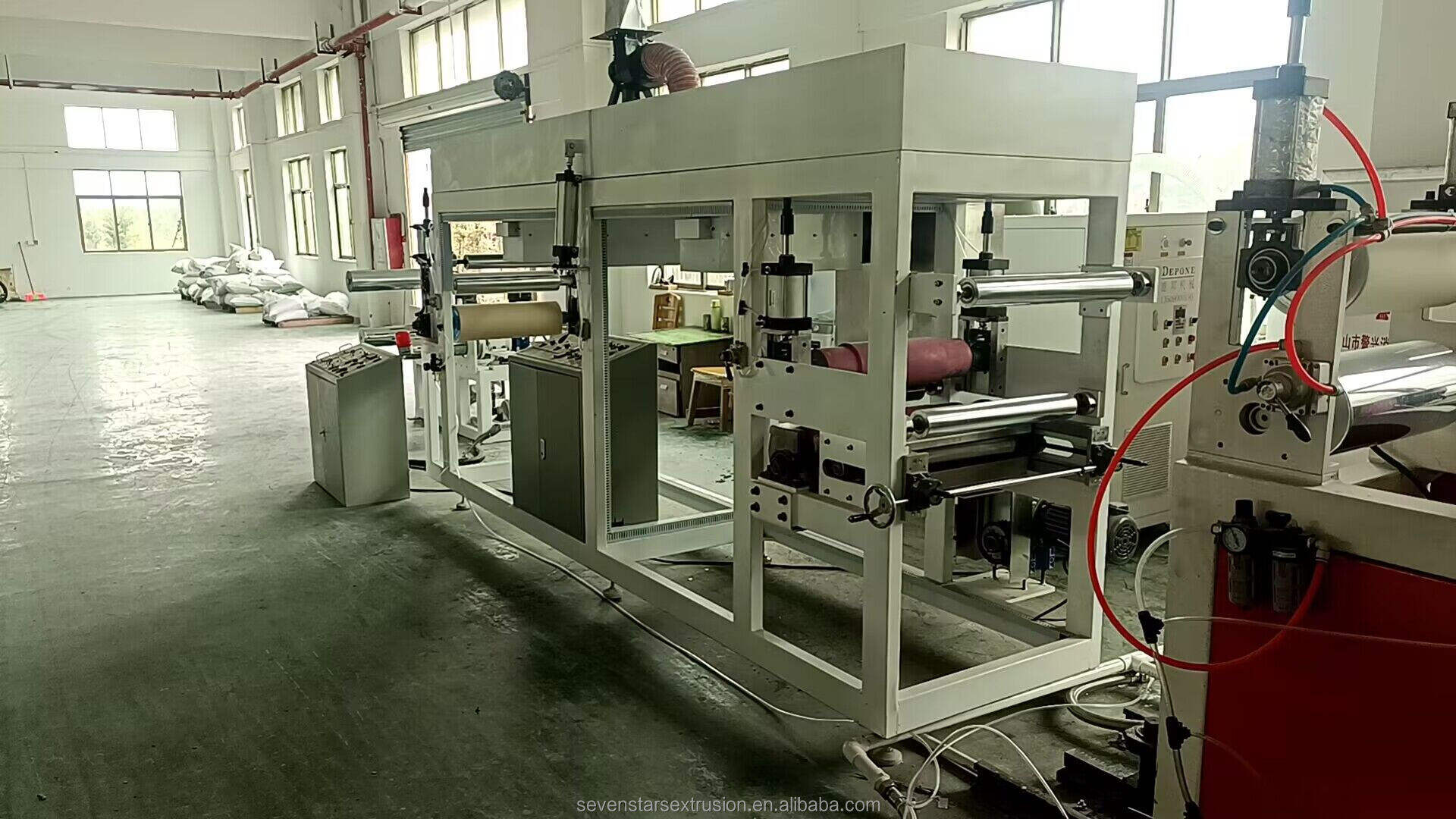

Printing line - Single color, dual color, and tri color printing options are available, and UV printing can be equipped if needed to avoid UV radiation

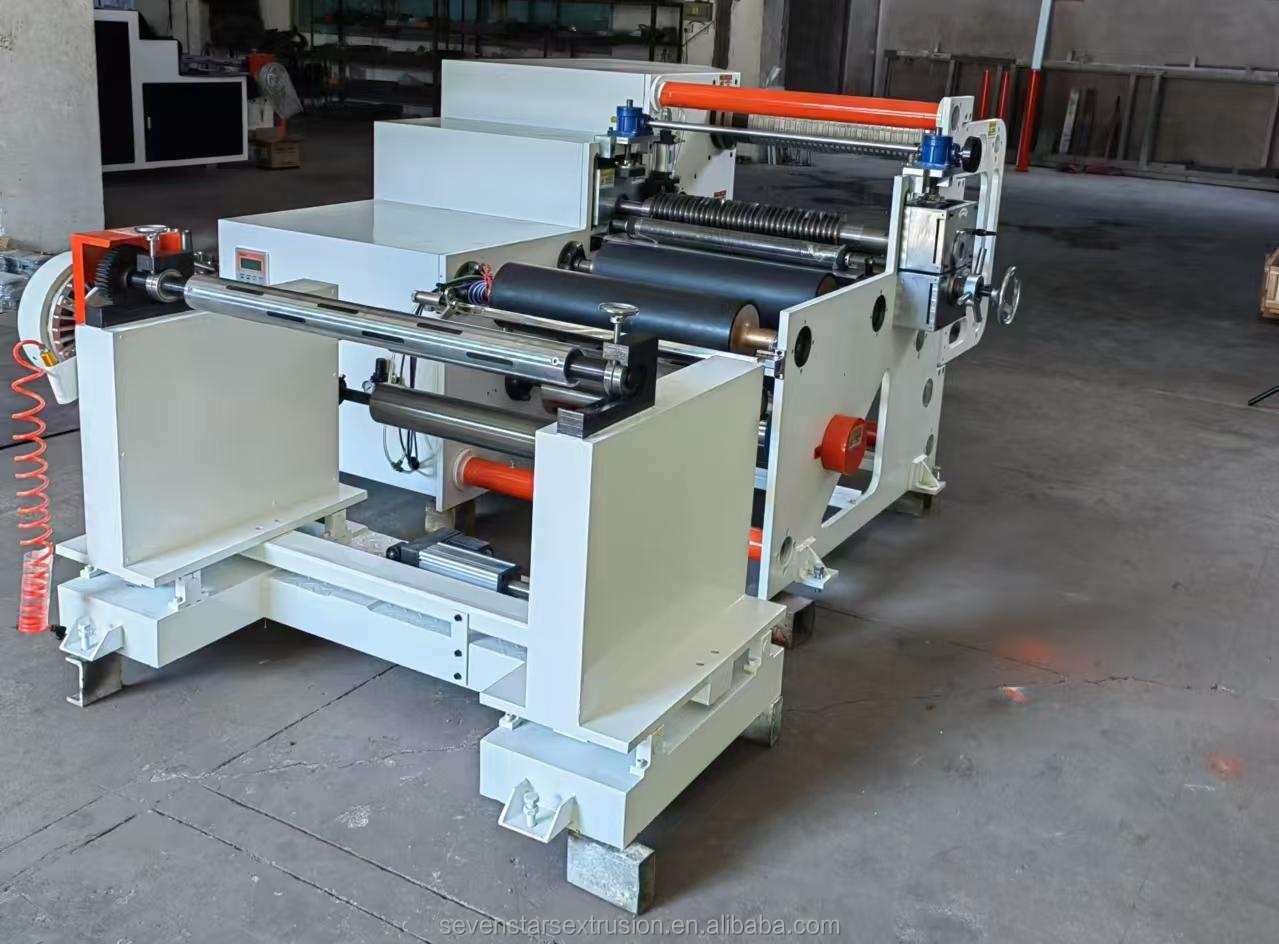

Slitting machine - Cut the sheet into strip-shaped edge banding strips, automatically unwind and rewind, saving more labor
