Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line

Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line

  • Overview
  • Inquiry
  • Recommended Products

Plastic SPC Flooring Stone Making Machine
SPC stone plastic flooring have feature on zero formal-dehyde, mildew proof, moisture proof, fire resistance, moth proof and easy installation and so on. With excellent stability and durability, SPC flooring have solved the problem of nature wood flooring deformation problems, but also solve the formal-dehyde problem of other decorative materials, it has many colors and patterns to choose, which suitable for indoor flooring decoration in hotel and hospital shopping malls and other public places. And compared with WPC flooring, SPC stone flooring' production process is simple and cheap cost.

SPC Flooring Machines Features

1. Patent Design on base of over 10 years' sheet extrusion and lamination production experience, SPC Flooring production line will be energy saving, high efficient and stable.
2. The embossing roller replacement be easier.
3. Easy operation and maintenance and QC checking, and working with high safety
4. Compare with other companies' machine, our online lamination system make the wearing layer have better plasticization and more peel strength on product surface.
5. Pattern film and wearing film can connect, which make no waste during change winders.
6. Suitable for special SPC flooring formulation, with good performance on shrinkage and bending.
7. Equipped with embossing tracking system to make sure depth of embossing be even all the time.
8. Make special design for SPC flooring production and offer turnkey project

Specification

Item SJSZ 65/132 SJSZ 80/156 SJSZ 92/188
Screw Diameters(mm) 65mm/132mm 80mm/156mm 92mm/188mm
L/D Ratio 22:1/25:1 22:1/25:1 22:1/25:1
Output(Kg/h) 160-200 250-350 400-500
Main Driving Power(kw) 37 55 110
Heating Powder(Kw) 4 zones, 20Kw 5 zones, 38Kw 6 zones, 54Kw
Compressed air consumption(m3/h) 0.5 0.6 0.8

Technical Parameters

No Machine Name Quantity
1 Mixing Machine For PVC and Calcium powder 1 set
2 Feeding Machine For Mixing Machine 1 set
3 Automatic Feeding Machine For Extruder 1 set

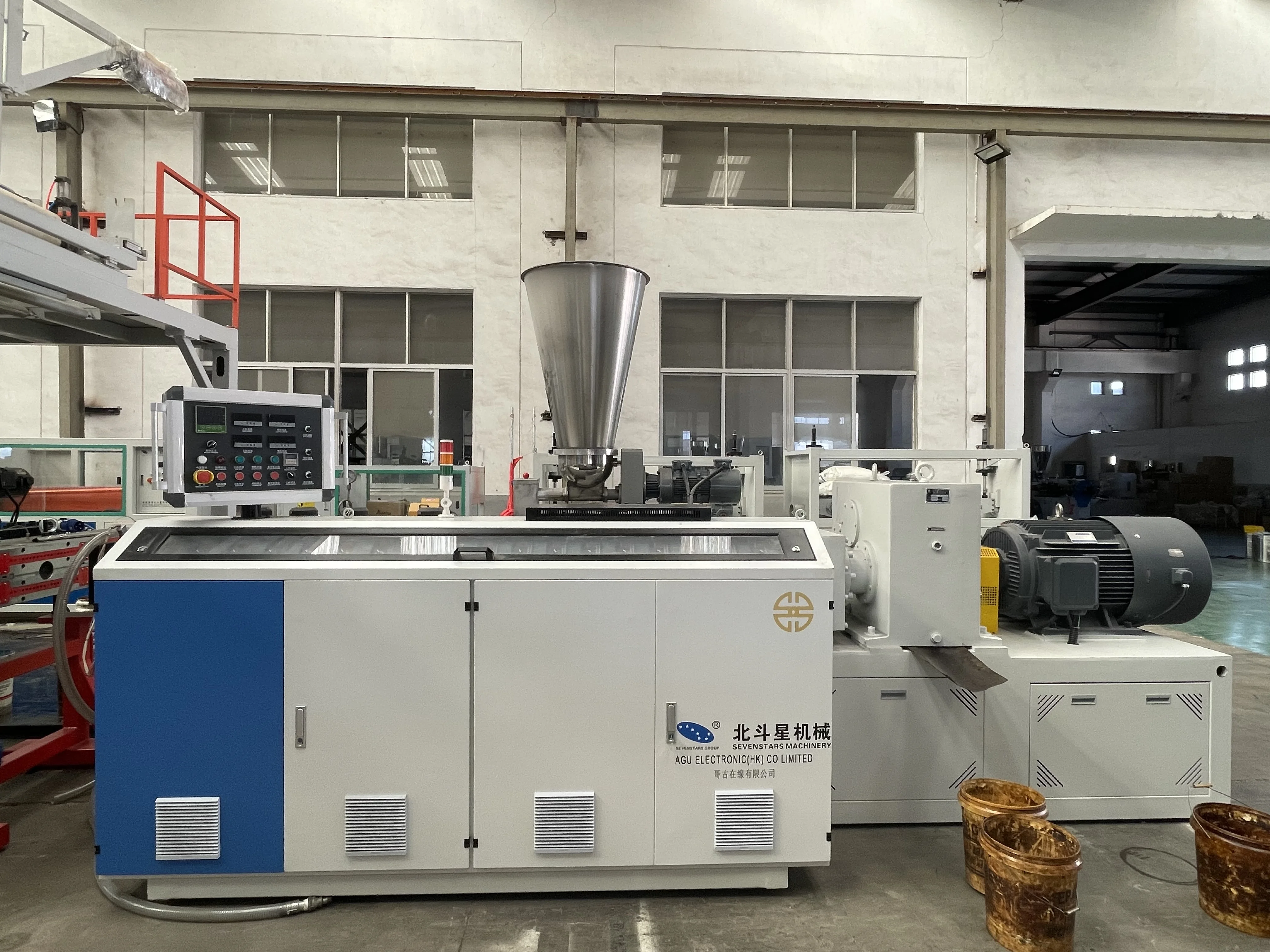

4 SJSZ 92/188 Conical Twin Screw Extruder 1 set

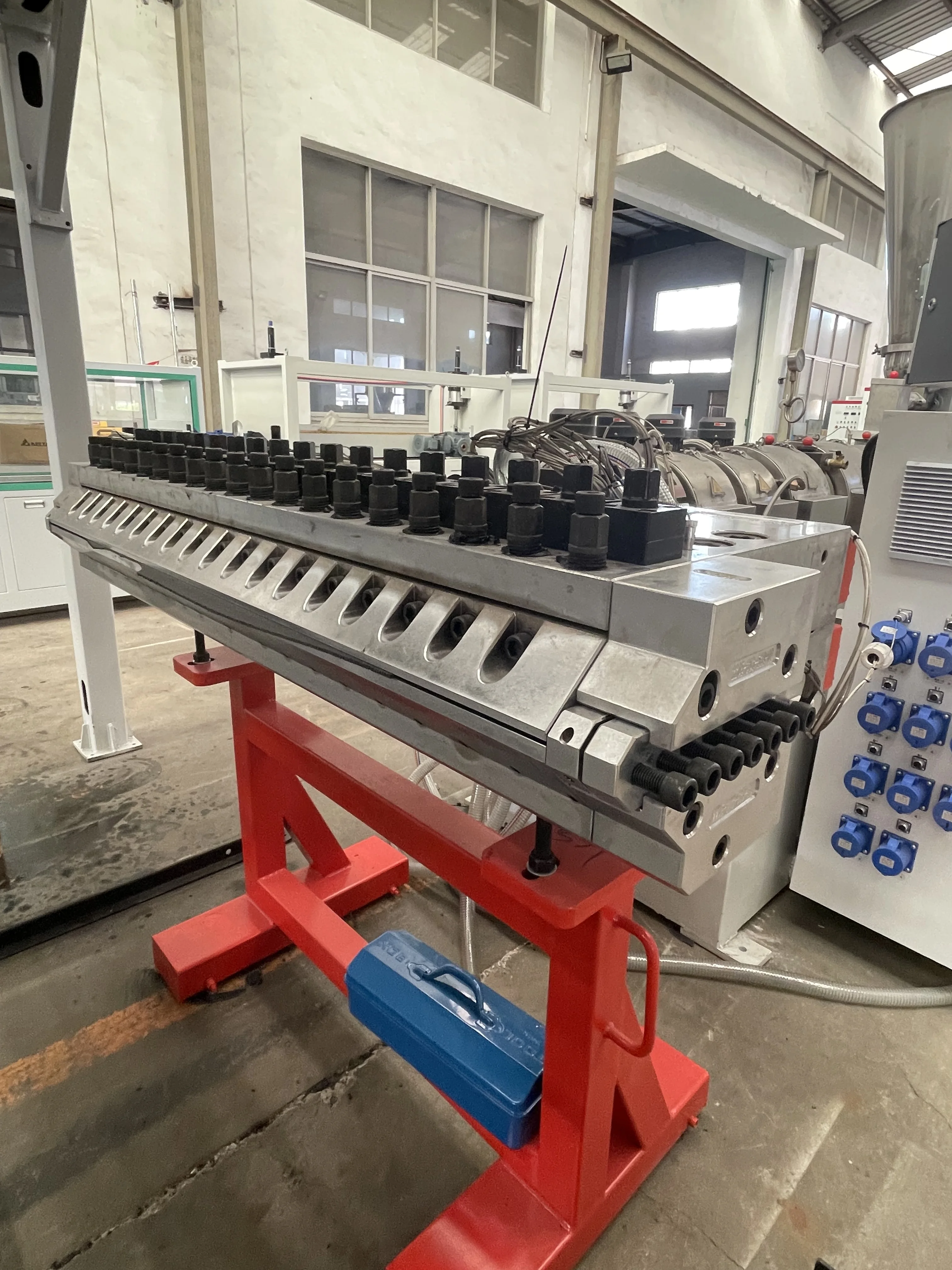

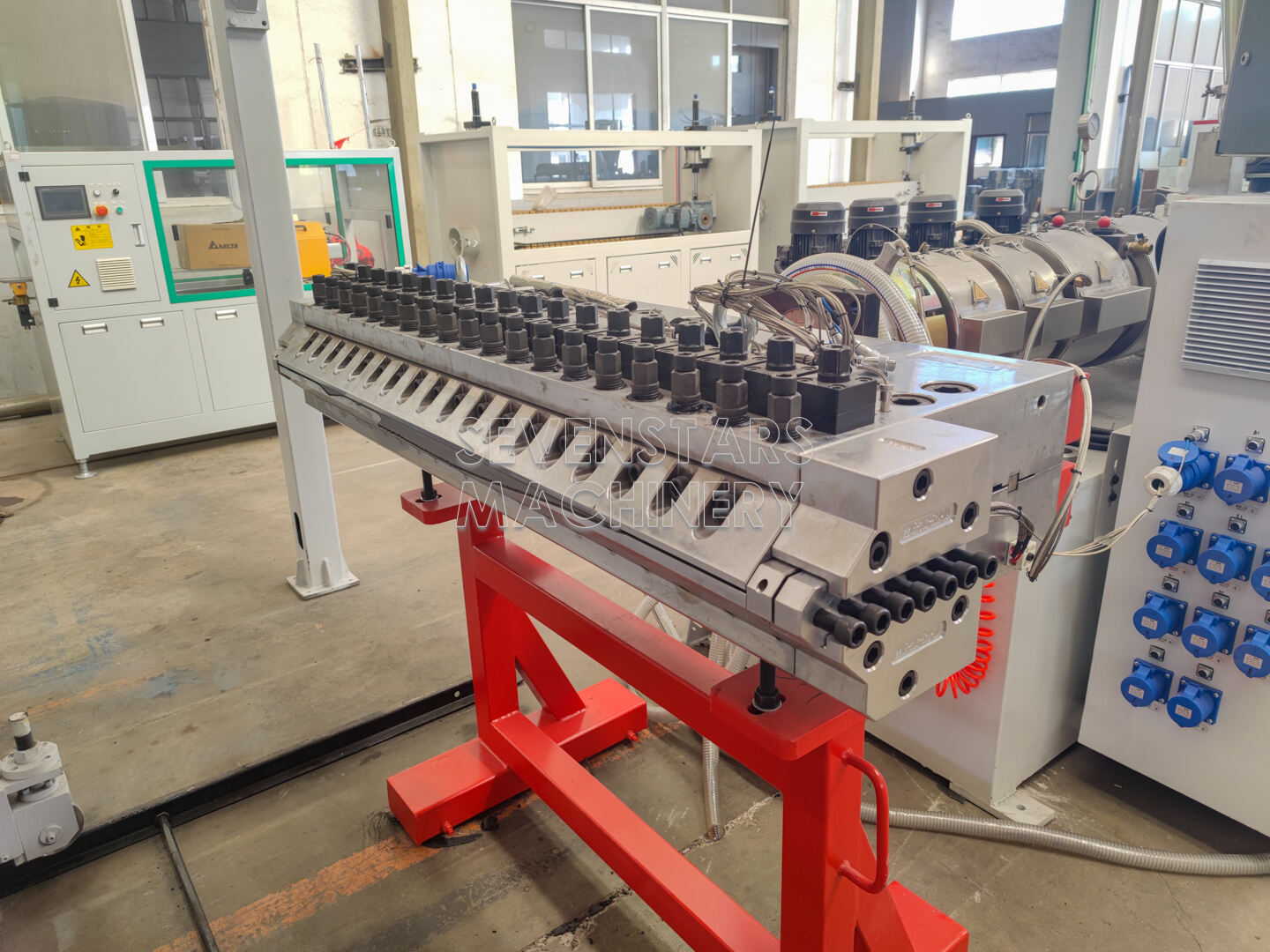

5 T-shaped Mould and Die 1 set

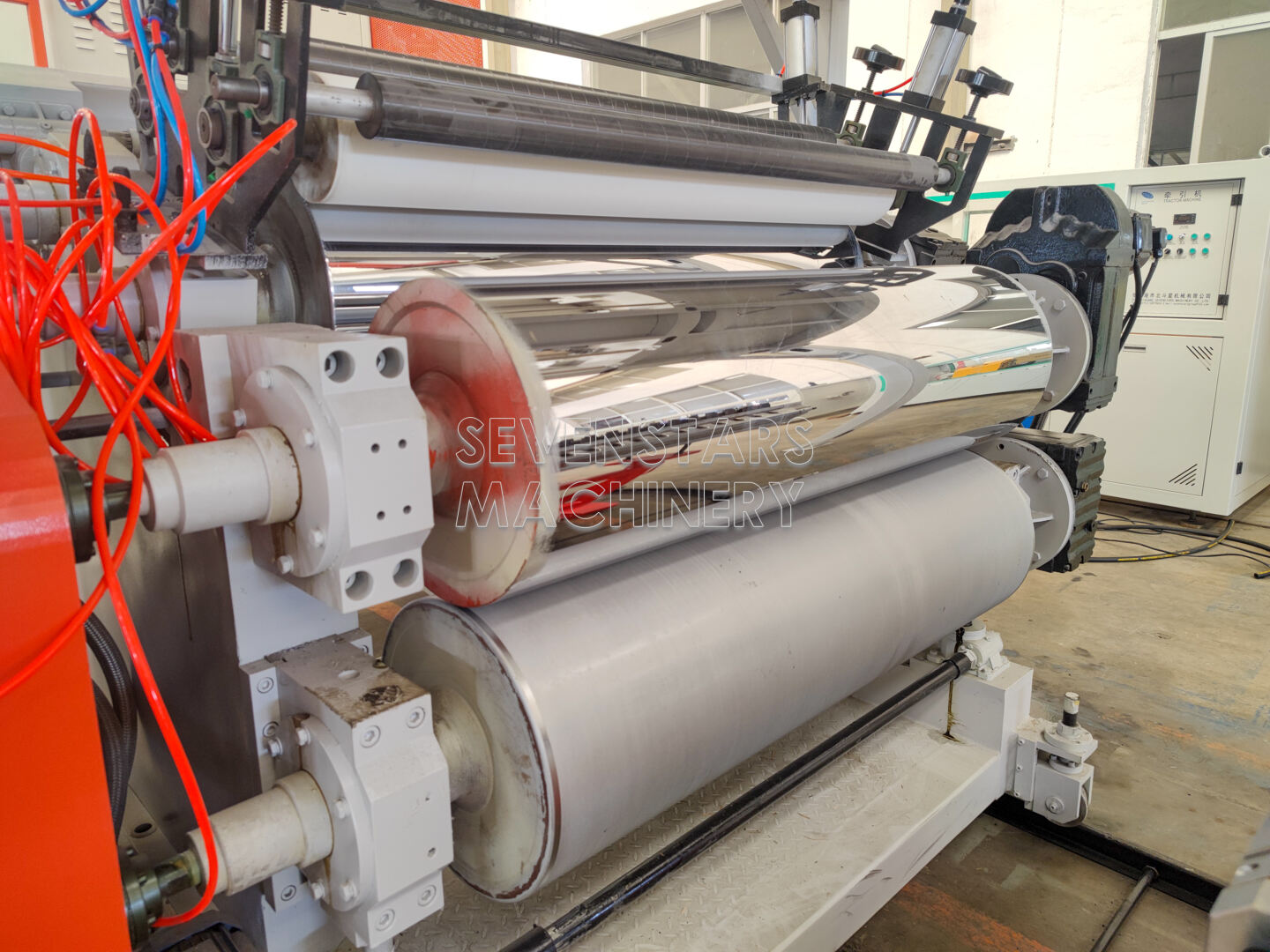

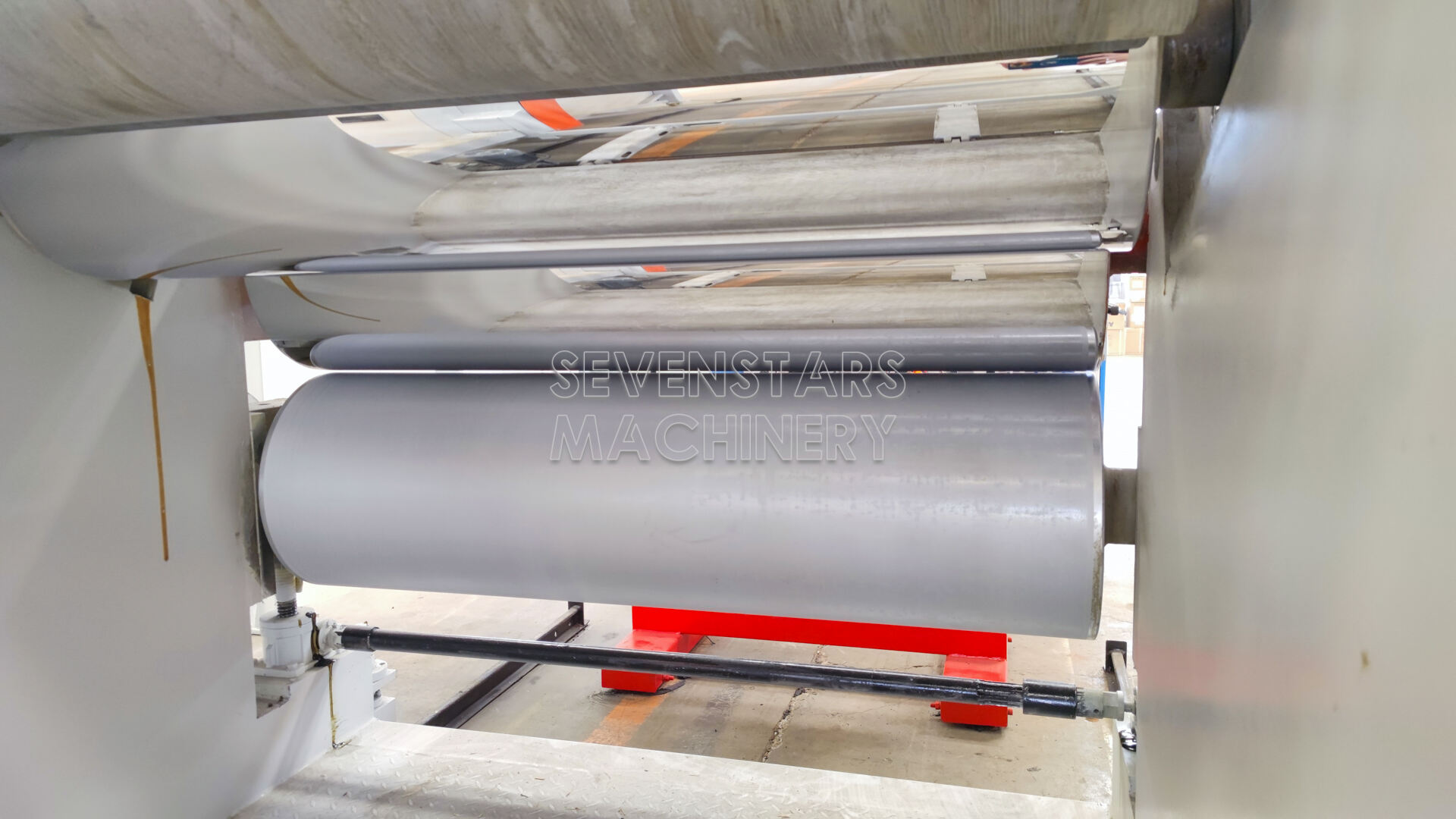

6 Four-roll Calender 1 set
7 Cooling Frame 1 set
8 Trimming Set 1 set
9 Hauling Device 1 set

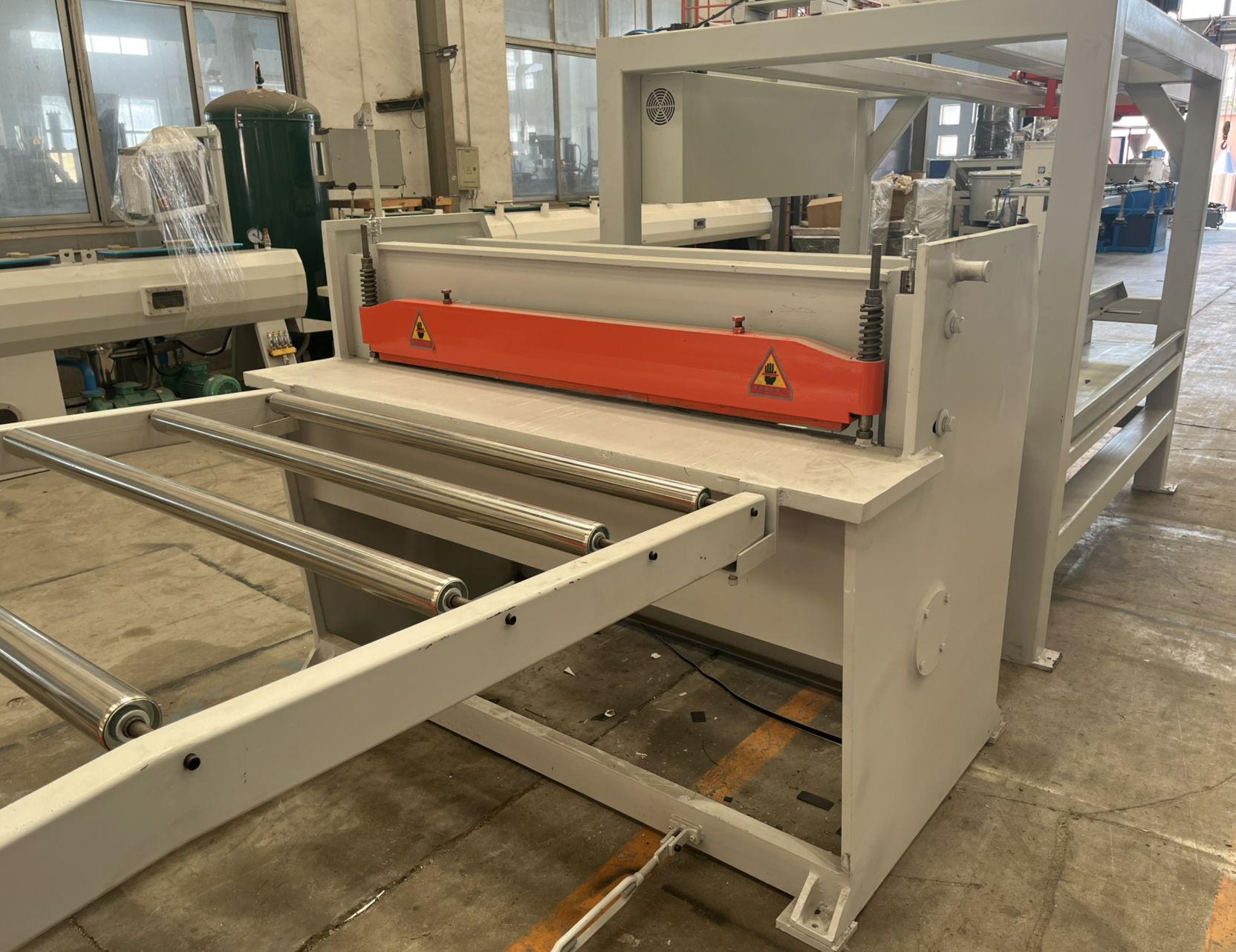

10 Automatic Cutting Machine 1 set
11 Stacking Section 1 set

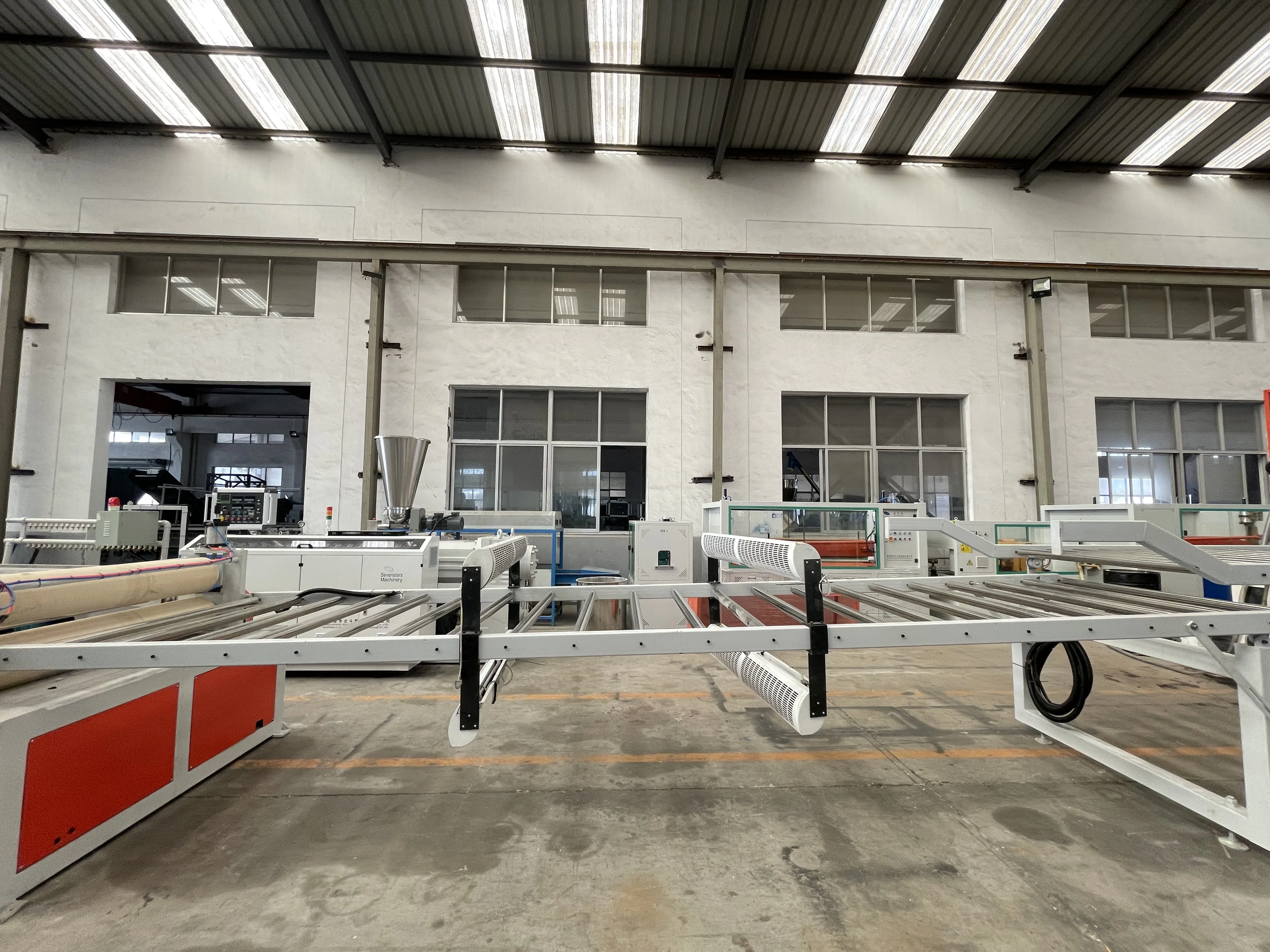

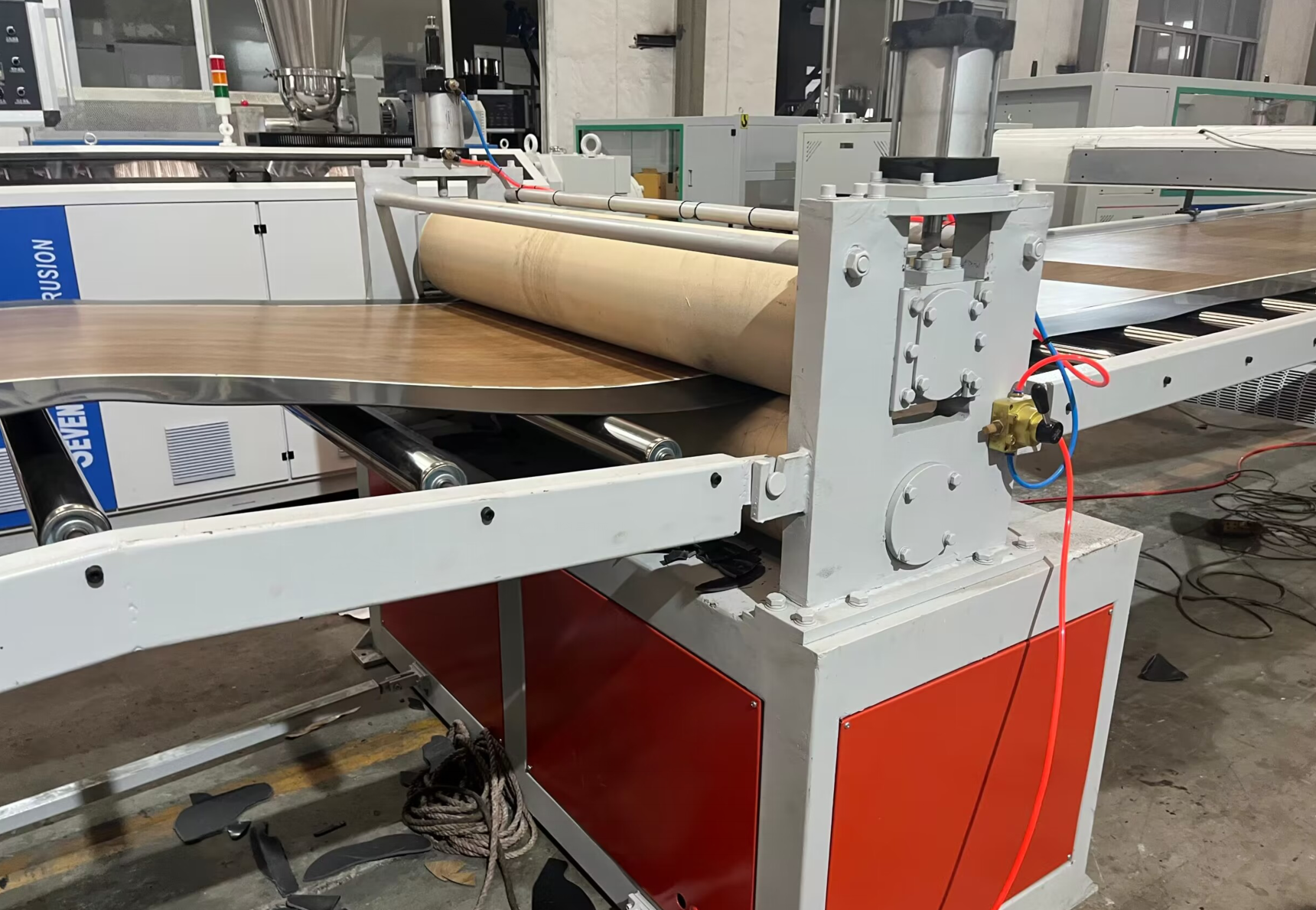

Detailed Images

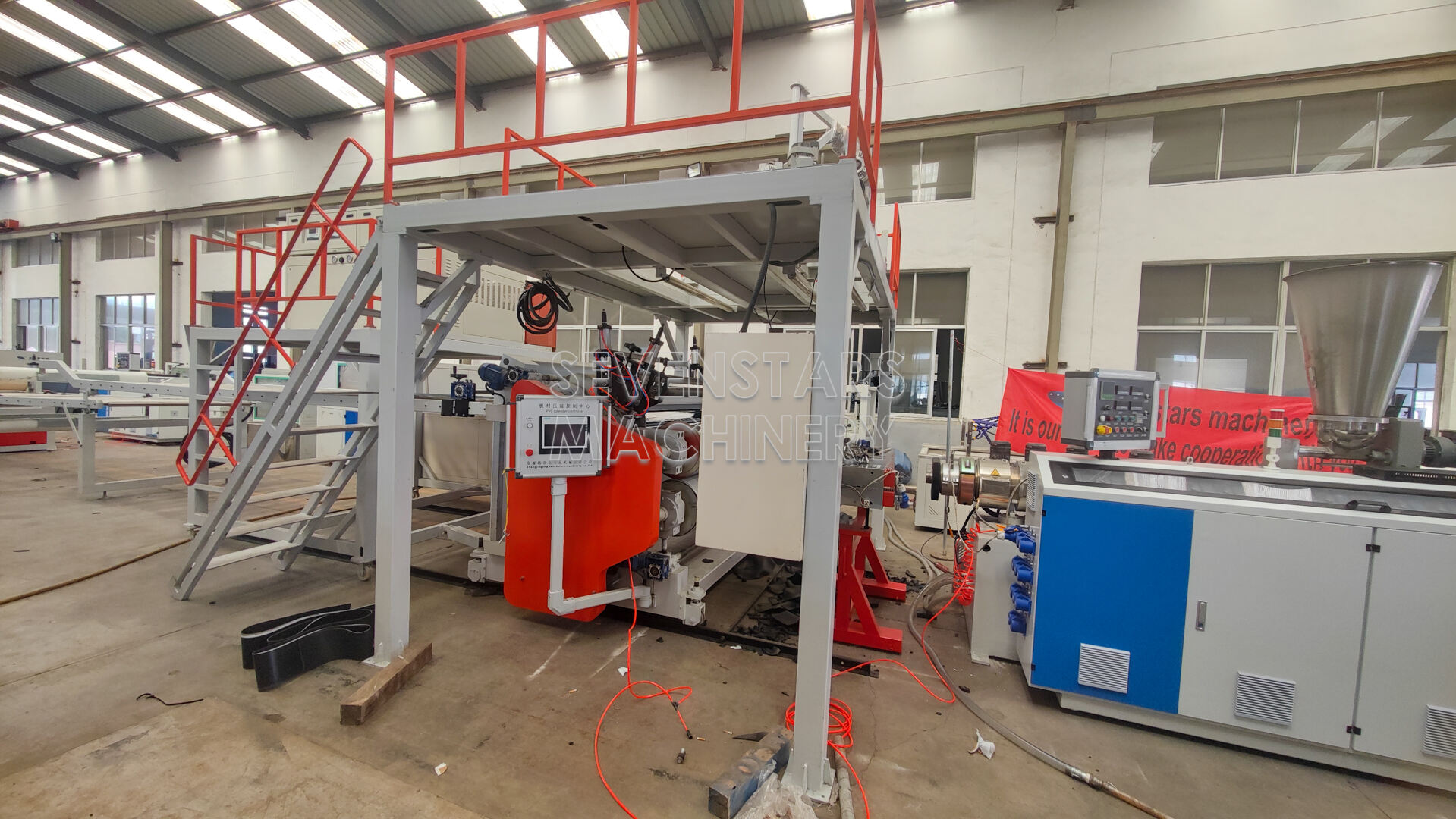

Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line supplier

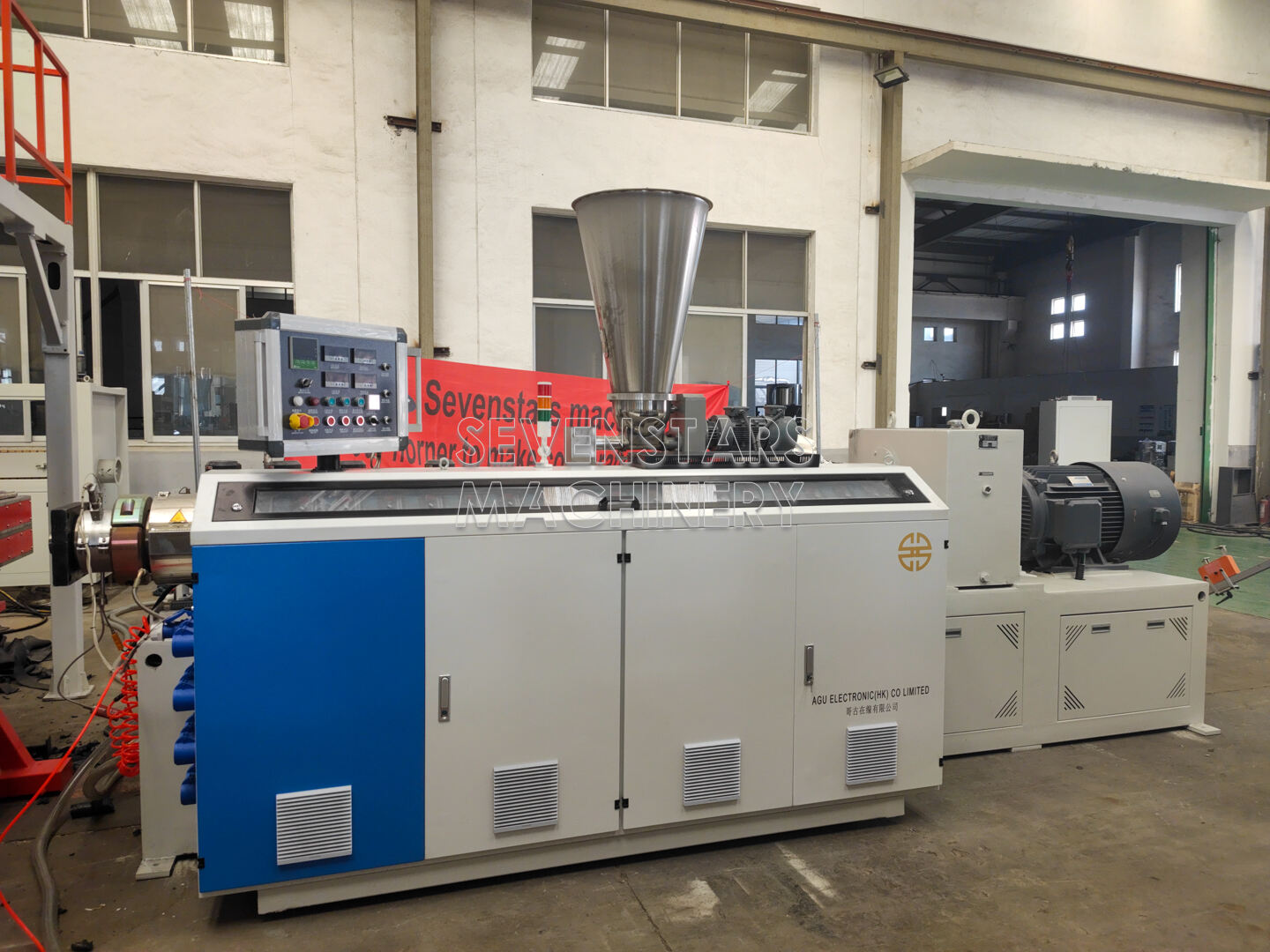

Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line supplier

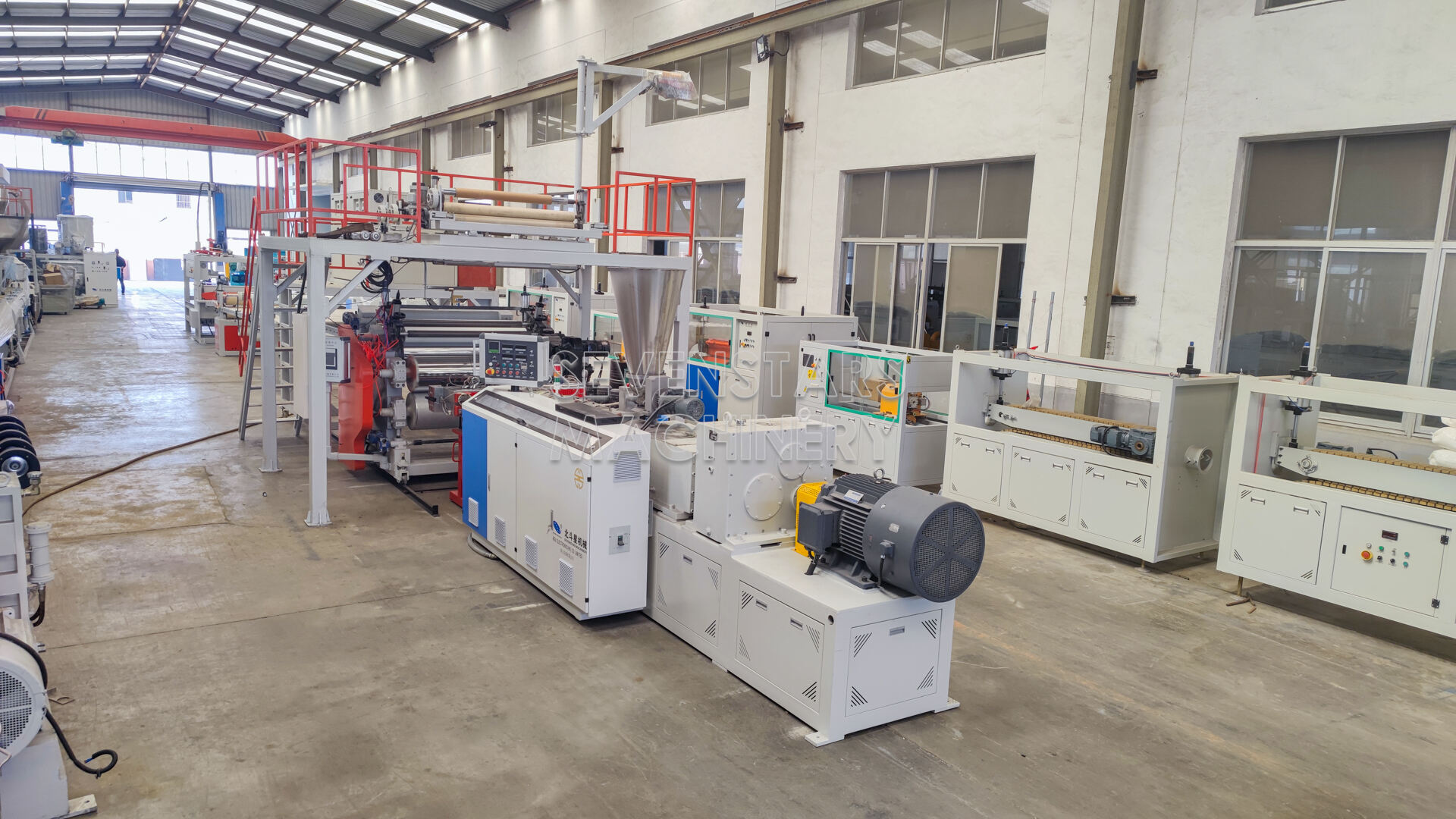

Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line supplier

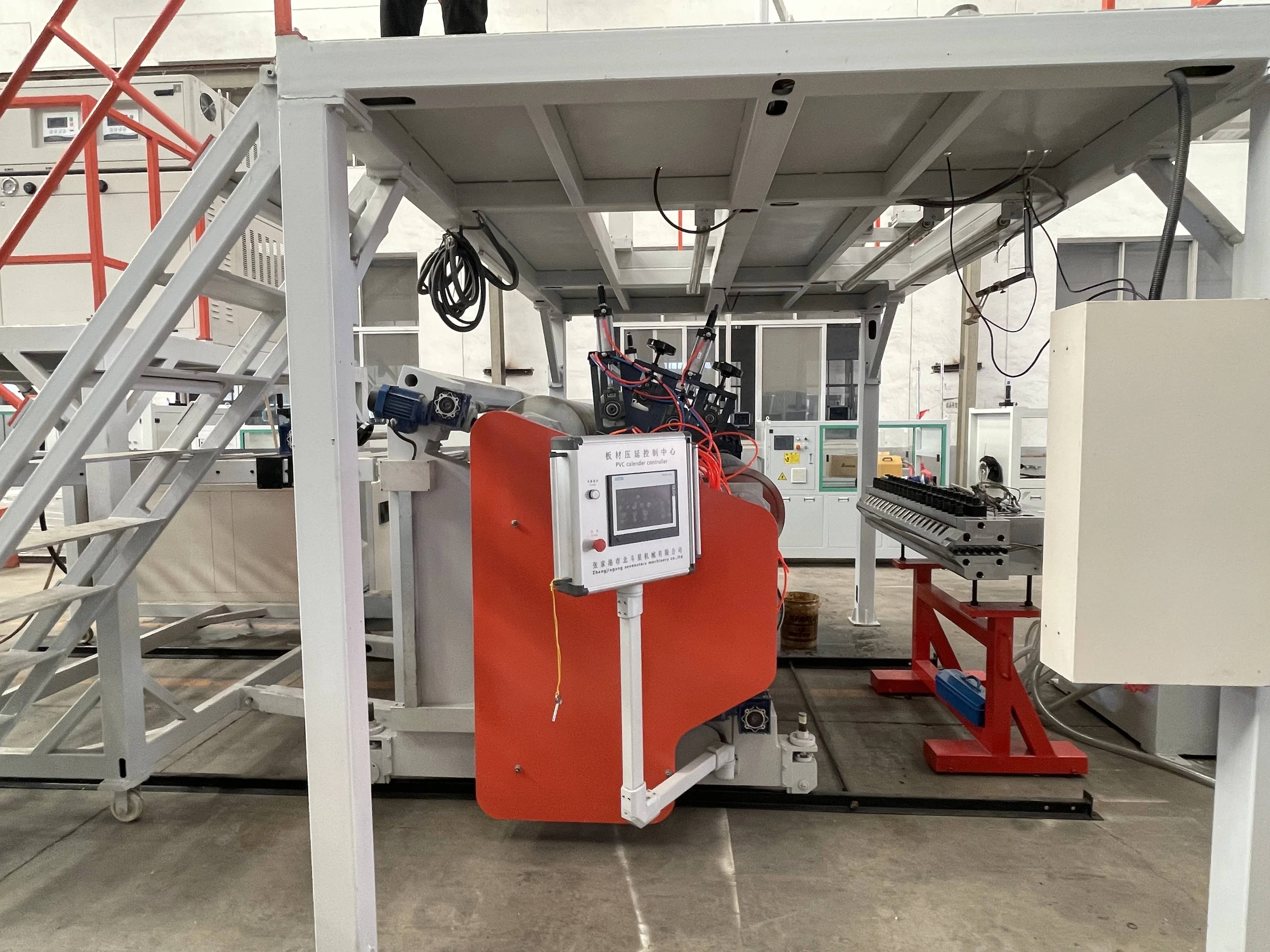

Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line factory
Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line supplier

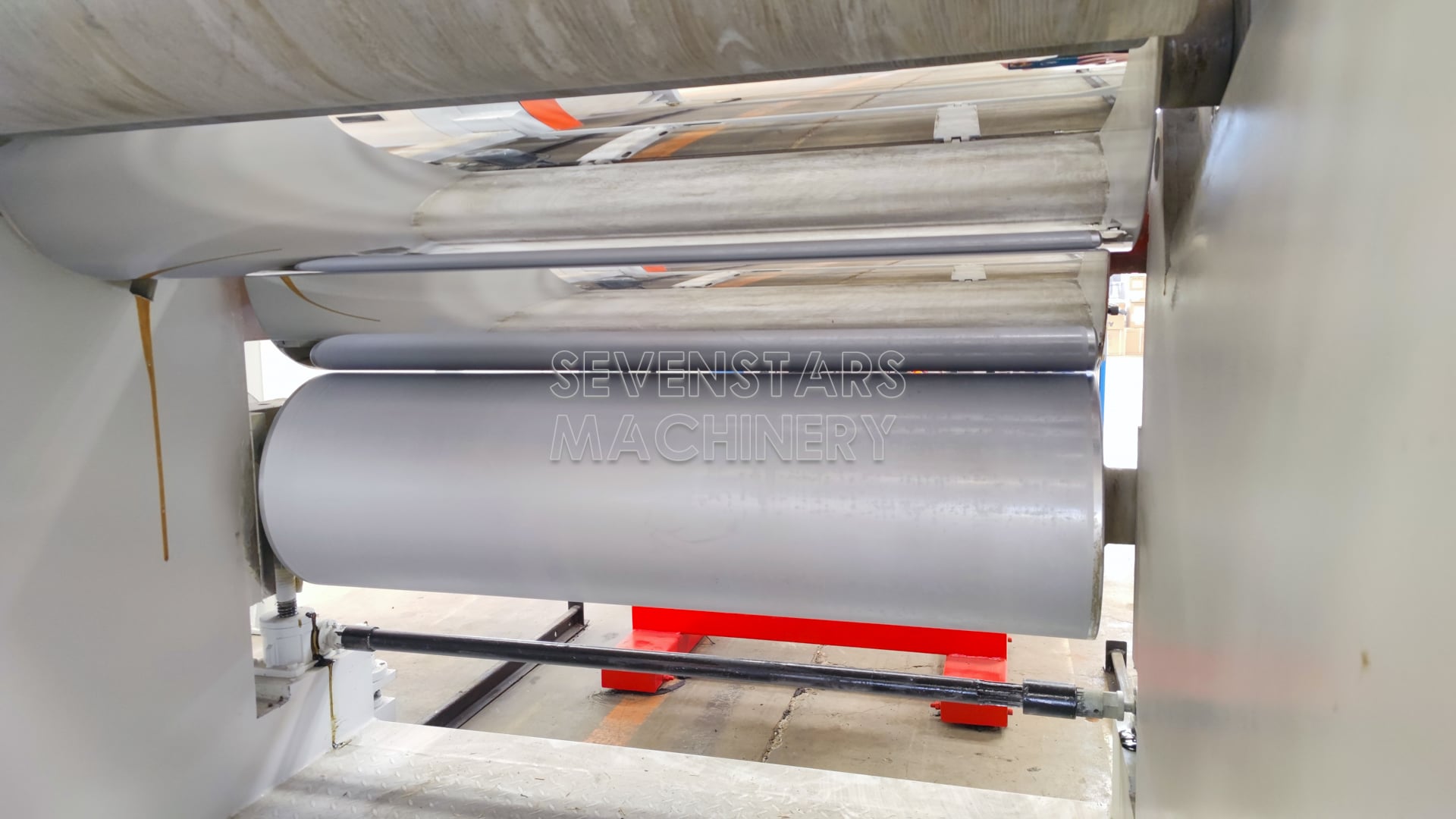

Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line factory
Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line supplier
Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line manufacture
Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line manufacture

Plastic SPC Flooring Stone Making Machine WPC SPC Floor Extrusion Line 2 Layers SPC Floor Board Production Line details
